PTB48520WAS Overview

Product belongs to the PTB48520W series. This product is categorized as Isolated Type: Isolated Module Tray is the packaging method for this product SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications 10-SMD Module Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Versatile ITE (Commercial) applications for maximum usability Number-of-Outputs: 1 Our product delivers a 25A of 50mA for efficient power management. The minimum input voltage is 36V. The 75V. This product is designed with 1.5kV (1500V) voltage isolation for maximum safety and reliability. 1.8 ~ 3.6 V output voltage Input Voltage Range: 36 V to 75 V 1.8 V to 3.6 V output voltage for channel 1 Current output of channel 1 is 25 A . SMD Module package-case-size

PTB48520WAS Image

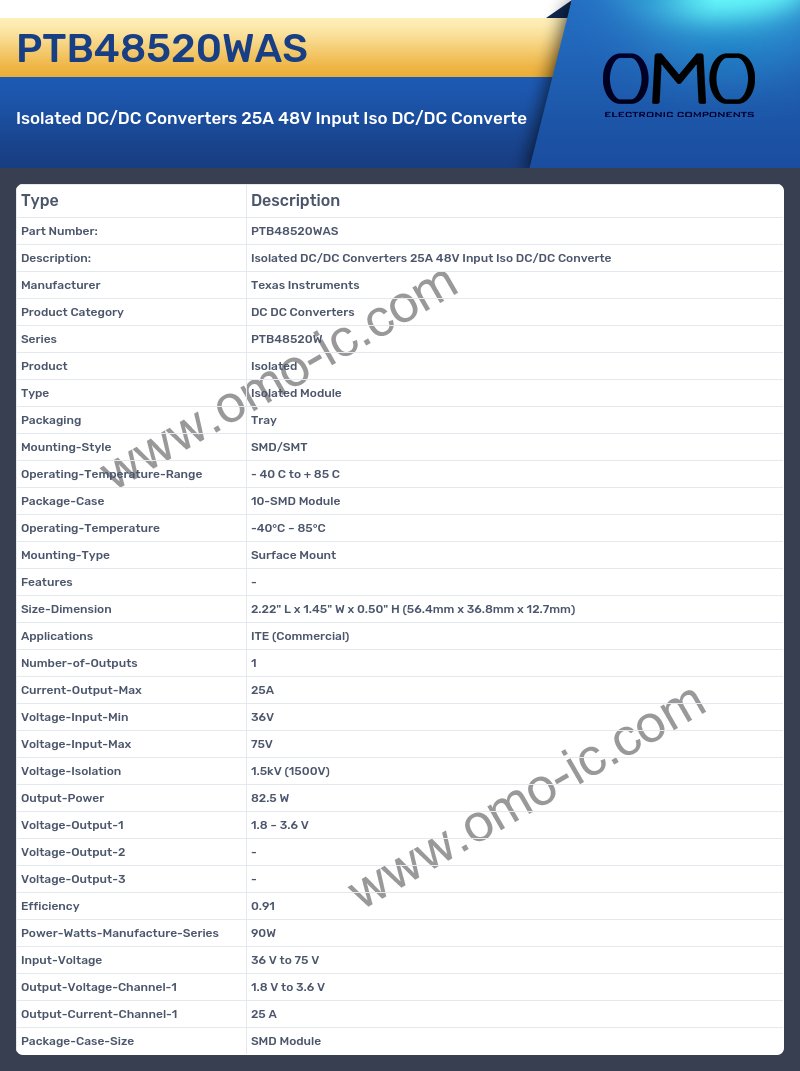

PTB48520WAS Specifications

• Manufacturer Texas Instruments
• Product Category DC DC Converters
• Series PTB48520W
• Product Isolated
• Type Isolated Module
• Packaging Tray
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case 10-SMD Module
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Features -
• Size-Dimension 2.22" L x 1.45" W x 0.50" H (56.4mm x 36.8mm x 12.7mm)
• Applications ITE (Commercial)
• Number-of-Outputs 1
• Current-Output-Max 25A
• Voltage-Input-Min 36V
• Voltage-Input-Max 75V
• Voltage-Isolation 1.5kV (1500V)
• Output-Power 82.5 W
• Voltage-Output-1 1.8 ~ 3.6 V
• Voltage-Output-2 -
• Voltage-Output-3 -
• Efficiency 0.91
• Power-Watts-Manufacture-Series 90W
• Input-Voltage 36 V to 75 V
• Output-Voltage-Channel-1 1.8 V to 3.6 V
• Output-Current-Channel-1 25 A
• Package-Case-Size SMD Module
