PT4701C

PT4701C Overview

Product belongs to the Excalibur PT4701 series. Type: Isolated Module Tray is the packaging method for this product 21-SMD Module Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Versatile ITE (Commercial) applications for maximum usability Number-of-Outputs: 4 Our product delivers a 1.25A, 1.25A, 1.75A of 50mA for efficient power management. The minimum input voltage is 36V. The 75V. This product is designed with 1.5kV (1500V) voltage isolation for maximum safety and reliability. 8V output voltage

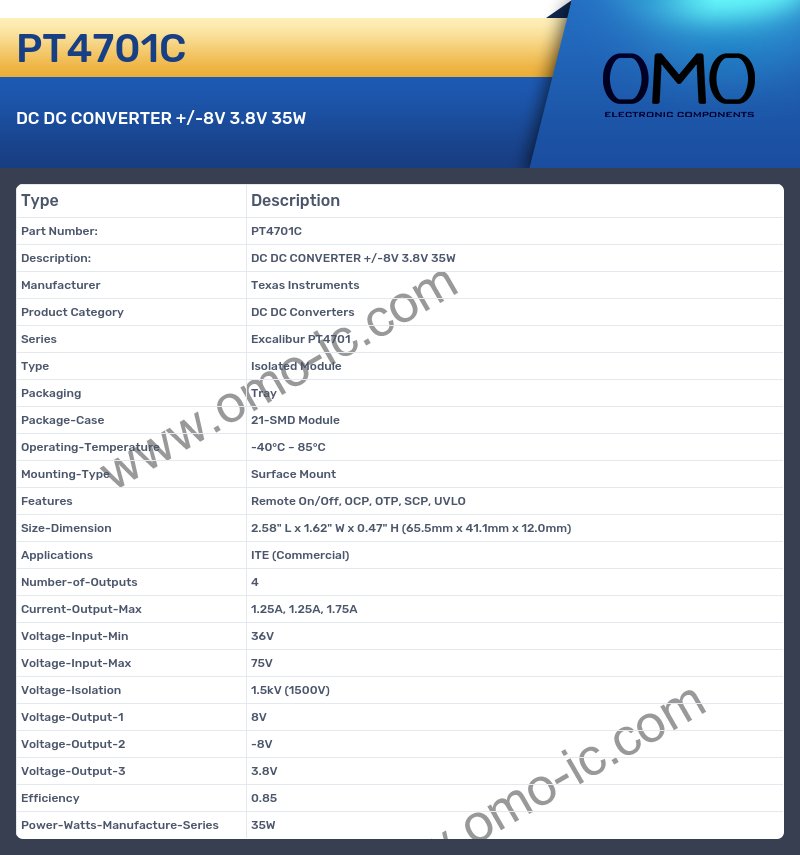

PT4701C Image

PT4701C Specifications

• Manufacturer Texas Instruments
• Product Category DC DC Converters
• Series Excalibur PT4701
• Type Isolated Module
• Packaging Tray
• Package-Case 21-SMD Module
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Features Remote On/Off, OCP, OTP, SCP, UVLO
• Size-Dimension 2.58" L x 1.62" W x 0.47" H (65.5mm x 41.1mm x 12.0mm)
• Applications ITE (Commercial)
• Number-of-Outputs 4
• Current-Output-Max 1.25A, 1.25A, 1.75A
• Voltage-Input-Min 36V
• Voltage-Input-Max 75V
• Voltage-Isolation 1.5kV (1500V)
• Voltage-Output-1 8V
• Voltage-Output-2 -8V
• Voltage-Output-3 3.8V
• Efficiency 0.85
• Power-Watts-Manufacture-Series 35W
