PT4682C

PT4682C Overview

Product belongs to the Excalibur PT4680 series. Type: Isolated Module Tray is the packaging method for this product 26-SMD Module Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Versatile ITE (Commercial) applications for maximum usability Number-of-Outputs: 2 Our product delivers a 15A, 15A of 50mA for efficient power management. The minimum input voltage is 18V. The 36V. This product is designed with 1.5kV (1500V) voltage isolation for maximum safety and reliability. 3.3V output voltage

PT4682C Image

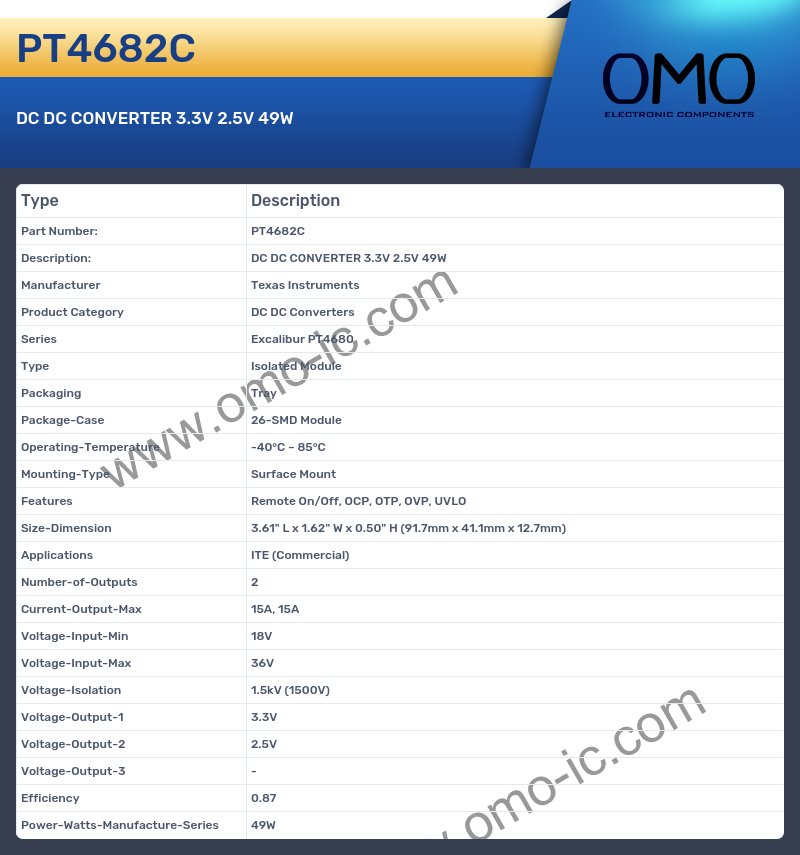

PT4682C Specifications

• Manufacturer Texas Instruments
• Product Category DC DC Converters
• Series Excalibur PT4680
• Type Isolated Module
• Packaging Tray
• Package-Case 26-SMD Module
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Features Remote On/Off, OCP, OTP, OVP, UVLO
• Size-Dimension 3.61" L x 1.62" W x 0.50" H (91.7mm x 41.1mm x 12.7mm)
• Applications ITE (Commercial)
• Number-of-Outputs 2
• Current-Output-Max 15A, 15A
• Voltage-Input-Min 18V
• Voltage-Input-Max 36V
• Voltage-Isolation 1.5kV (1500V)
• Voltage-Output-1 3.3V
• Voltage-Output-2 2.5V
• Voltage-Output-3 -
• Efficiency 0.87
• Power-Watts-Manufacture-Series 49W
