PIC18F86K22-E/PT

PIC18F86K22-E/PT Overview

Product belongs to the PICR XLP 18K series. Tray is the packaging method for this product 80-TQFP Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 80-TQFP (12x12) This product has 69 I/O ports for versatile connectivity. Operating frequency: 64MHz Program memory type: FLASH EBI/EMI, I2C, LIN, SPI, UART/USART interface Supply Voltage: 1.8 V ~ 5.5 V 8-Bit architecture Internal oscillator type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 1.8 V to 5.5 V supply voltage for reliable performance. Processor Core: PIC18 This product is powered by the PIC18 Processor-Series, providing high performance and efficiency. The 8 bit. This product has 69 I/O connections. This product features 11 Timer number of timers and counters.

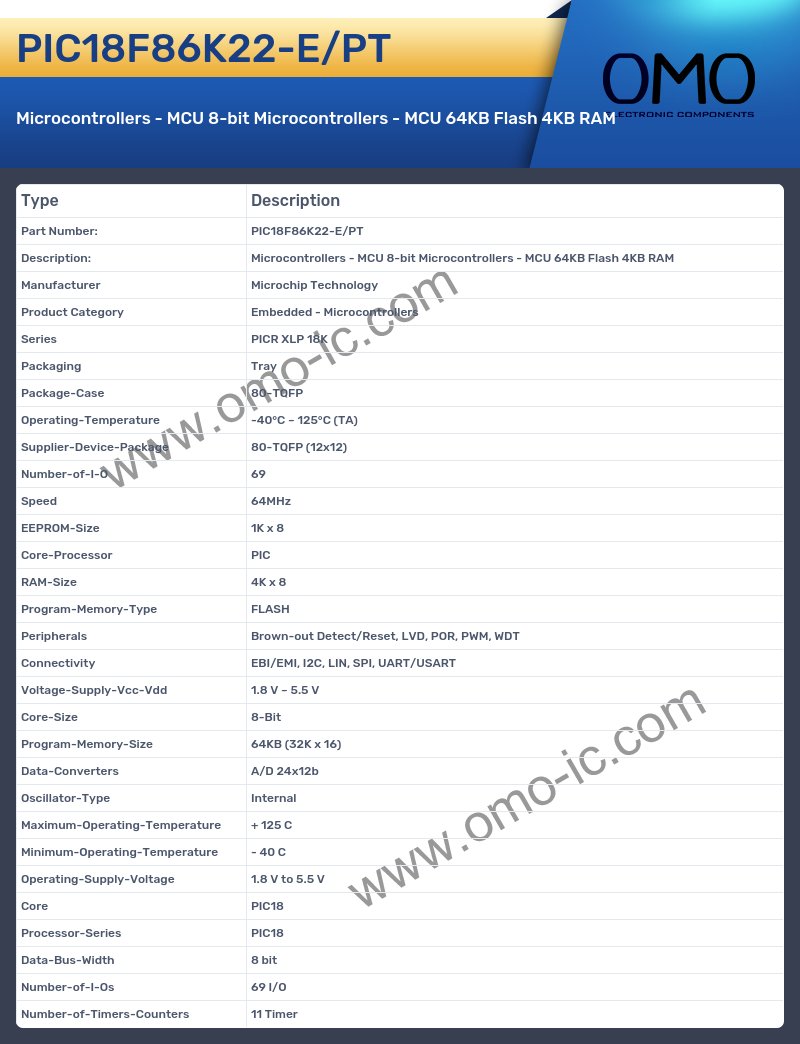

PIC18F86K22-E/PT Image

PIC18F86K22-E/PT Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR XLP 18K
• Packaging Tray
• Package-Case 80-TQFP
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 80-TQFP (12x12)
• Number-of-I-O 69
• Speed 64MHz
• EEPROM-Size 1K x 8
• Core-Processor PIC
• RAM-Size 4K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, LVD, POR, PWM, WDT
• Connectivity EBI/EMI, I2C, LIN, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 1.8 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 64KB (32K x 16)
• Data-Converters A/D 24x12b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.8 V to 5.5 V
• Core PIC18
• Processor-Series PIC18
• Data-Bus-Width 8 bit
• Number-of-I-Os 69 I/O
• Number-of-Timers-Counters 11 Timer
