PIC16F505-E/MG

PIC16F505-E/MG Overview

Product belongs to the PICR 16F series. This product is categorized as MCU Tray is the packaging method for this product 16-VFQFN Exposed Pad Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 16-QFN-EP (3x3) This product has 11 I/O ports for versatile connectivity. Operating frequency: 20MHz Program memory type: FLASH - interface Supply Voltage: 2 V ~ 5.5 V 8-Bit architecture Internal oscillator type Processor Core: PIC16 This product is powered by the PIC16 Processor-Series, providing high performance and efficiency. The 8 bit.

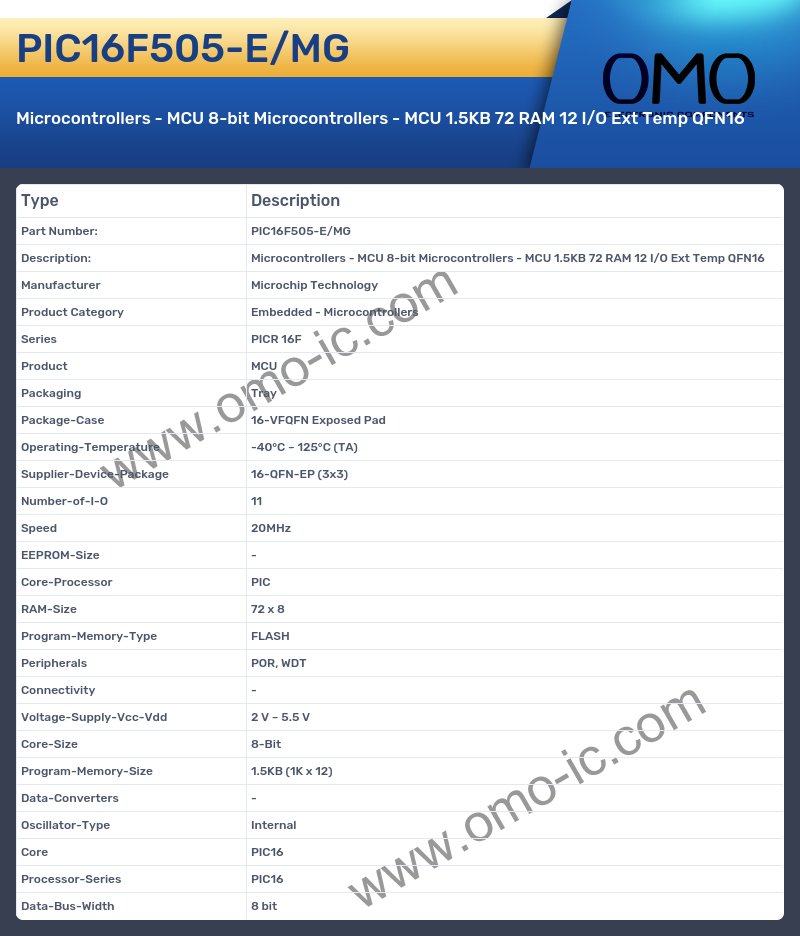

PIC16F505-E/MG Image

PIC16F505-E/MG Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR 16F
• Product MCU
• Packaging Tray
• Package-Case 16-VFQFN Exposed Pad
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 16-QFN-EP (3x3)
• Number-of-I-O 11
• Speed 20MHz
• EEPROM-Size -
• Core-Processor PIC
• RAM-Size 72 x 8
• Program-Memory-Type FLASH
• Peripherals POR, WDT
• Connectivity -
• Voltage-Supply-Vcc-Vdd 2 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 1.5KB (1K x 12)
• Data-Converters -
• Oscillator-Type Internal
• Core PIC16
• Processor-Series PIC16
• Data-Bus-Width 8 bit
