PIC16F1718-E/ML

PIC16F1718-E/ML Overview

Product belongs to the PICR XLP 16F series. This product is categorized as MCU Tube is the packaging method for this product SMD/SMT Mounting-Style QFN-28 Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 28-QFN (6x6) This product has 24 I/O ports for versatile connectivity. Operating frequency: 32MHz Program memory type: FLASH I2C, LIN, SPI, UART/USART interface Supply Voltage: 2.3 V ~ 5.5 V 8-Bit architecture Internal oscillator type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 2.3 V to 5.5 V supply voltage for reliable performance. I2C LIN RS-232 RS-485 SPI interface type Processor Core: PIC16 This product is powered by the PIC16(L)F171x Processor-Series, providing high performance and efficiency. The 8 bit. Maximum supply voltage of 5.5 V Minimum supply voltage is 2.3 V Maximum clock frequency of 16 MHz Number of ADC Channels: 17 This product has 25 I/O connections. This product has a 2 kB data RAM size, providing ample storage for complex applications. This product features 5 Timer number of timers and counters. This product features a high-precision 10 bit, ensuring accurate data conversion. This product utilizes SRAM, providing fast and efficient data storage.

PIC16F1718-E/ML Image

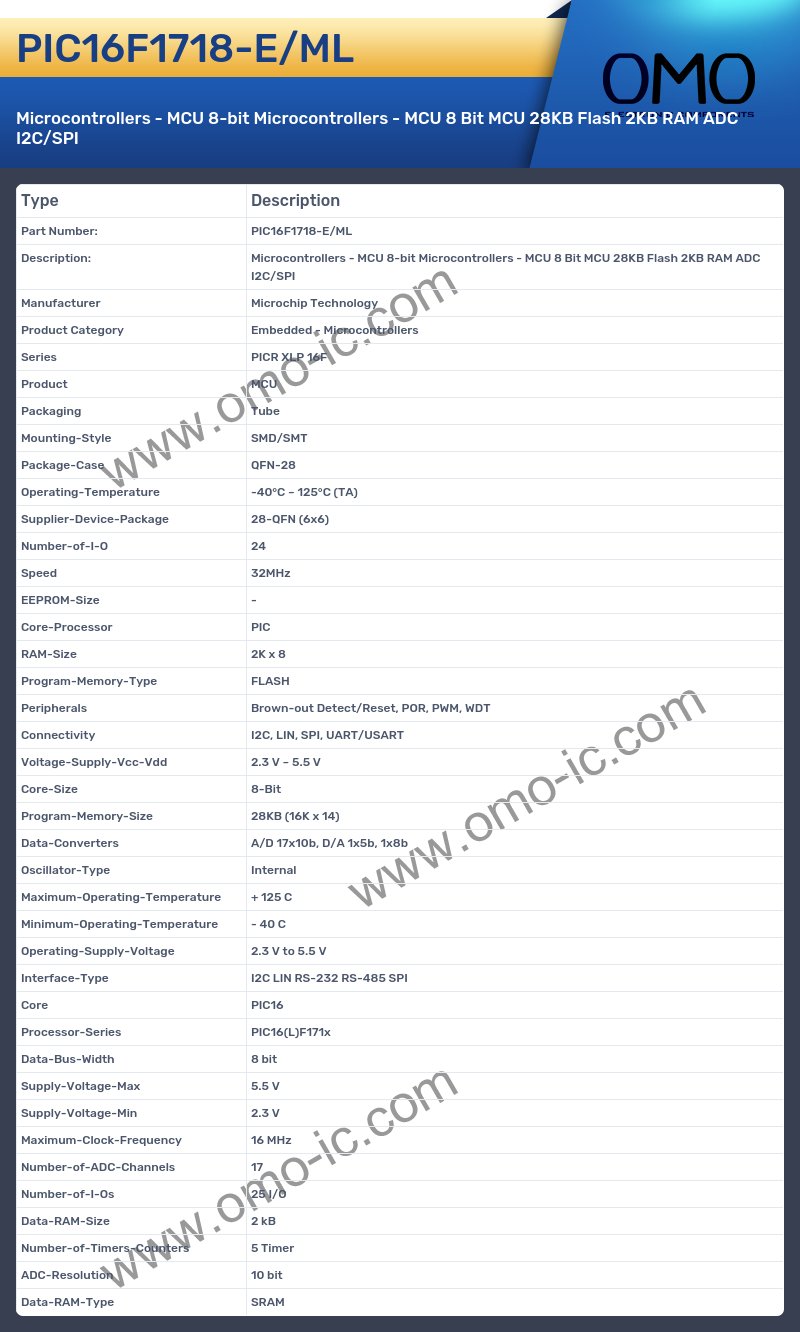

PIC16F1718-E/ML Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR XLP 16F
• Product MCU
• Packaging Tube
• Mounting-Style SMD/SMT
• Package-Case QFN-28
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 28-QFN (6x6)
• Number-of-I-O 24
• Speed 32MHz
• EEPROM-Size -
• Core-Processor PIC
• RAM-Size 2K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity I2C, LIN, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 2.3 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 28KB (16K x 14)
• Data-Converters A/D 17x10b, D/A 1x5b, 1x8b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.3 V to 5.5 V
• Interface-Type I2C LIN RS-232 RS-485 SPI
• Core PIC16
• Processor-Series PIC16(L)F171x
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.3 V
• Maximum-Clock-Frequency 16 MHz
• Number-of-ADC-Channels 17
• Number-of-I-Os 25 I/O
• Data-RAM-Size 2 kB
• Number-of-Timers-Counters 5 Timer
• ADC-Resolution 10 bit
• Data-RAM-Type SRAM
