PIC16F1458-E/SS

PIC16F1458-E/SS Overview

Product belongs to the PICR XLP 16F series. Tube is the packaging method for this product 20-SSOP (0.209", 5.30mm Width) Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 20-SSOP This product has 17 I/O ports for versatile connectivity. Operating frequency: 48MHz Program memory type: FLASH I2C, LIN, SPI, UART/USART, USB interface Supply Voltage: 2.3 V ~ 5.5 V 8-Bit architecture Internal oscillator type

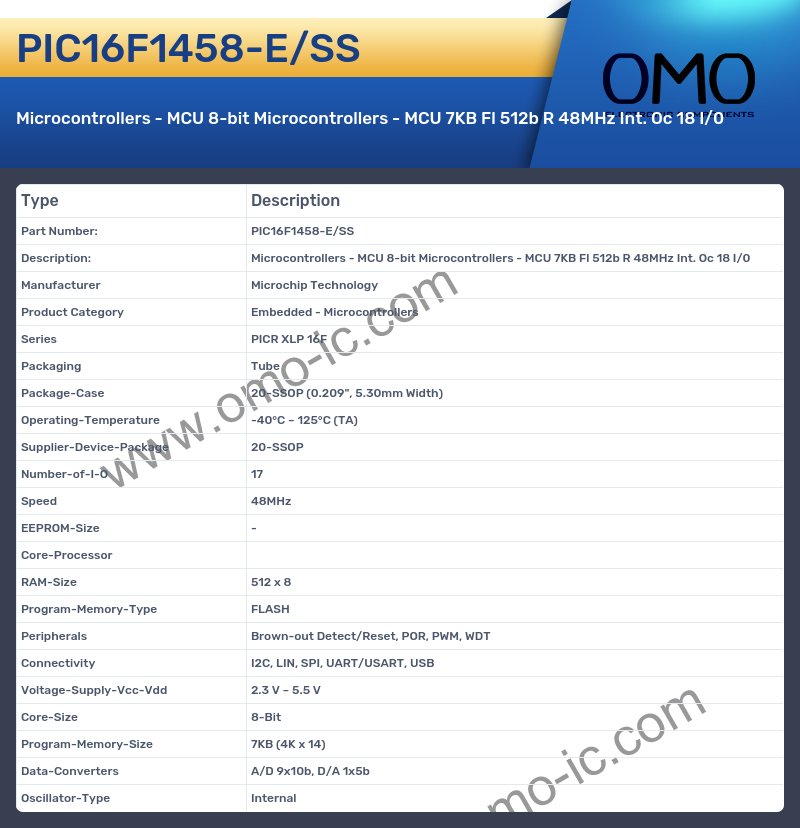

PIC16F1458-E/SS Image

PIC16F1458-E/SS Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR XLP 16F
• Packaging Tube
• Package-Case 20-SSOP (0.209", 5.30mm Width)
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 20-SSOP
• Number-of-I-O 17
• Speed 48MHz
• EEPROM-Size -
• Core-Processor
• RAM-Size 512 x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity I2C, LIN, SPI, UART/USART, USB
• Voltage-Supply-Vcc-Vdd 2.3 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 7KB (4K x 14)
• Data-Converters A/D 9x10b, D/A 1x5b
• Oscillator-Type Internal

PIC16F1458-E/SS FAQ

• A: At what frequency does the Series?

  Q: The product Series is PICR XLP 16F.

• A: What is the Packaging of the product?

  Q: The Packaging of the product is Tube.

• A: What is the Package-Case of the product?

  Q: The Package-Case of the product is 20-SSOP (0.209", 5.30mm Width).

• A: At what frequency does the Operating-Temperature?

  Q: The product Operating-Temperature is -40°C ~ 125°C (TA).

• A: What is the Supplier-Device-Package of the product?

  Q: The Supplier-Device-Package of the product is 20-SSOP.

• A: What is the Number-of-I-O of the product?

  Q: The Number-of-I-O of the product is 17.

• A: At what frequency does the Speed?

  Q: The product Speed is 48MHz.

• A: What is the Program-Memory-Type of the product?

  Q: The Program-Memory-Type of the product is FLASH.

• A: What is the Connectivity of the product?

  Q: The Connectivity of the product is I2C, LIN, SPI, UART/USART, USB.

• A: What is the Voltage-Supply-Vcc-Vdd of the product?

  Q: The Voltage-Supply-Vcc-Vdd of the product is 2.3 V ~ 5.5 V.

• A: At what frequency does the Core-Size?

  Q: The product Core-Size is 8-Bit.

• A: What is the Oscillator-Type of the product?

  Q: The Oscillator-Type of the product is Internal.
