PIC16C765-I/P

PIC16C765-I/P Overview

Product belongs to the PICR 16C series. This product is categorized as MCU Tube is the packaging method for this product Weight of 0.210004 oz Through Hole Mounting-Style PDIP-40 Operational temperature range: -40°C ~ 85°C (TA) Supplier device package: 40-PDIP This product has 33 I/O ports for versatile connectivity. Operating frequency: 24MHz Program memory type: OTP SCI, UART/USART, USB interface Supply Voltage: 4.35 V ~ 5.25 V 8-Bit architecture External oscillator type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 4.35 V to 5.25 V supply voltage for reliable performance. USART/USB interface type Processor Core: PIC This product is powered by the PIC16 Processor-Series, providing high performance and efficiency. The 8 bit. Maximum supply voltage of 5.25 V Minimum supply voltage is 4.35 V Maximum clock frequency of 24 MHz Number of ADC Channels: 8 This product has 33 I/O connections. This product has a 256 B data RAM size, providing ample storage for complex applications. The product has a 256 B data-ROM size. This product features 3 Timer number of timers and counters. This product features a high-precision 8 bit, ensuring accurate data conversion. The OTP EPROM Data-ROM-Type ensures non-volatile memory storage.

PIC16C765-I/P Image

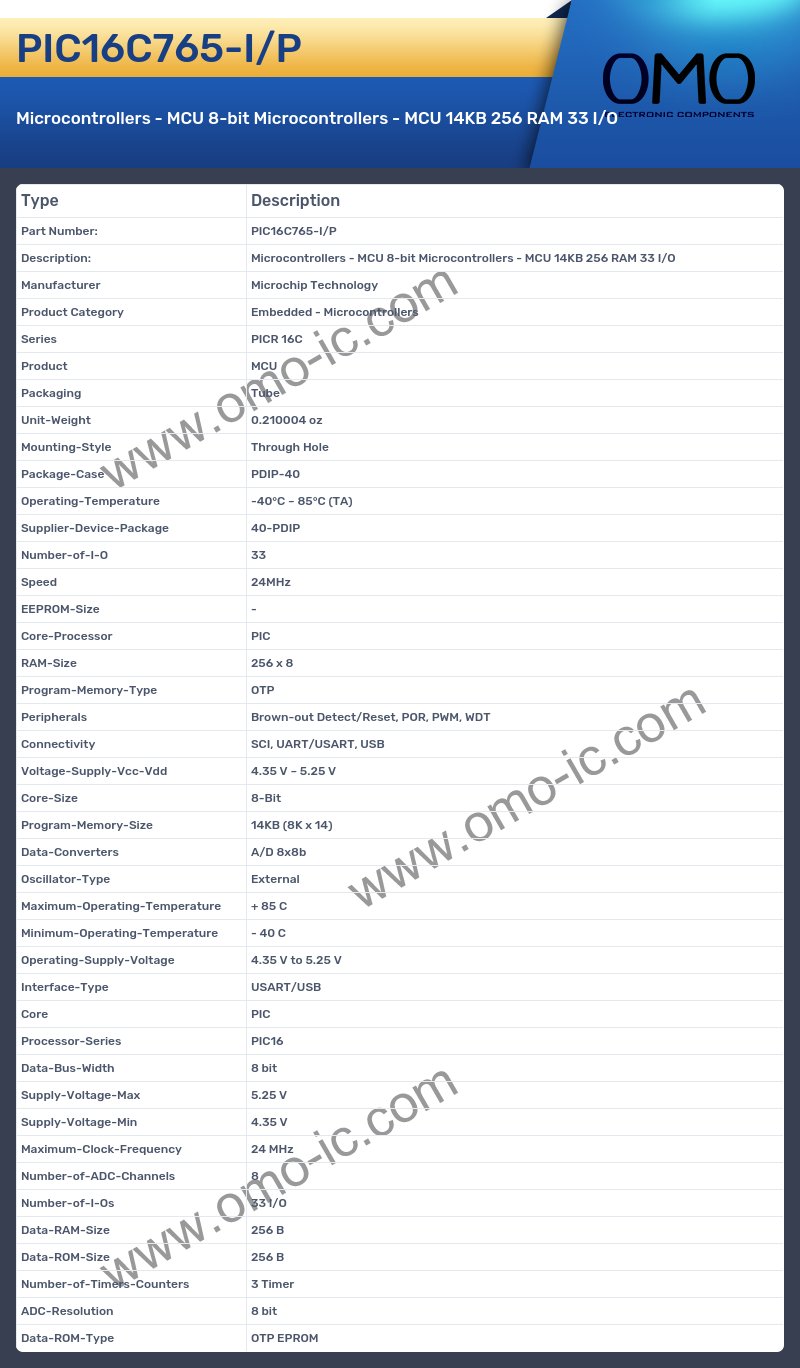

PIC16C765-I/P Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR 16C
• Product MCU
• Packaging Tube
• Unit-Weight 0.210004 oz
• Mounting-Style Through Hole
• Package-Case PDIP-40
• Operating-Temperature -40°C ~ 85°C (TA)
• Supplier-Device-Package 40-PDIP
• Number-of-I-O 33
• Speed 24MHz
• EEPROM-Size -
• Core-Processor PIC
• RAM-Size 256 x 8
• Program-Memory-Type OTP
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity SCI, UART/USART, USB
• Voltage-Supply-Vcc-Vdd 4.35 V ~ 5.25 V
• Core-Size 8-Bit
• Program-Memory-Size 14KB (8K x 14)
• Data-Converters A/D 8x8b
• Oscillator-Type External
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 4.35 V to 5.25 V
• Interface-Type USART/USB
• Core PIC
• Processor-Series PIC16
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.35 V
• Maximum-Clock-Frequency 24 MHz
• Number-of-ADC-Channels 8
• Number-of-I-Os 33 I/O
• Data-RAM-Size 256 B
• Data-ROM-Size 256 B
• Number-of-Timers-Counters 3 Timer
• ADC-Resolution 8 bit
• Data-ROM-Type OTP EPROM
