PIC12F683T-E/SN

PIC12F683T-E/SN Overview

Product belongs to the PIC12F683 series. This product is categorized as MCU Reel is the packaging method for this product Weight of 0.019048 oz SMD/SMT Mounting-Style Program memory type: Flash Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 2 V to 5.5 V supply voltage for reliable performance. RS-232 USB interface type Processor Core: PIC12 This product is powered by the PIC12F Processor-Series, providing high performance and efficiency. The 8 bit. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V SOIC-8 Maximum clock frequency of 20 MHz Number of ADC Channels: 4 This product has 6 I/O connections. This product has a 128 B data RAM size, providing ample storage for complex applications. The product has a 256 B data-ROM size. This product features 2 Timer number of timers and counters. This product includes Watchdog Timer This product features a high-precision 10 bit, ensuring accurate data conversion. The EEPROM Data-ROM-Type ensures non-volatile memory storage.

PIC12F683T-E/SN Image

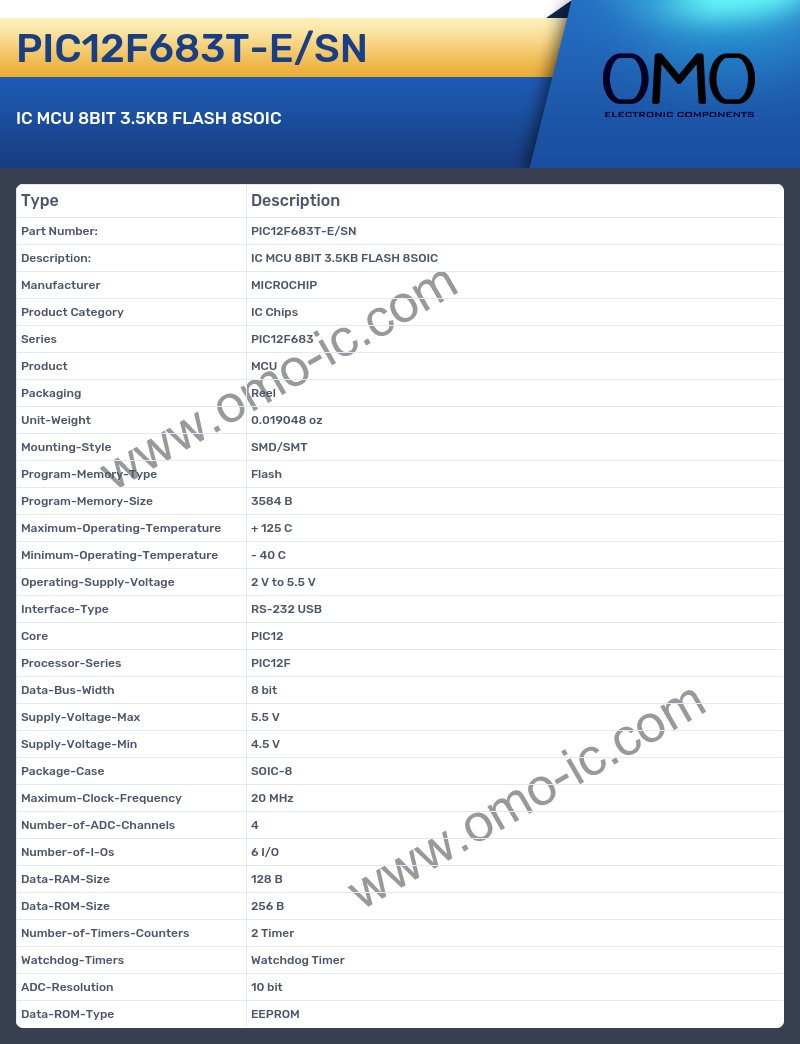

PIC12F683T-E/SN Specifications

• Manufacturer MICROCHIP
• Product Category IC Chips
• Series PIC12F683
• Product MCU
• Packaging Reel
• Unit-Weight 0.019048 oz
• Mounting-Style SMD/SMT
• Program-Memory-Type Flash
• Program-Memory-Size 3584 B
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2 V to 5.5 V
• Interface-Type RS-232 USB
• Core PIC12
• Processor-Series PIC12F
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Package-Case SOIC-8
• Maximum-Clock-Frequency 20 MHz
• Number-of-ADC-Channels 4
• Number-of-I-Os 6 I/O
• Data-RAM-Size 128 B
• Data-ROM-Size 256 B
• Number-of-Timers-Counters 2 Timer
• Watchdog-Timers Watchdog Timer
• ADC-Resolution 10 bit
• Data-ROM-Type EEPROM
