PIC12F1501-E/MF

PIC12F1501-E/MF Overview

Product belongs to the PICR 12F series. This product is categorized as MCU Tube is the packaging method for this product 8-VDFN Exposed Pad Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 8-DFN-EP (3x3) This product has 5 I/O ports for versatile connectivity. Operating frequency: 20MHz Program memory type: FLASH - interface Supply Voltage: 2.3 V ~ 5.5 V 8-Bit architecture Internal oscillator type Maximum operating temperature of + 125 C This product operates at a 2.3 V to 5.5 V supply voltage for reliable performance. Processor Core: PIC12 This product is powered by the PIC12 Processor-Series, providing high performance and efficiency. The 8 bit. Maximum clock frequency of 20 MHz This product has a 64 B data RAM size, providing ample storage for complex applications. This product includes Watchdog Timer Extended This product features a high-precision 10 bit, ensuring accurate data conversion.

PIC12F1501-E/MF Image

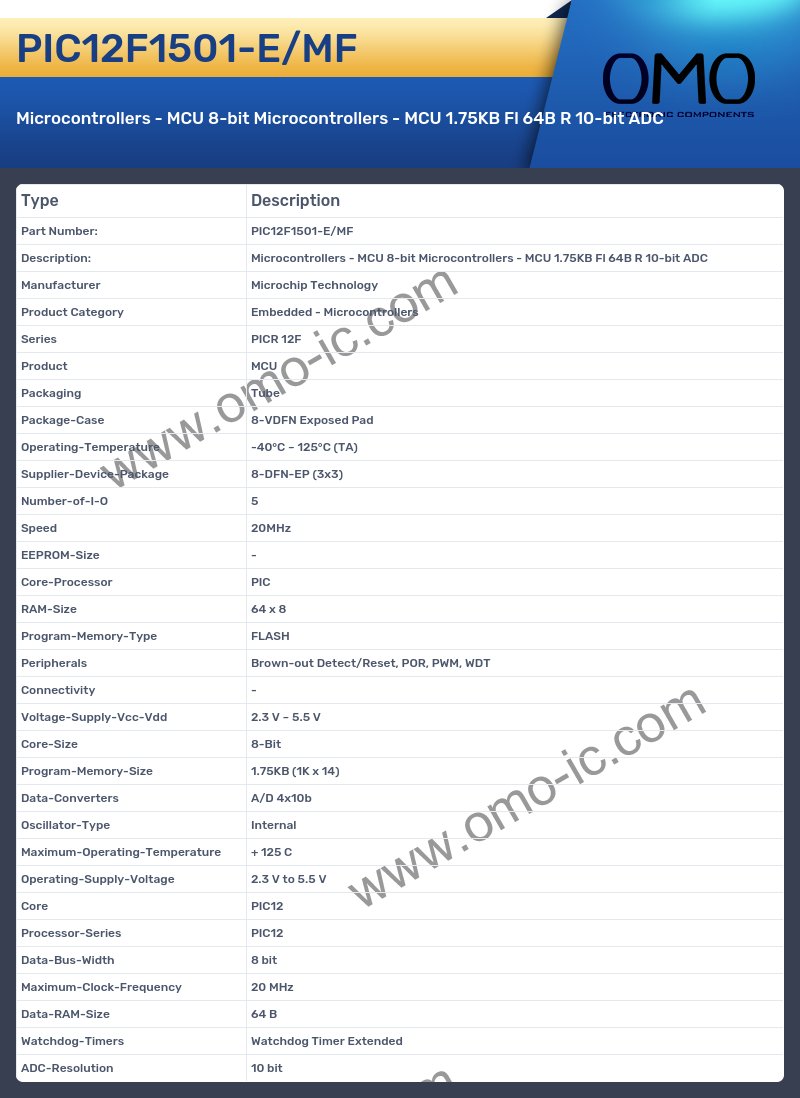

PIC12F1501-E/MF Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR 12F
• Product MCU
• Packaging Tube
• Package-Case 8-VDFN Exposed Pad
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 8-DFN-EP (3x3)
• Number-of-I-O 5
• Speed 20MHz
• EEPROM-Size -
• Core-Processor PIC
• RAM-Size 64 x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity -
• Voltage-Supply-Vcc-Vdd 2.3 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 1.75KB (1K x 14)
• Data-Converters A/D 4x10b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 125 C
• Operating-Supply-Voltage 2.3 V to 5.5 V
• Core PIC12
• Processor-Series PIC12
• Data-Bus-Width 8 bit
• Maximum-Clock-Frequency 20 MHz
• Data-RAM-Size 64 B
• Watchdog-Timers Watchdog Timer Extended
• ADC-Resolution 10 bit
