MSC1210Y3PAGT Overview

Product belongs to the MSC1210Y3 series. This product is categorized as Mixed Signal Data Converters Type: ADC and DAC: MCU Based Cut Tape (CT) Alternate Packaging is the packaging method for this product Weight of 0.009690 oz SMD/SMT Mounting-Style TQFP-64 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Number of channels: 8 Channel Voltage Supply Range: 2.7 V ~ 5.25 V Supplier device package: 64-TQFP (10x10) Resolution-Bits: 24 b This product's 1k. Data-Interface: Serial, Parallel Voltage supply source: Analog and digital Analog and Digital The architecture of this product is Delta-Sigma . Power-off control: No Shutdown Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 2.7 V to 5.25 V supply voltage for reliable performance. SPI USART interface type The 0.002 % of this product is 0.2%. Number-of-Converters: 8 Converter 1 kS/s Sampling Rate Integral Nonlinearity: 0.0015 % FSR Reference voltage is 2.5 V . Number of ADC Channels: 8 Channel

MSC1210Y3PAGT Image

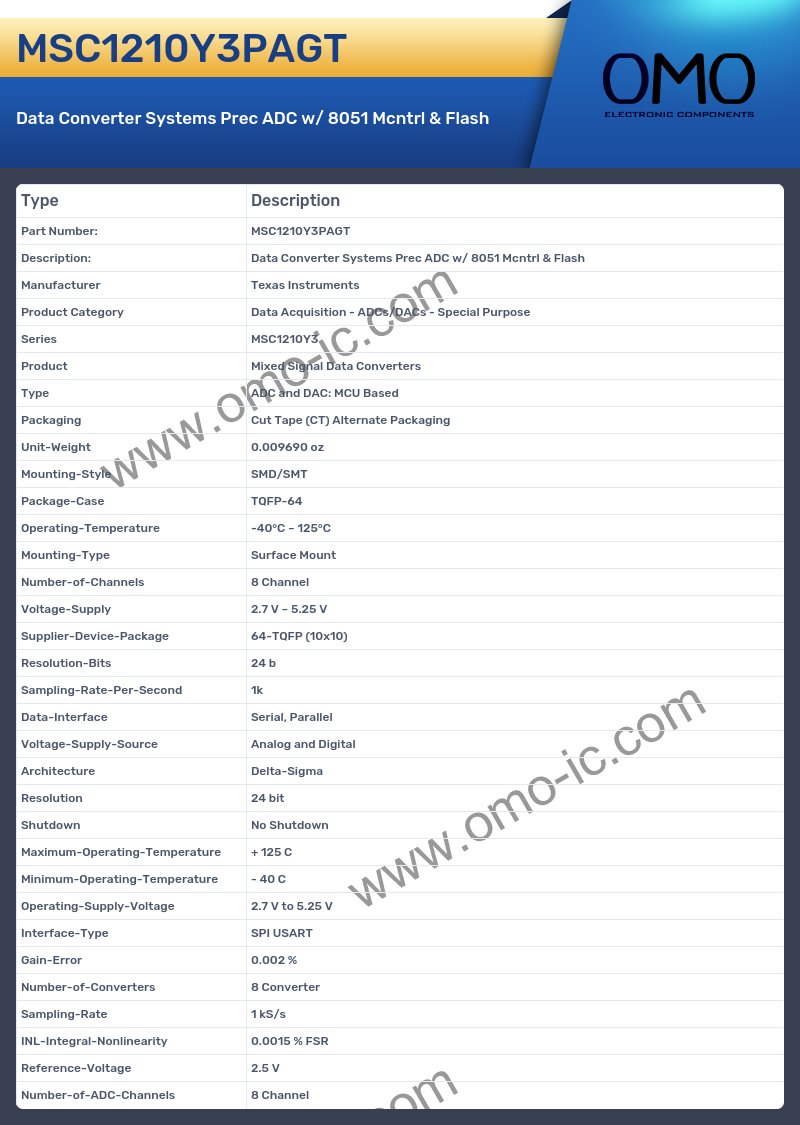

MSC1210Y3PAGT Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - ADCs/DACs - Special Purpose
• Series MSC1210Y3
• Product Mixed Signal Data Converters
• Type ADC and DAC: MCU Based
• Packaging Cut Tape (CT) Alternate Packaging
• Unit-Weight 0.009690 oz
• Mounting-Style SMD/SMT
• Package-Case TQFP-64
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Number-of-Channels 8 Channel
• Voltage-Supply 2.7 V ~ 5.25 V
• Supplier-Device-Package 64-TQFP (10x10)
• Resolution-Bits 24 b
• Sampling-Rate-Per-Second 1k
• Data-Interface Serial, Parallel
• Voltage-Supply-Source Analog and Digital
• Architecture Delta-Sigma
• Resolution 24 bit
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.7 V to 5.25 V
• Interface-Type SPI USART
• Gain-Error 0.002 %
• Number-of-Converters 8 Converter
• Sampling-Rate 1 kS/s
• INL-Integral-Nonlinearity 0.0015 % FSR
• Reference-Voltage 2.5 V
• Number-of-ADC-Channels 8 Channel
