MRF24J40-I/ML

MRF24J40-I/ML Overview

Product belongs to the - series. Type: TxRx + MCU Tube Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style 40-VFQFN Exposed Pad This product's 2.4GHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C Frequency Bandwidth: 2.4 GHz Sensitivity: -95dBm Voltage Supply Range: 2.4 V ~ 3.6 V This product comes with a - memory size. Data rate maximum is 625kbps . Serial Interfaces: SPI 0dBm Current receiving is 19mA 802.15.4 is the RF family standard. O-QPSK modulated The device has 6 GPIOs. 23mA range: 8.7mA to 32.1mA Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2.5 V 3.3 V supply voltage for reliable performance. 4 Wire SPI interface type Maximum data rate is 250 kb/s 625 kb/s Maximum supply voltage of 3.6 V Minimum supply voltage is 2.4 V The product has 1 receivers. 802.15.4 are the supported modulation formats. The number of transmitters is 1.

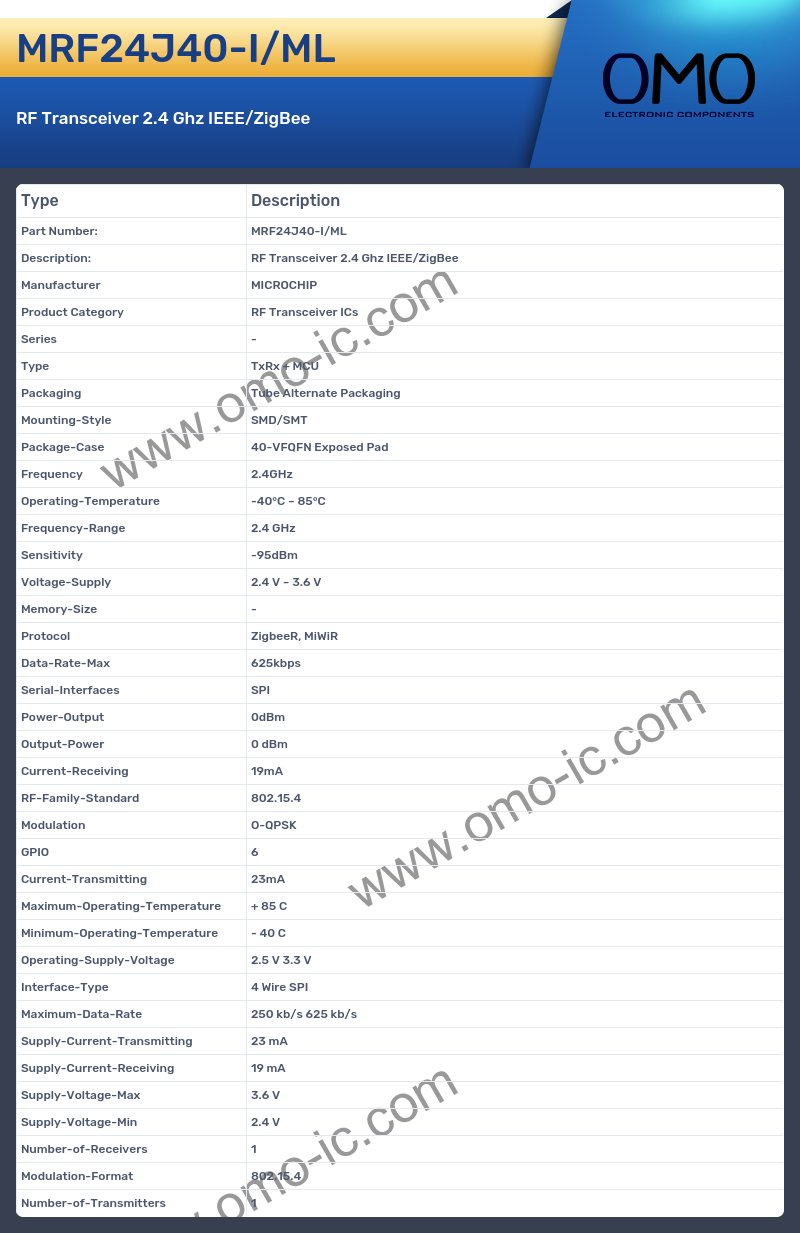

MRF24J40-I/ML Image

MRF24J40-I/ML Specifications

• Manufacturer MICROCHIP
• Product Category RF Transceiver ICs
• Series -
• Type TxRx + MCU
• Packaging Tube Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case 40-VFQFN Exposed Pad
• Frequency 2.4GHz
• Operating-Temperature -40°C ~ 85°C
• Frequency-Range 2.4 GHz
• Sensitivity -95dBm
• Voltage-Supply 2.4 V ~ 3.6 V
• Memory-Size -
• Protocol ZigbeeR, MiWiR
• Data-Rate-Max 625kbps
• Serial-Interfaces SPI
• Power-Output 0dBm
• Output-Power 0 dBm
• Current-Receiving 19mA
• RF-Family-Standard 802.15.4
• Modulation O-QPSK
• GPIO 6
• Current-Transmitting 23mA
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.5 V 3.3 V
• Interface-Type 4 Wire SPI
• Maximum-Data-Rate 250 kb/s 625 kb/s
• Supply-Current-Transmitting 23 mA
• Supply-Current-Receiving 19 mA
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 2.4 V
• Number-of-Receivers 1
• Modulation-Format 802.15.4
• Number-of-Transmitters 1
