MPC509AP

MPC509AP Overview

Product belongs to the MPC509 series. This product is categorized as Multiplexers Tube is the packaging method for this product Weight of 0.037172 oz Through Hole Mounting-Style Number of channels: 4 Channel Configuration 2 x 4 Power-off control: 7.5 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a +/- 9 V +/- 12 V +/- 15 V +/- 18 V supply voltage for reliable performance. Maximum supply current: 1.5 mA PDIP-16 Maximum dual supply voltage: 22 V Dual Supply supply type Max on-resistance of 1.5 kOhms Maximum off time: 500 ns Maximum on-time: 500 ns

MPC509AP Image

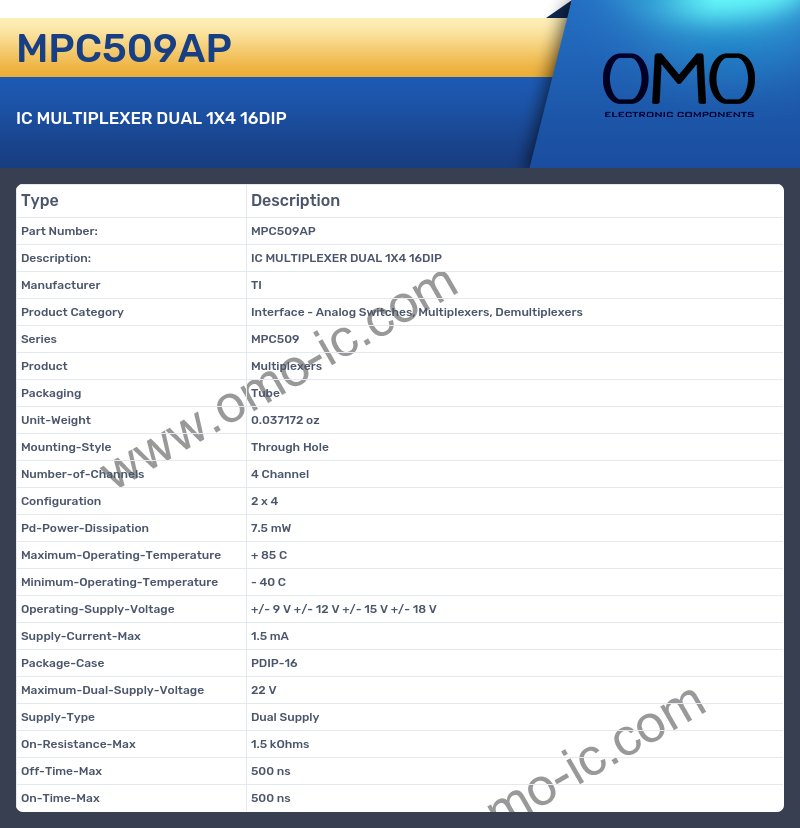

MPC509AP Specifications

• Manufacturer TI
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series MPC509
• Product Multiplexers
• Packaging Tube
• Unit-Weight 0.037172 oz
• Mounting-Style Through Hole
• Number-of-Channels 4 Channel
• Configuration 2 x 4
• Pd-Power-Dissipation 7.5 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage +/- 9 V +/- 12 V +/- 15 V +/- 18 V
• Supply-Current-Max 1.5 mA
• Package-Case PDIP-16
• Maximum-Dual-Supply-Voltage 22 V
• Supply-Type Dual Supply
• On-Resistance-Max 1.5 kOhms
• Off-Time-Max 500 ns
• On-Time-Max 500 ns
