MCP9510HT-E/CH

MCP9510HT-E/CH Overview

Product belongs to the - series. This product is categorized as Single Trip Switch Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SOT-23-6 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Open Drain, Push-Pull Voltage Supply Range: 2.7 V ~ 5.5 V Supplier device package: SOT-23-6 The Active High, Active Low. Configuration Local This product has a 50μA of 200μA. The OverTemp, /OverTemp of this product includes /OverTemp and /UnderTemp signals. Accuracy is rated at ±0.5°C . Our product delivers a 20mA of 50mA for efficient power management. Power-off control: Shutdown The Programmable. Our product features a Hot for optimal temperature regulation. Our product features a Yes for customizable control. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 50 uA is 92 nA. Maximum supply voltage of 5.5 VDC Minimum supply voltage is 2.7 VDC Programmable temperature threshold

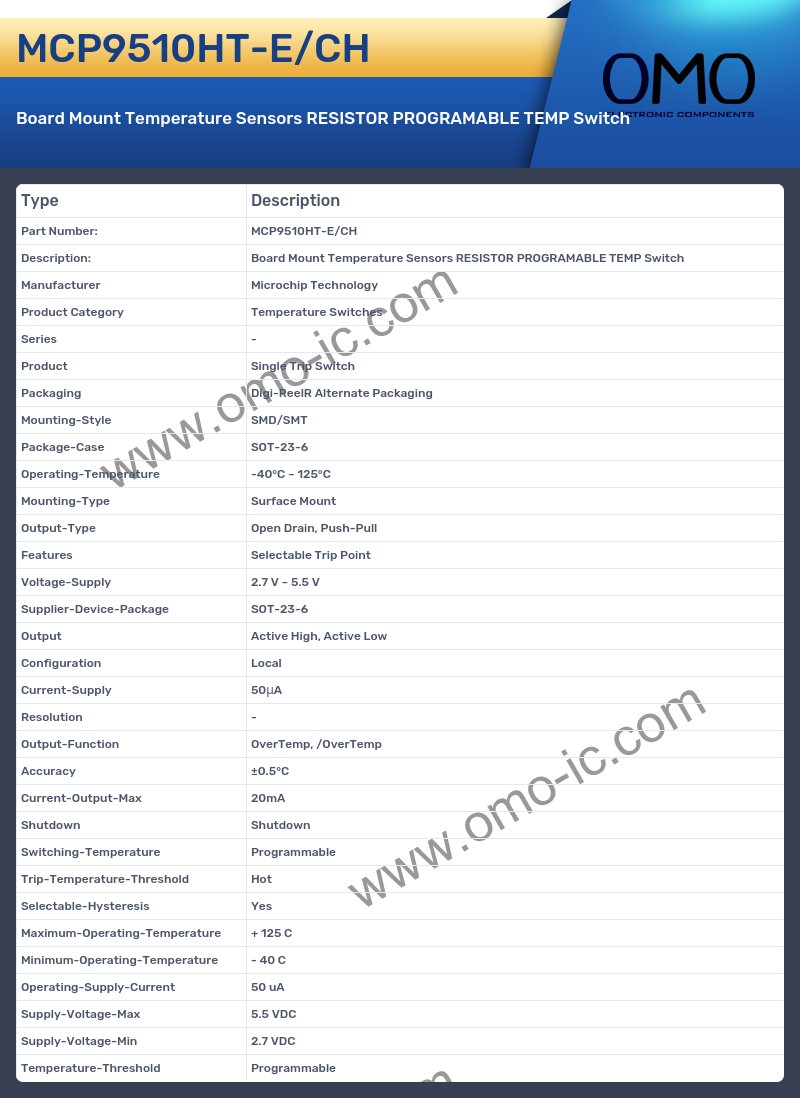

MCP9510HT-E/CH Image

MCP9510HT-E/CH Specifications

• Manufacturer Microchip Technology
• Product Category Temperature Switches
• Series -
• Product Single Trip Switch
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case SOT-23-6
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Open Drain, Push-Pull
• Features Selectable Trip Point
• Voltage-Supply 2.7 V ~ 5.5 V
• Supplier-Device-Package SOT-23-6
• Output Active High, Active Low
• Configuration Local
• Current-Supply 50μA
• Resolution -
• Output-Function OverTemp, /OverTemp
• Accuracy ±0.5°C
• Current-Output-Max 20mA
• Shutdown Shutdown
• Switching-Temperature Programmable
• Trip-Temperature-Threshold Hot
• Selectable-Hysteresis Yes
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 50 uA
• Supply-Voltage-Max 5.5 VDC
• Supply-Voltage-Min 2.7 VDC
• Temperature-Threshold Programmable
