MCP6549T-E/ST

MCP6549T-E/ST Overview

Product belongs to the - series. This product is categorized as Analog Comparators Type: General Purpose Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.004949 oz SMD/SMT Mounting-Style TSSOP-14 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: CMOS, Open-Drain, Rail-to-Rail, TTL Number of channels: 4 Channel Supplier device package: 14-TSSOP Voltage supply range: 1.6 V ~ 5.5 V 4 element 1μA maximum quiescent current. Maximum propagation delay: 8μs Hysteresis value of 6.5mV Power-off control: No Shutdown Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Maximum supply voltage of 5.5 V Minimum supply voltage is 1.6 V Input bias current of 1 pA The 7 mV. The 80 dB. The CMRR-Common-Mode-Rejection-Ratio is 70 dB.

MCP6549T-E/ST Image

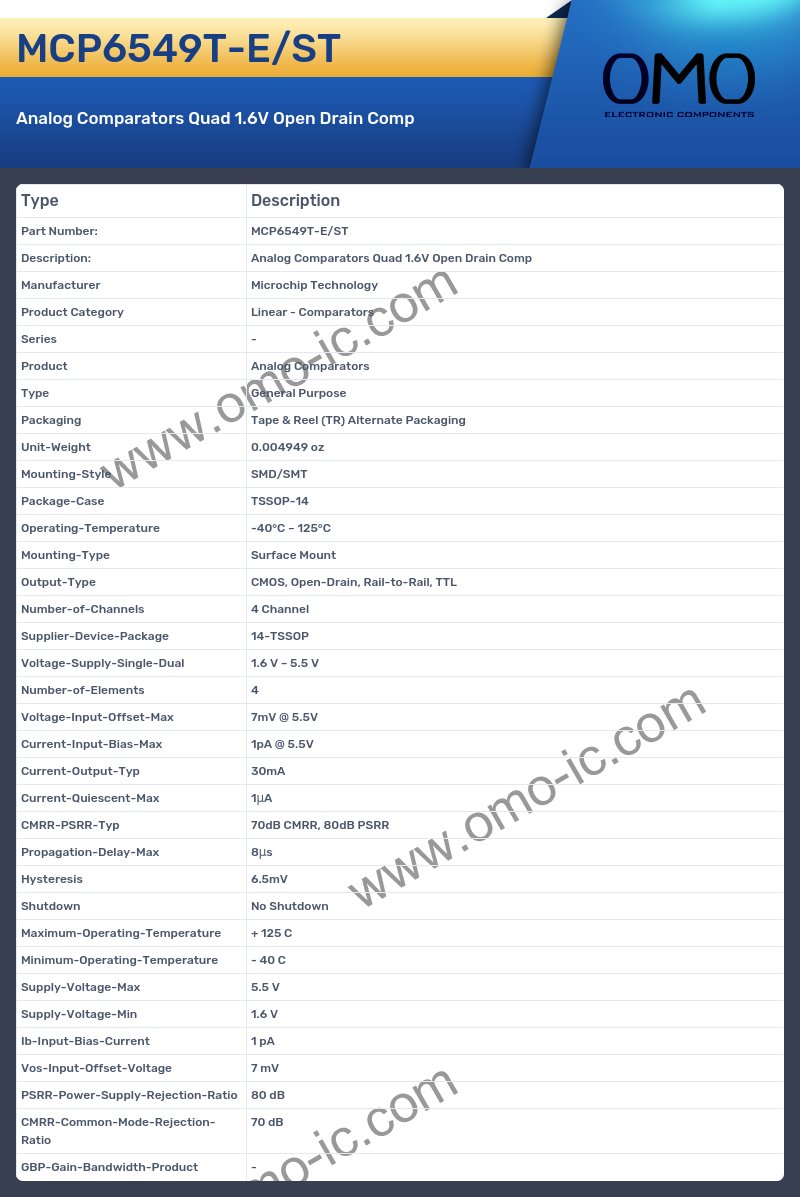

MCP6549T-E/ST Specifications

• Manufacturer Microchip Technology
• Product Category Linear - Comparators
• Series -
• Product Analog Comparators
• Type General Purpose
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.004949 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-14
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type CMOS, Open-Drain, Rail-to-Rail, TTL
• Number-of-Channels 4 Channel
• Supplier-Device-Package 14-TSSOP
• Voltage-Supply-Single-Dual 1.6 V ~ 5.5 V
• Number-of-Elements 4
• Voltage-Input-Offset-Max 7mV @ 5.5V
• Current-Input-Bias-Max 1pA @ 5.5V
• Current-Output-Typ 30mA
• Current-Quiescent-Max 1μA
• CMRR-PSRR-Typ 70dB CMRR, 80dB PSRR
• Propagation-Delay-Max 8μs
• Hysteresis 6.5mV
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1.6 V
• Ib-Input-Bias-Current 1 pA
• Vos-Input-Offset-Voltage 7 mV
• PSRR-Power-Supply-Rejection-Ratio 80 dB
• CMRR-Common-Mode-Rejection-Ratio 70 dB
• GBP-Gain-Bandwidth-Product -
