MCP42100T-E/SL

MCP42100T-E/SL Overview

Product belongs to the - series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.011923 oz SMD/SMT Mounting-Style SOIC-14 Operational temperature range: -40°C ~ 125°C Interface: SPI Voltage Supply Range: 2.7 V ~ 5.5 V Supplier device package: 14-SOIC 2 is 8. Taper: Linear Configuration Potentiometer 256 taps Resistance-Ohms: 100k Volatile memory type Tolerance of ±30% The 800 ppm/°C. 175 Ohms Resistance: 100 kOhms Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 2.7 V to 5.5 V supply voltage for reliable performance. This product is an 256 Step SPI 100k Ohm with SPI Interface. 340 uA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 2.7 V Dual number of POTs The 256. This product features a Serial.

MCP42100T-E/SL Image

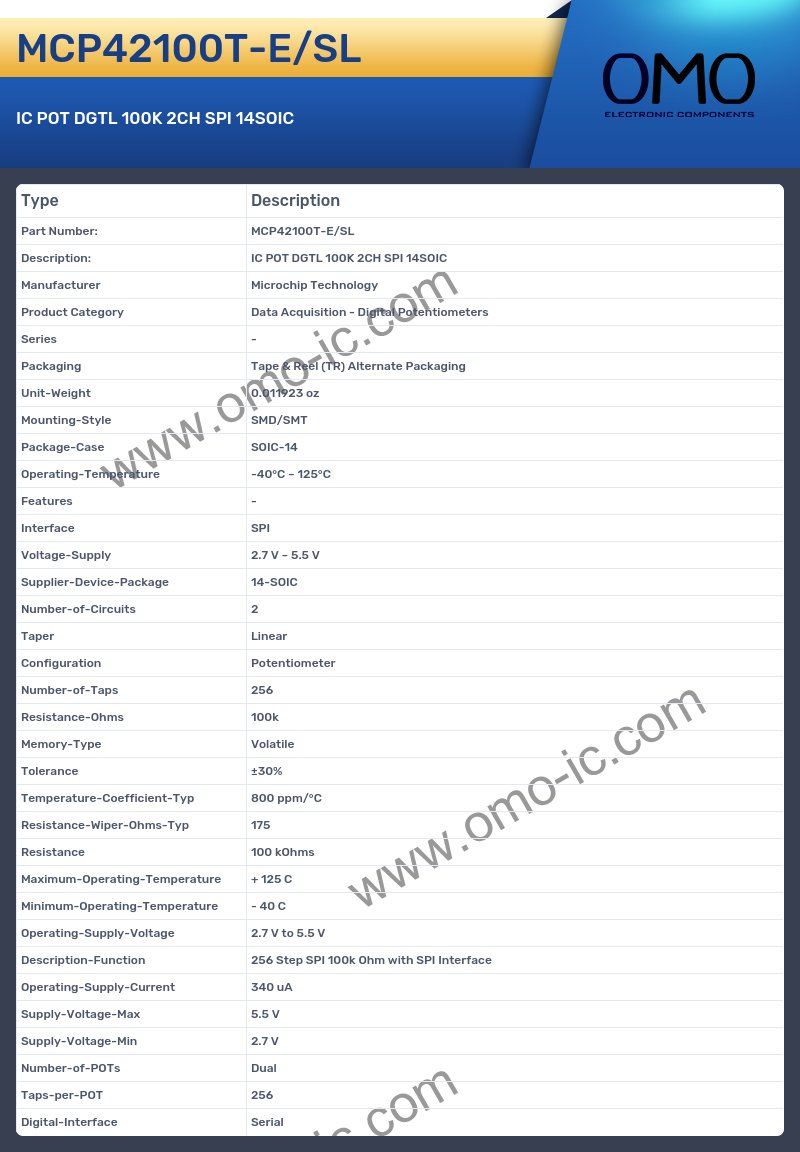

MCP42100T-E/SL Specifications

• Manufacturer Microchip Technology
• Product Category Data Acquisition - Digital Potentiometers
• Series -
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.011923 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Operating-Temperature -40°C ~ 125°C
• Features -
• Interface SPI
• Voltage-Supply 2.7 V ~ 5.5 V
• Supplier-Device-Package 14-SOIC
• Number-of-Circuits 2
• Taper Linear
• Configuration Potentiometer
• Number-of-Taps 256
• Resistance-Ohms 100k
• Memory-Type Volatile
• Tolerance ±30%
• Temperature-Coefficient-Typ 800 ppm/°C
• Resistance-Wiper-Ohms-Typ 175
• Resistance 100 kOhms
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.7 V to 5.5 V
• Description-Function 256 Step SPI 100k Ohm with SPI Interface
• Operating-Supply-Current 340 uA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.7 V
• Number-of-POTs Dual
• Taps-per-POT 256
• Digital-Interface Serial
