MCP23S09-E/P

MCP23S09-E/P Overview

Product belongs to the - series. This product is categorized as I/O Expanders Type: I/O Expander Tube is the packaging method for this product Weight of 0.044801 oz Through Hole Mounting-Style PDIP-18 Operational temperature range: -40°C ~ 125°C Through Hole mounting type Output-Type: Open Drain Interface: SPI Voltage Supply Range: 1.8 V ~ 5.5 V Supplier device package: 18-PDIP This product has 8 I/O ports for versatile connectivity. The product features an Yes output. 10MHz is 26GHz. Power-off control: 700 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 1.8 V to 5.5 V supply voltage for reliable performance. Output current: 25 mA MCP23S09 logic type Maximum clock frequency of 3.4 MHz

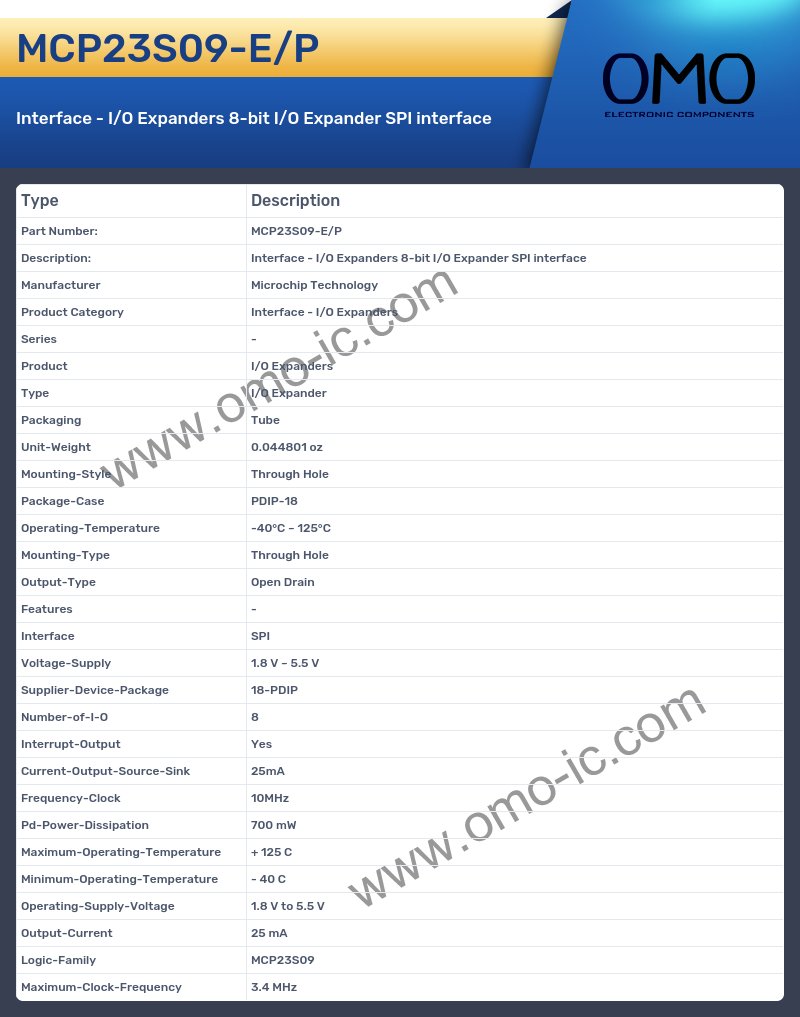

MCP23S09-E/P Image

MCP23S09-E/P Specifications

• Manufacturer Microchip Technology
• Product Category Interface - I/O Expanders
• Series -
• Product I/O Expanders
• Type I/O Expander
• Packaging Tube
• Unit-Weight 0.044801 oz
• Mounting-Style Through Hole
• Package-Case PDIP-18
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Through Hole
• Output-Type Open Drain
• Features -
• Interface SPI
• Voltage-Supply 1.8 V ~ 5.5 V
• Supplier-Device-Package 18-PDIP
• Number-of-I-O 8
• Interrupt-Output Yes
• Current-Output-Source-Sink 25mA
• Frequency-Clock 10MHz
• Pd-Power-Dissipation 700 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.8 V to 5.5 V
• Output-Current 25 mA
• Logic-Family MCP23S09
• Maximum-Clock-Frequency 3.4 MHz
