MCP16301T-E/CH

MCP16301T-E/CH Overview

Product belongs to the - series. This product is categorized as DC-DC Converters Tape & Reel (TR) is the packaging method for this product Weight of 0.001270 oz SMD/SMT Mounting-Style SOT-23-6 Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: SOT-23-6 Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 500kHz for optimal performance. The Positive. Minimum fixed output voltage is 2V . The value of No is included as a product attribute. The minimum input voltage is 4V. The 30V. The product's Non-Isolated is non-isolated. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 4 V to 30 V supply voltage for reliable performance. Output voltage: 2 V to 15 V 2 mA is 92 nA. Input Voltage Range: 4 V to 30 V Output current: 600 mA Switching frequency is 500 kHz Maximum duty cycle of 95 %

MCP16301T-E/CH Image

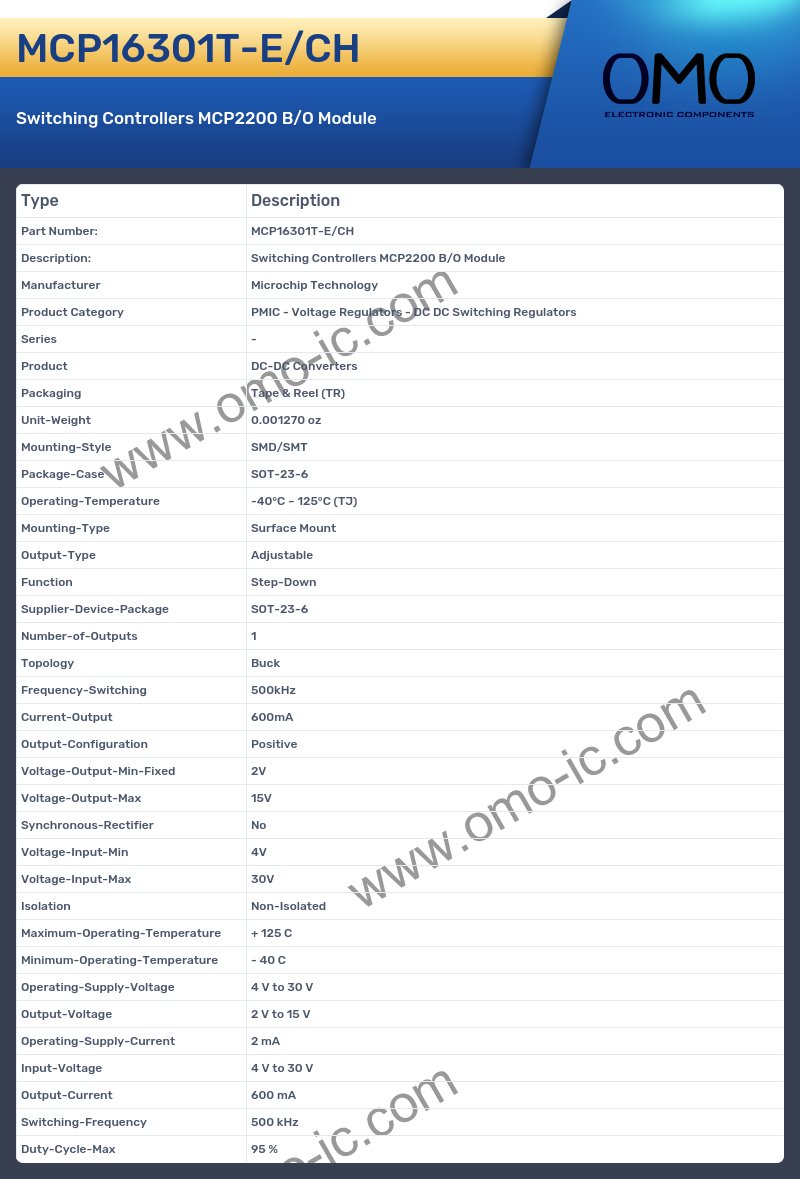

MCP16301T-E/CH Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series -
• Product DC-DC Converters
• Packaging Tape & Reel (TR)
• Unit-Weight 0.001270 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-6
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package SOT-23-6
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 500kHz
• Current-Output 600mA
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 2V
• Voltage-Output-Max 15V
• Synchronous-Rectifier No
• Voltage-Input-Min 4V
• Voltage-Input-Max 30V
• Isolation Non-Isolated
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 4 V to 30 V
• Output-Voltage 2 V to 15 V
• Operating-Supply-Current 2 mA
• Input-Voltage 4 V to 30 V
• Output-Current 600 mA
• Switching-Frequency 500 kHz
• Duty-Cycle-Max 95 %
