M74HCT14RM13TR

M74HCT14RM13TR Overview

Product belongs to the 74HCT series. Digi-ReelR is the packaging method for this product Weight of 0.011923 oz SMD/SMT Mounting-Style SOIC-14 Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 14-SO 6 is 8. 1μA maximum quiescent current. Inverter logic type 0.5 V ~ 0.6 V is a Logic-Level-Low; 1.9 V ~ 2.1 V is the Logic-Level-High Maximum operating temperature of + 125 C Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V HCT logic type High-Level-Output-Current of - 4 mA 4 mA low-level output current

M74HCT14RM13TR Image

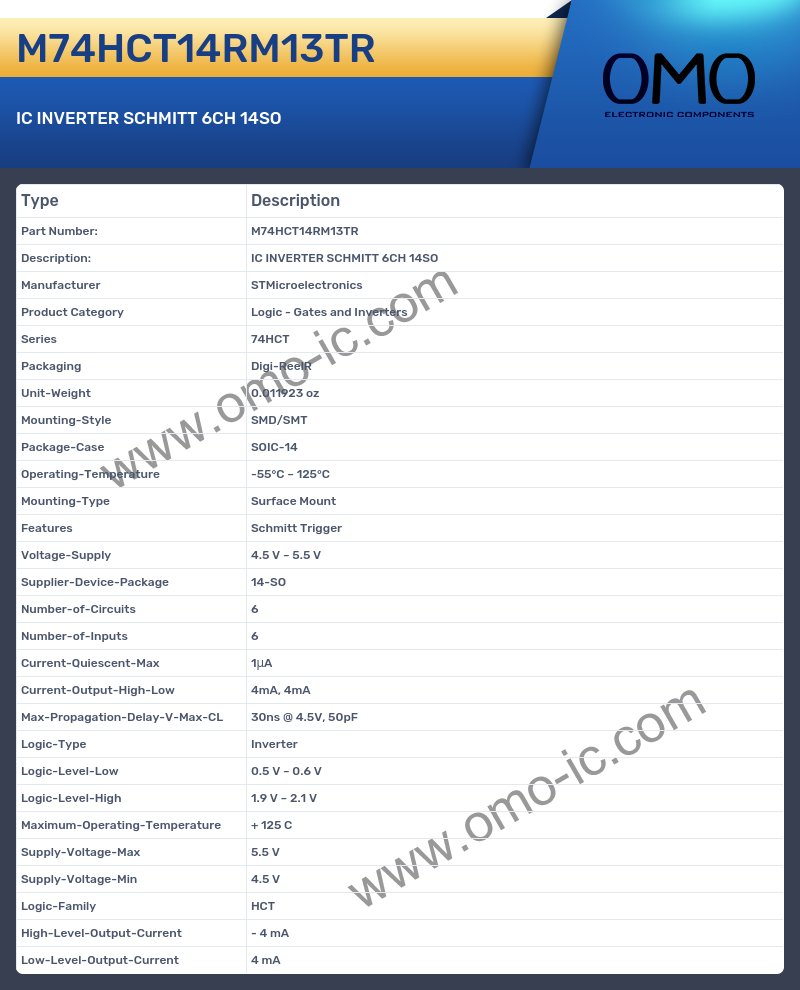

M74HCT14RM13TR Specifications

• Manufacturer STMicroelectronics
• Product Category Logic - Gates and Inverters
• Series 74HCT
• Packaging Digi-ReelR
• Unit-Weight 0.011923 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Features Schmitt Trigger
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 14-SO
• Number-of-Circuits 6
• Number-of-Inputs 6
• Current-Quiescent-Max 1μA
• Current-Output-High-Low 4mA, 4mA
• Max-Propagation-Delay-V-Max-CL 30ns @ 4.5V, 50pF
• Logic-Type Inverter
• Logic-Level-Low 0.5 V ~ 0.6 V
• Logic-Level-High 1.9 V ~ 2.1 V
• Maximum-Operating-Temperature + 125 C
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Logic-Family HCT
• High-Level-Output-Current - 4 mA
• Low-Level-Output-Current 4 mA
