M74HC14TTR

M74HC14TTR Overview

Product belongs to the 74HC series. Digi-ReelR is the packaging method for this product 14-TSSOP (0.173", 4.40mm Width) Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 2 V ~ 6 V Supplier device package: 14-TSSOP 6 is 8. 1μA maximum quiescent current. Inverter logic type 0.3 V ~ 1.5 V is a Logic-Level-Low; 1.5 V ~ 4.2 V is the Logic-Level-High

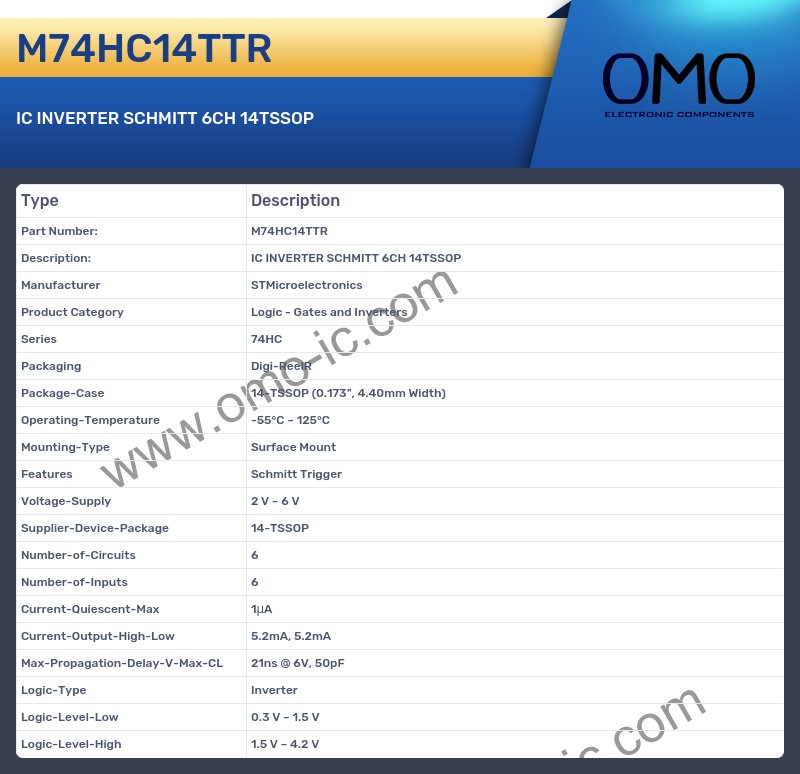

M74HC14TTR Image

M74HC14TTR Specifications

• Manufacturer STMicroelectronics
• Product Category Logic - Gates and Inverters
• Series 74HC
• Packaging Digi-ReelR
• Package-Case 14-TSSOP (0.173", 4.40mm Width)
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Features Schmitt Trigger
• Voltage-Supply 2 V ~ 6 V
• Supplier-Device-Package 14-TSSOP
• Number-of-Circuits 6
• Number-of-Inputs 6
• Current-Quiescent-Max 1μA
• Current-Output-High-Low 5.2mA, 5.2mA
• Max-Propagation-Delay-V-Max-CL 21ns @ 6V, 50pF
• Logic-Type Inverter
• Logic-Level-Low 0.3 V ~ 1.5 V
• Logic-Level-High 1.5 V ~ 4.2 V
