LM339APT

LM339APT Overview

Product belongs to the LM339 series. This product is categorized as Analog Comparators Type: General Purpose Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004949 oz SMD/SMT Mounting-Style TSSOP-14 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: CMOS, DTL, ECL, MOS, Open-Collector, TTL Number of channels: 4 Channel Supplier device package: 14-TSSOP Voltage supply range: 2 V ~ 32 V, ±1 V ~ 16 V 4 element 2.5mA maximum quiescent current. Maximum propagation delay: - Hysteresis value of - 1.3 us response time Power-off control: No Shutdown Power-off control: 710 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 2 mA is 92 nA. Maximum supply voltage of 32 V Minimum supply voltage is 2 V Differential comparator type Input bias current of 100 nA The 2 mV.

LM339APT Image

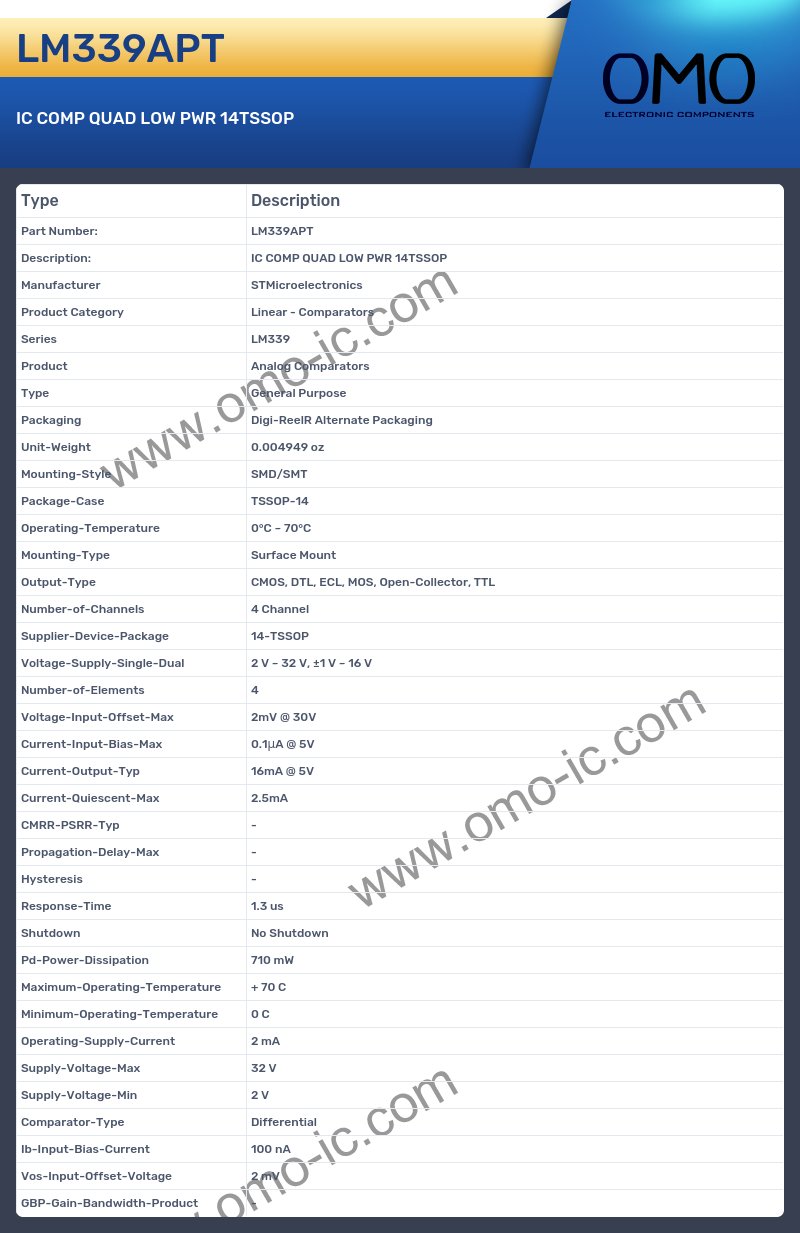

LM339APT Specifications

• Manufacturer STMicroelectronics
• Product Category Linear - Comparators
• Series LM339
• Product Analog Comparators
• Type General Purpose
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004949 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-14
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type CMOS, DTL, ECL, MOS, Open-Collector, TTL
• Number-of-Channels 4 Channel
• Supplier-Device-Package 14-TSSOP
• Voltage-Supply-Single-Dual 2 V ~ 32 V, ±1 V ~ 16 V
• Number-of-Elements 4
• Voltage-Input-Offset-Max 2mV @ 30V
• Current-Input-Bias-Max 0.1μA @ 5V
• Current-Output-Typ 16mA @ 5V
• Current-Quiescent-Max 2.5mA
• CMRR-PSRR-Typ -
• Propagation-Delay-Max -
• Hysteresis -
• Response-Time 1.3 us
• Shutdown No Shutdown
• Pd-Power-Dissipation 710 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 2 mA
• Supply-Voltage-Max 32 V
• Supply-Voltage-Min 2 V
• Comparator-Type Differential
• Ib-Input-Bias-Current 100 nA
• Vos-Input-Offset-Voltage 2 mV
• GBP-Gain-Bandwidth-Product -
