LM319DT

LM319DT Overview

Product belongs to the LM319 series. This product is categorized as Analog Comparators Type: General Purpose Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.009143 oz SMD/SMT Mounting-Style SO-14 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: Open-Collector, Open-Emitter, TTL Number of channels: 2 Channel Supplier device package: 14-SO Voltage supply range: 5 V ~ 30 V, ±2.5 V ~ 15 V 2 element 12.5mA maximum quiescent current. Maximum propagation delay: - Hysteresis value of - 80 ns response time Power-off control: No Shutdown Power-off control: 830 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 8 mA is 92 nA. Maximum supply voltage of 15 V Minimum supply voltage is 5 V Input bias current of 1 uA The 8 mV. The 200 nA. The Negative Rail 1 V to Positive Rail 3 V. 25 mA

LM319DT Image

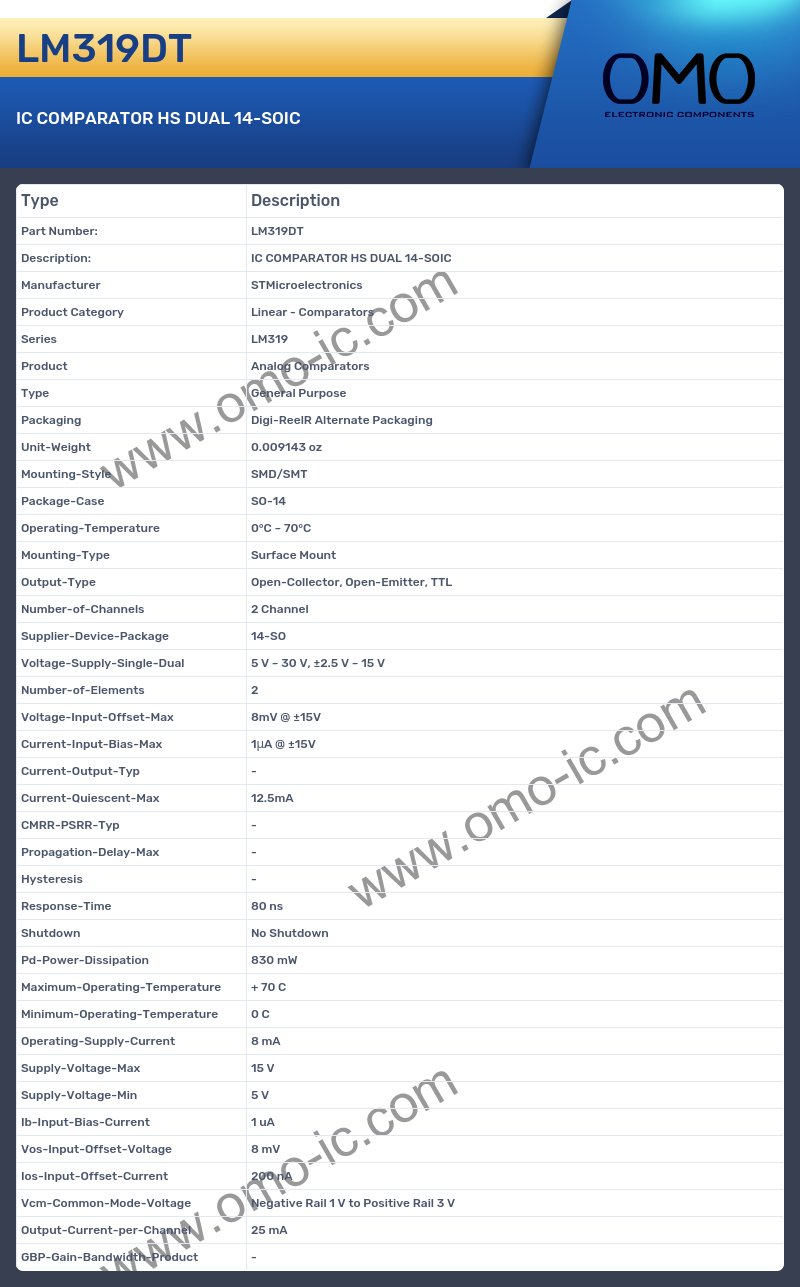

LM319DT Specifications

• Manufacturer STMicroelectronics
• Product Category Linear - Comparators
• Series LM319
• Product Analog Comparators
• Type General Purpose
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.009143 oz
• Mounting-Style SMD/SMT
• Package-Case SO-14
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type Open-Collector, Open-Emitter, TTL
• Number-of-Channels 2 Channel
• Supplier-Device-Package 14-SO
• Voltage-Supply-Single-Dual 5 V ~ 30 V, ±2.5 V ~ 15 V
• Number-of-Elements 2
• Voltage-Input-Offset-Max 8mV @ ±15V
• Current-Input-Bias-Max 1μA @ ±15V
• Current-Output-Typ -
• Current-Quiescent-Max 12.5mA
• CMRR-PSRR-Typ -
• Propagation-Delay-Max -
• Hysteresis -
• Response-Time 80 ns
• Shutdown No Shutdown
• Pd-Power-Dissipation 830 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 8 mA
• Supply-Voltage-Max 15 V
• Supply-Voltage-Min 5 V
• Ib-Input-Bias-Current 1 uA
• Vos-Input-Offset-Voltage 8 mV
• Ios-Input-Offset-Current 200 nA
• Vcm-Common-Mode-Voltage Negative Rail 1 V to Positive Rail 3 V
• Output-Current-per-Channel 25 mA
• GBP-Gain-Bandwidth-Product -
