LM2901MX

LM2901MX Overview

Product belongs to the LM2901 series. This product is categorized as Analog Comparators Type: General Purpose Tape & Reel (TR) is the packaging method for this product Weight of 0.007700 oz SMD/SMT Mounting-Style SOP-14 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: CMOS, MOS, Open-Collector, TTL Number of channels: 4 Channel Supplier device package: 14-SO Voltage supply range: 2 V ~ 36 V, ±1 V ~ 18 V 4 element 2mA maximum quiescent current. Maximum propagation delay: - Hysteresis value of - 1.3 us response time Power-off control: No Shutdown Power-off control: 570 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 2 mA is 92 nA. Maximum supply voltage of 28 V Minimum supply voltage is 14 V General Purpose comparator type Input bias current of 500 nA The 15 mV. The 50 nA. The Negative Rail to Positive Rail - 1.5 V. 18 mA

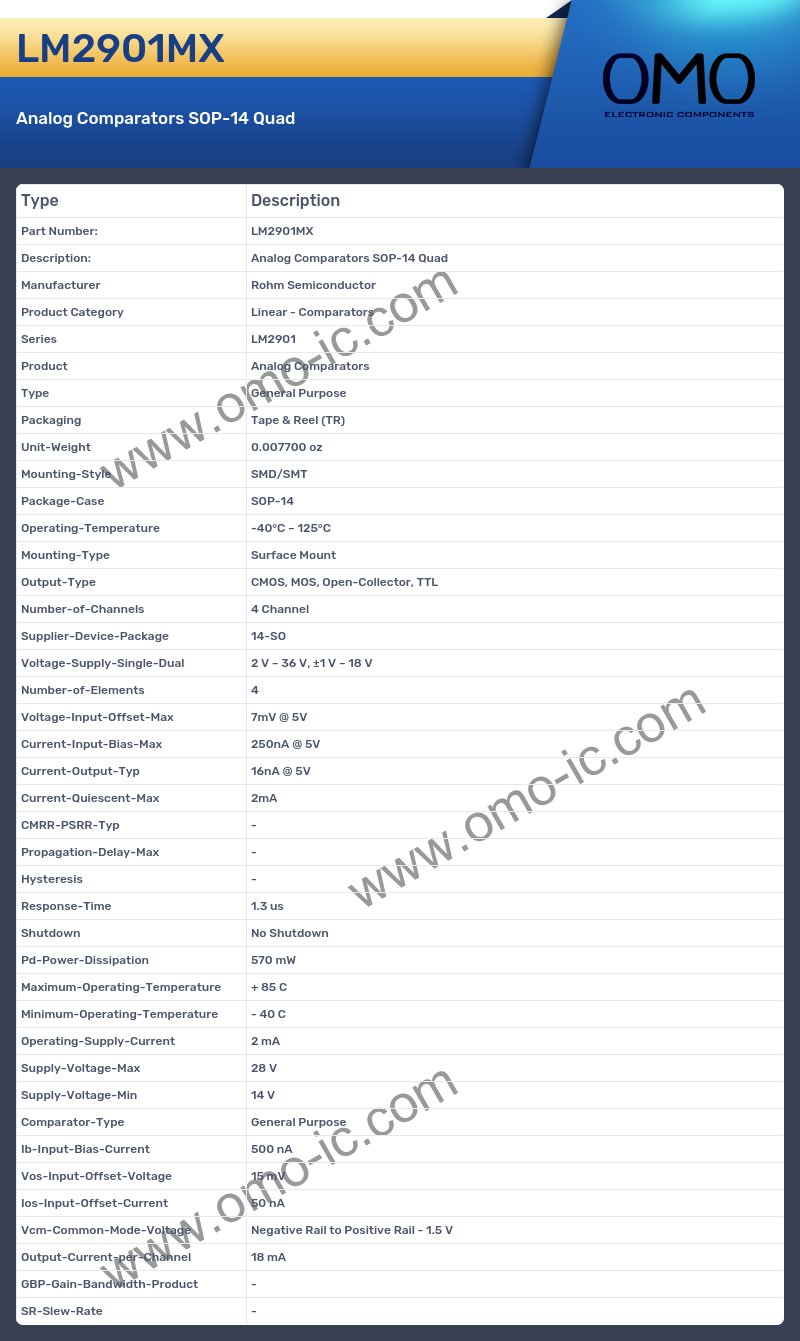

LM2901MX Image

LM2901MX Specifications

• Manufacturer Rohm Semiconductor
• Product Category Linear - Comparators
• Series LM2901
• Product Analog Comparators
• Type General Purpose
• Packaging Tape & Reel (TR)
• Unit-Weight 0.007700 oz
• Mounting-Style SMD/SMT
• Package-Case SOP-14
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type CMOS, MOS, Open-Collector, TTL
• Number-of-Channels 4 Channel
• Supplier-Device-Package 14-SO
• Voltage-Supply-Single-Dual 2 V ~ 36 V, ±1 V ~ 18 V
• Number-of-Elements 4
• Voltage-Input-Offset-Max 7mV @ 5V
• Current-Input-Bias-Max 250nA @ 5V
• Current-Output-Typ 16nA @ 5V
• Current-Quiescent-Max 2mA
• CMRR-PSRR-Typ -
• Propagation-Delay-Max -
• Hysteresis -
• Response-Time 1.3 us
• Shutdown No Shutdown
• Pd-Power-Dissipation 570 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 2 mA
• Supply-Voltage-Max 28 V
• Supply-Voltage-Min 14 V
• Comparator-Type General Purpose
• Ib-Input-Bias-Current 500 nA
• Vos-Input-Offset-Voltage 15 mV
• Ios-Input-Offset-Current 50 nA
• Vcm-Common-Mode-Voltage Negative Rail to Positive Rail - 1.5 V
• Output-Current-per-Channel 18 mA
• GBP-Gain-Bandwidth-Product -
• SR-Slew-Rate -
