LM2664M6 Overview

Product belongs to the LM2664 series. Type: Inverting Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001270 oz SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications SOT-23-6 Operational temperature range: -40°C ~ 85°C (TJ) Surface Mount mounting type Output-Type: Fixed Product function is Ratiometric. Supplier device package: SOT-23-6 Number-of-Outputs: 1 Topology: Charge Pump feedback This product features 'Frequency-Switching' at 80kHz for optimal performance. The Positive or Negative. Minimum fixed output voltage is -Vin, 2Vin . The value of No is included as a product attribute. The minimum input voltage is 1.8V. The 5.5V. Power-off control: Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: - 1.8 V to - 5.5 V 16 mA is 92 nA. Input Voltage Range: 1.8 V to 5.5 V Maximum Input Voltage: 5.5 V Output current: 40 mA Switching frequency is 80 kHz The product's 1.8 V is 5.1 V. The LM2661/3/4EVAL. Minimum supply voltage is 1.8 V

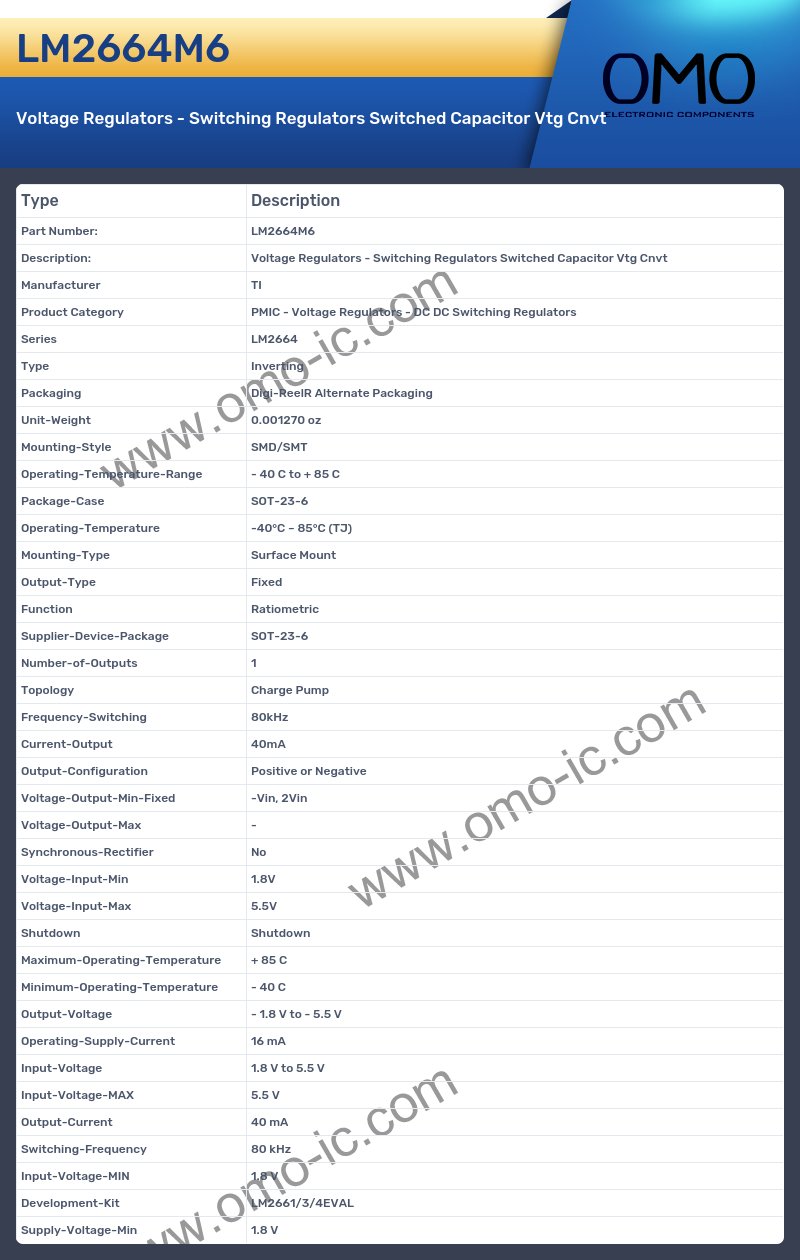

LM2664M6 Image

LM2664M6 Specifications

• Manufacturer TI
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series LM2664
• Type Inverting
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001270 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case SOT-23-6
• Operating-Temperature -40°C ~ 85°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Fixed
• Function Ratiometric
• Supplier-Device-Package SOT-23-6
• Number-of-Outputs 1
• Topology Charge Pump
• Frequency-Switching 80kHz
• Current-Output 40mA
• Output-Configuration Positive or Negative
• Voltage-Output-Min-Fixed -Vin, 2Vin
• Voltage-Output-Max -
• Synchronous-Rectifier No
• Voltage-Input-Min 1.8V
• Voltage-Input-Max 5.5V
• Shutdown Shutdown
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage - 1.8 V to - 5.5 V
• Operating-Supply-Current 16 mA
• Input-Voltage 1.8 V to 5.5 V
• Input-Voltage-MAX 5.5 V
• Output-Current 40 mA
• Switching-Frequency 80 kHz
• Input-Voltage-MIN 1.8 V
• Development-Kit LM2661/3/4EVAL
• Supply-Voltage-Min 1.8 V
