LD39100PUR

LD39100PUR Overview

Product belongs to the LD39100 series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style DFN-EP-6 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: 6-DFN (3x3) 1.5 V ~ 5.5 V voltage input Output voltage: 0.8 V ~ 4.5 V Positive Adjustable regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Output voltage: 800 mV to 4.5 V Maximum Input Voltage: 5.5 V Output current: 1 A Load regulation is 0.002 %/mA. The maximum 200 mV is 360 mV.

LD39100PUR Image

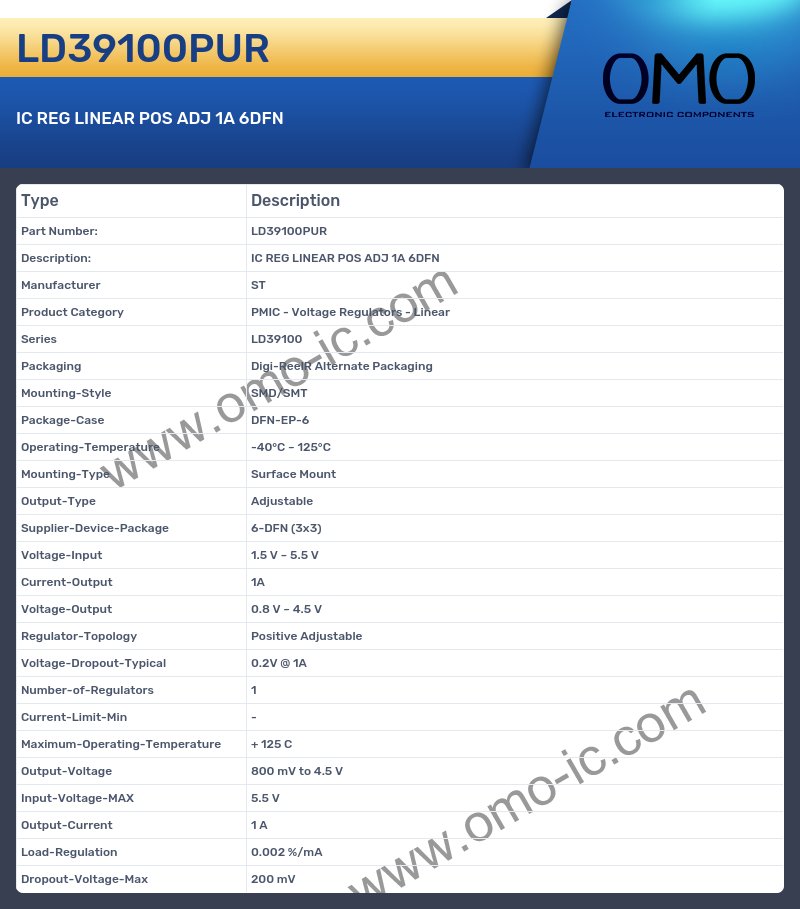

LD39100PUR Specifications

• Manufacturer ST
• Product Category PMIC - Voltage Regulators - Linear
• Series LD39100
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case DFN-EP-6
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package 6-DFN (3x3)
• Voltage-Input 1.5 V ~ 5.5 V
• Current-Output 1A
• Voltage-Output 0.8 V ~ 4.5 V
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical 0.2V @ 1A
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Output-Voltage 800 mV to 4.5 V
• Input-Voltage-MAX 5.5 V
• Output-Current 1 A
• Load-Regulation 0.002 %/mA
• Dropout-Voltage-Max 200 mV
