LD1086BDTTR

LD1086BDTTR Overview

Product belongs to the Automotive, AEC-Q100 series. This product is categorized as LDO Regulators Type: Low Drop Voltage Regulator Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.012346 oz SMD/SMT Mounting-Style DPAK-3 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: DPAK Tolerance of 1 % Up to 30V voltage input Number-of-Outputs: 1 Output Output voltage: Adj to 1.25V Positive Adjustable regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: Adj Maximum Input Voltage: 30 V Output current: 1.5 A The product's 2.85 V is 5.1 V. Load regulation is 0.1 %. Reference voltage is 1.25 V . The 1.3 V. This product's 0.015 % is 0.01 %/V. The product's 88 dB is -20 dB.

LD1086BDTTR Image

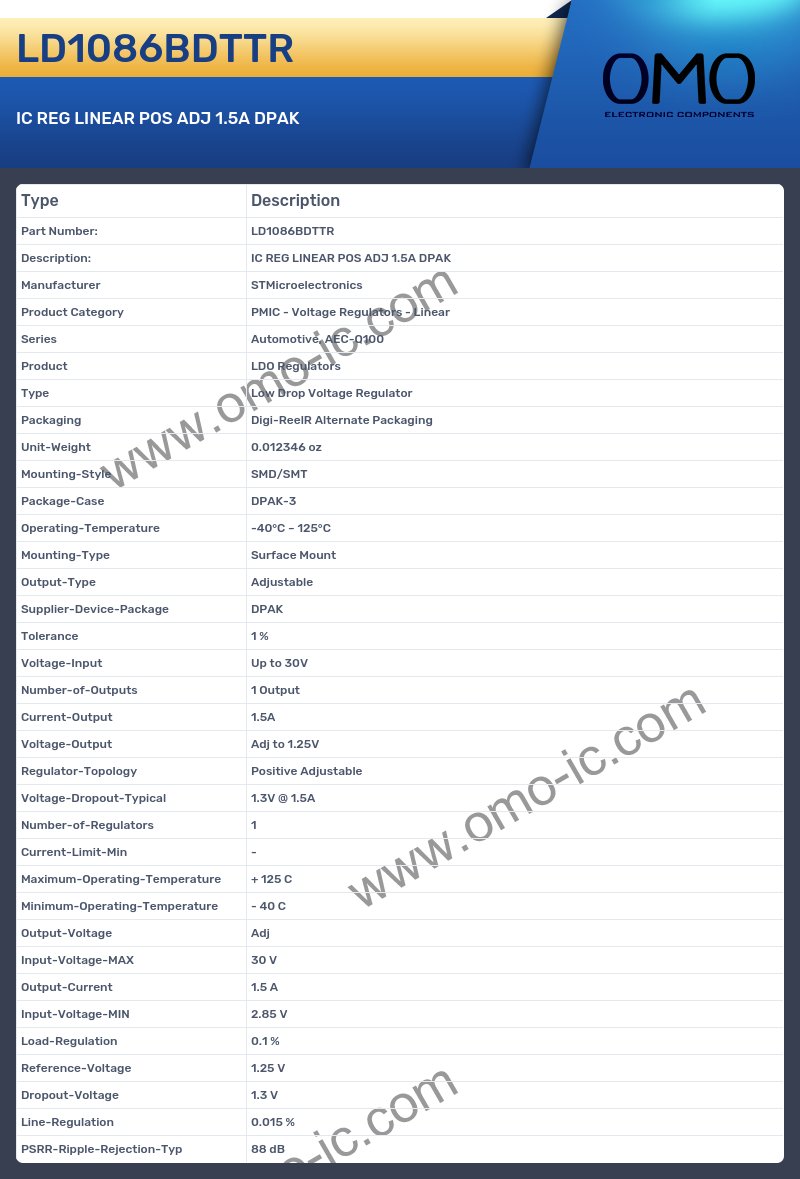

LD1086BDTTR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series Automotive, AEC-Q100
• Product LDO Regulators
• Type Low Drop Voltage Regulator
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.012346 oz
• Mounting-Style SMD/SMT
• Package-Case DPAK-3
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package DPAK
• Tolerance 1 %
• Voltage-Input Up to 30V
• Number-of-Outputs 1 Output
• Current-Output 1.5A
• Voltage-Output Adj to 1.25V
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical 1.3V @ 1.5A
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage Adj
• Input-Voltage-MAX 30 V
• Output-Current 1.5 A
• Input-Voltage-MIN 2.85 V
• Load-Regulation 0.1 %
• Reference-Voltage 1.25 V
• Dropout-Voltage 1.3 V
• Line-Regulation 0.015 %
• PSRR-Ripple-Rejection-Typ 88 dB
