LD1085D2T-R

LD1085D2T-R Overview

Product belongs to the LD1085D2T series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.079014 oz SMD/SMT Mounting-Style D2PAK-3 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: D2PAK Up to 30V voltage input Number-of-Outputs: 1 Output Output voltage: Adjustable Positive Adjustable regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.25 V to 28 V Maximum Input Voltage: 30 V Output current: 3 A Load regulation is 0.3 %. The voltage regulation accuracy of this product is 1 %. The 1.3 V at 3 A. The maximum 1.5 V at 3 A is 360 mV. This product's 0.2 % is 0.01 %/V.

LD1085D2T-R Image

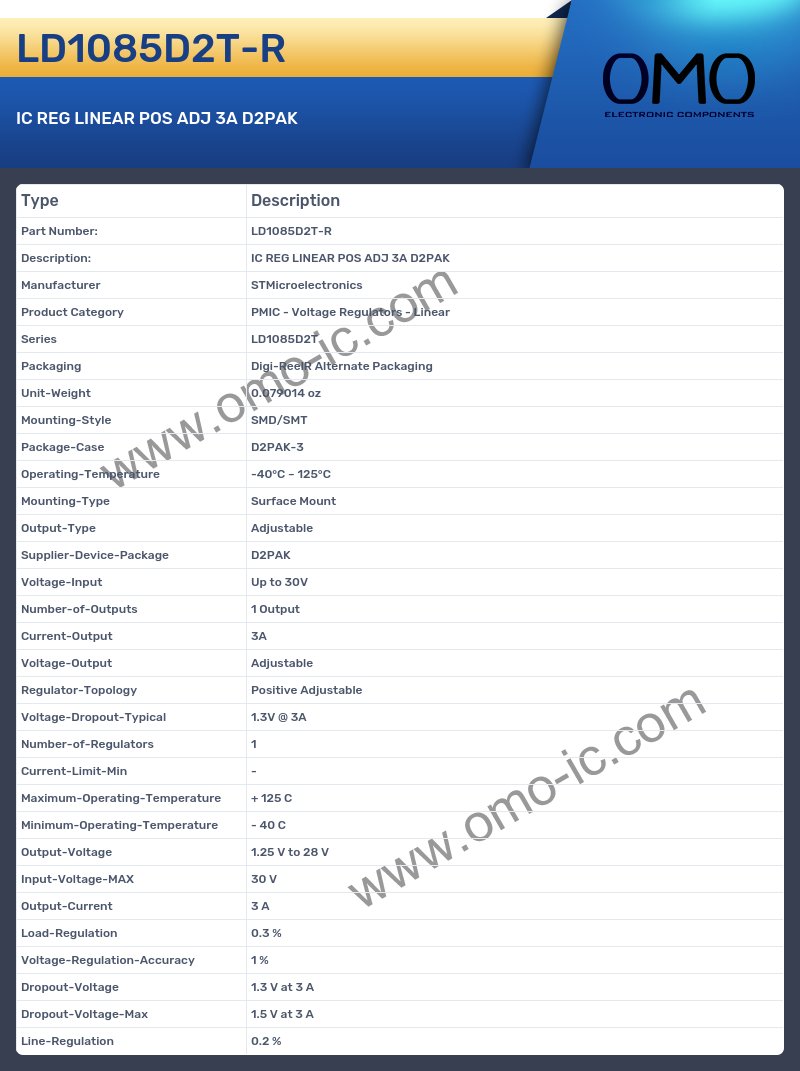

LD1085D2T-R Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series LD1085D2T
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.079014 oz
• Mounting-Style SMD/SMT
• Package-Case D2PAK-3
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package D2PAK
• Voltage-Input Up to 30V
• Number-of-Outputs 1 Output
• Current-Output 3A
• Voltage-Output Adjustable
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical 1.3V @ 3A
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.25 V to 28 V
• Input-Voltage-MAX 30 V
• Output-Current 3 A
• Load-Regulation 0.3 %
• Voltage-Regulation-Accuracy 1 %
• Dropout-Voltage 1.3 V at 3 A
• Dropout-Voltage-Max 1.5 V at 3 A
• Line-Regulation 0.2 %
