L99LD01TR-E

L99LD01TR-E Overview

Product belongs to the LED Drivers series. This product is categorized as LED Driver Type: DC DC Controller Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.027302 oz SMD/SMT Mounting-Style The 7 mm is at most 7.6 mm. LQFP-32 This product's 100kHz ~ 500kHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Output-Type: Contant Current Versatile Automotive applications for maximum usability Supplier device package: 32-LQFP (7x7) Number-of-Outputs: 2 Current-Output-Channel is - This product has No. Topology: Flyback, Step-Down (Buck), Step-Up (Boost) feedback The maximum voltage supply is 24V. The minimum 5.6V required for voltage supply. Output voltage: - Dimming control is done through PWM communication. Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C The operating frequency is 100 kHz to 500 kHz. Output current: 50 mA Maximum supply current: 20 mA

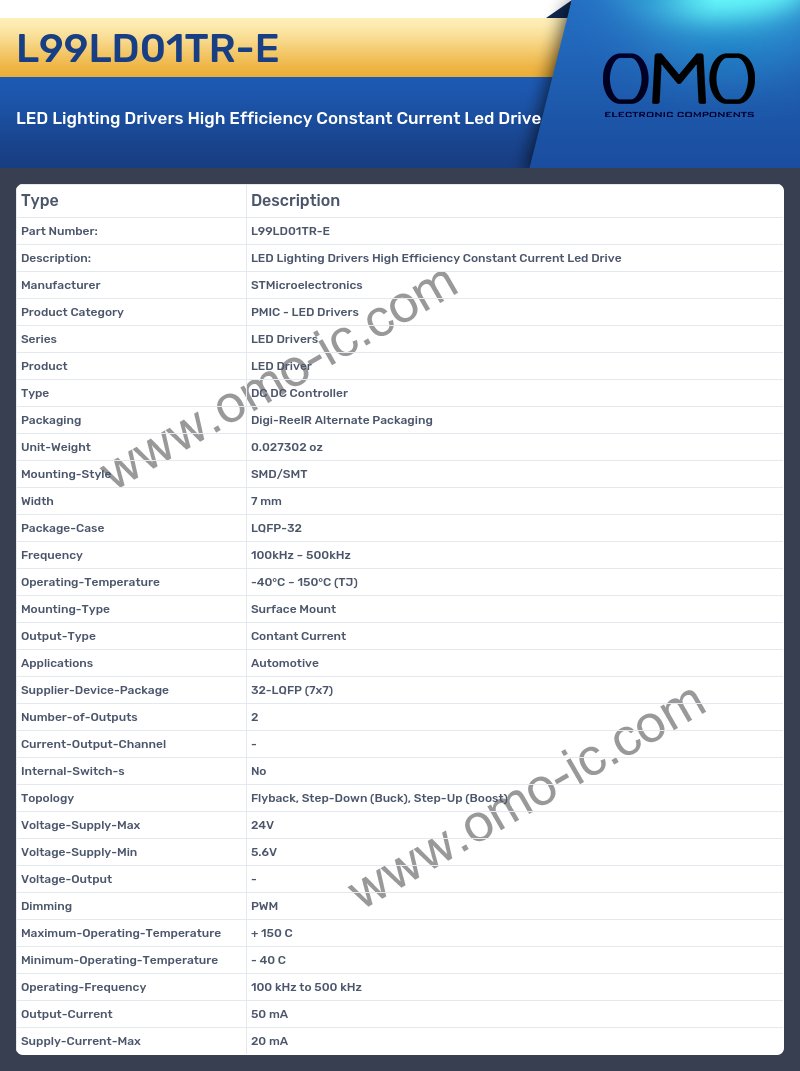

L99LD01TR-E Image

L99LD01TR-E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - LED Drivers
• Series LED Drivers
• Product LED Driver
• Type DC DC Controller
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.027302 oz
• Mounting-Style SMD/SMT
• Width 7 mm
• Package-Case LQFP-32
• Frequency 100kHz ~ 500kHz
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Contant Current
• Applications Automotive
• Supplier-Device-Package 32-LQFP (7x7)
• Number-of-Outputs 2
• Current-Output-Channel -
• Internal-Switch-s No
• Topology Flyback, Step-Down (Buck), Step-Up (Boost)
• Voltage-Supply-Max 24V
• Voltage-Supply-Min 5.6V
• Voltage-Output -
• Dimming PWM
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Operating-Frequency 100 kHz to 500 kHz
• Output-Current 50 mA
• Supply-Current-Max 20 mA
