L9997ND013TR

L9997ND013TR Overview

Product belongs to the L9997ND series. This product is categorized as Half-Bridge Drivers Type: Non-Inverting Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.009408 oz SMD/SMT Mounting-Style SO-20 CMOS, DMOS is the technology used. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Product function is Driver - Fully Integrated, Control and Power Stage. Versatile Automotive applications for maximum usability Interface: Parallel Voltage Supply Range: 7 V ~ 16.5 V Supplier device package: 20-SO Configuration Non-Inverting Number-of-Outputs: 2 The Half Bridge (2). Voltage-Load range is 7 V ~ 16.5 V. Brushed DC motor type is used for high-performance and efficient operation. Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C 6 mA is 92 nA. Output current: 1.8 A This product has a 30 us of 16 ns. This product has a 30 us of 16 ns. Maximum supply voltage of 16.5 V Minimum supply voltage is 7 V Number-of-Drivers: 2 Driver

L9997ND013TR Image

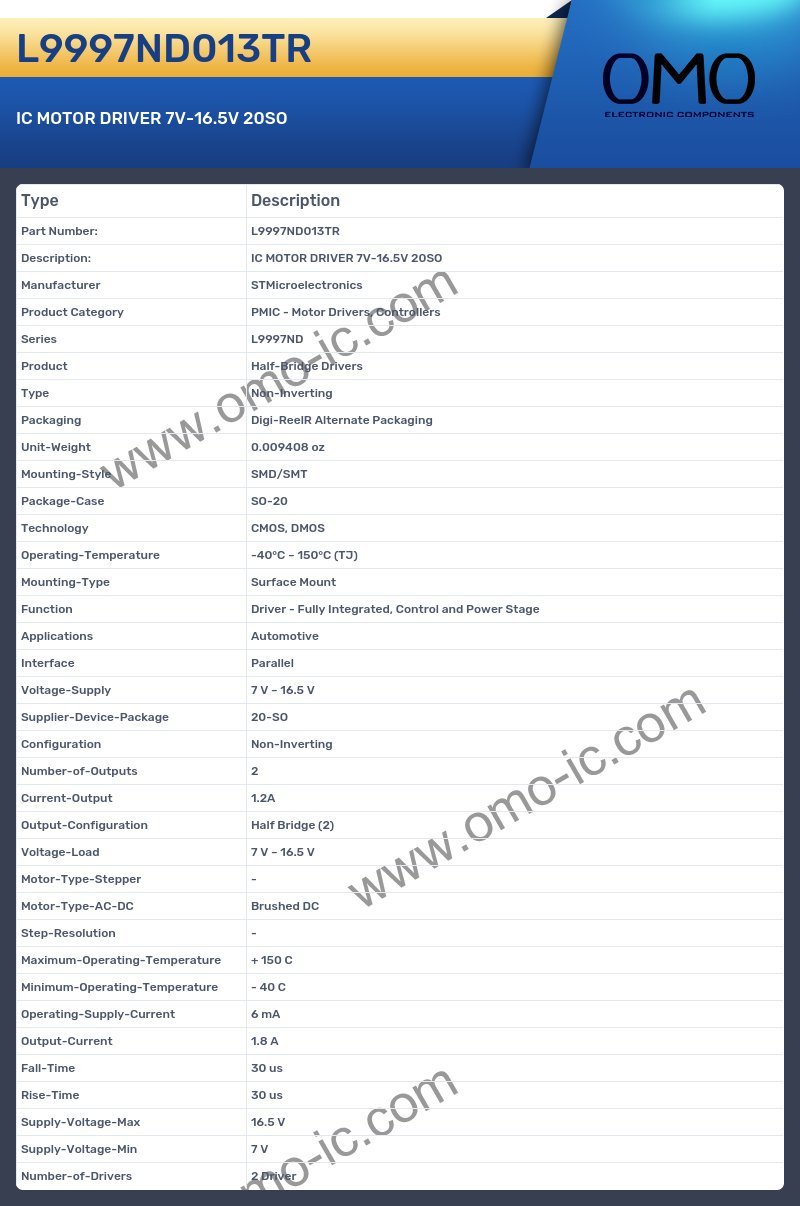

L9997ND013TR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Motor Drivers, Controllers
• Series L9997ND
• Product Half-Bridge Drivers
• Type Non-Inverting
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.009408 oz
• Mounting-Style SMD/SMT
• Package-Case SO-20
• Technology CMOS, DMOS
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Function Driver - Fully Integrated, Control and Power Stage
• Applications Automotive
• Interface Parallel
• Voltage-Supply 7 V ~ 16.5 V
• Supplier-Device-Package 20-SO
• Configuration Non-Inverting
• Number-of-Outputs 2
• Current-Output 1.2A
• Output-Configuration Half Bridge (2)
• Voltage-Load 7 V ~ 16.5 V
• Motor-Type-Stepper -
• Motor-Type-AC-DC Brushed DC
• Step-Resolution -
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 6 mA
• Output-Current 1.8 A
• Fall-Time 30 us
• Rise-Time 30 us
• Supply-Voltage-Max 16.5 V
• Supply-Voltage-Min 7 V
• Number-of-Drivers 2 Driver
