L9825 Overview

Product belongs to the L9825 series. Tube Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style PowerSO-20 The - for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Interface: SPI Supplier device package: PowerSO-20 The Ratio-Input:Output for this product is 1899/12/30 1:08:00. Number-of-Outputs: 8 Supply Voltage: 4.5 V ~ 5.5 V The Low Side. The 750 mOhm (Max). Voltage-Load range is 45V (Max). Our product delivers a 1A of 50mA for efficient power management. The Switch-Type is Latched Driver. This product operates at a 4.5 V to 5.5 V supply voltage for reliable performance. Output current: 1 A Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V

L9825 Image

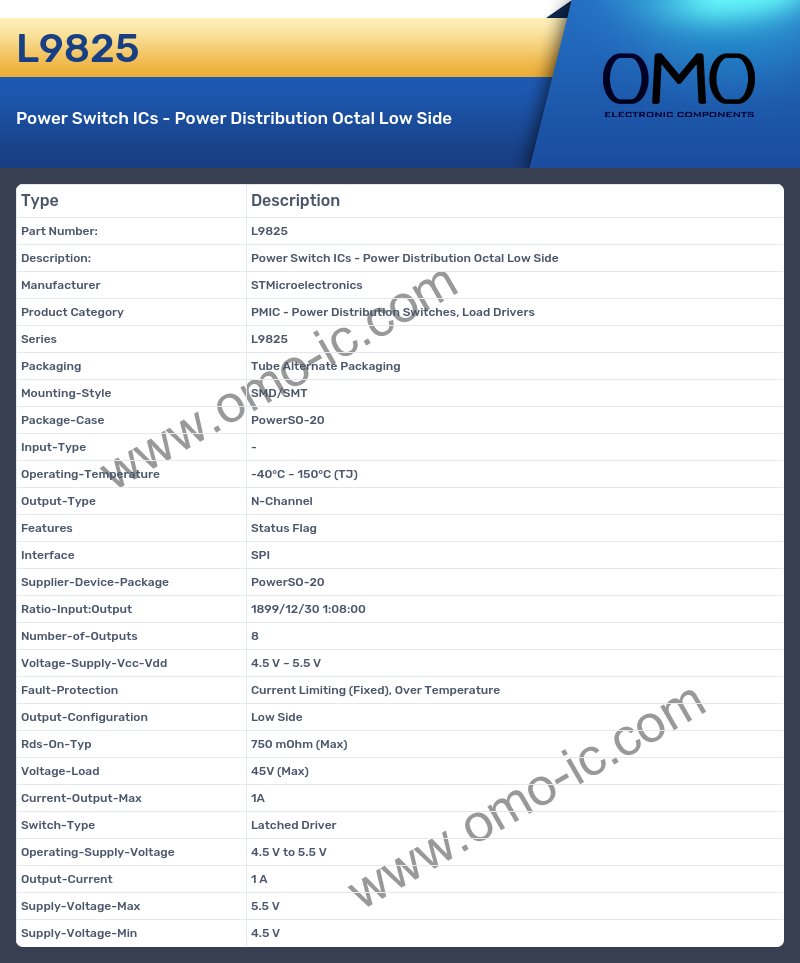

L9825 Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series L9825
• Packaging Tube Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case PowerSO-20
• Input-Type -
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type N-Channel
• Features Status Flag
• Interface SPI
• Supplier-Device-Package PowerSO-20
• Ratio-Input:Output 1899/12/30 1:08:00
• Number-of-Outputs 8
• Voltage-Supply-Vcc-Vdd 4.5 V ~ 5.5 V
• Fault-Protection Current Limiting (Fixed), Over Temperature
• Output-Configuration Low Side
• Rds-On-Typ 750 mOhm (Max)
• Voltage-Load 45V (Max)
• Current-Output-Max 1A
• Switch-Type Latched Driver
• Operating-Supply-Voltage 4.5 V to 5.5 V
• Output-Current 1 A
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
