L7985A

L7985A Overview

Product belongs to the L7985 series. Type: Step Down Switching Regulator Tube is the packaging method for this product Weight of 0.002490 oz SMD/SMT Mounting-Style HSOP-8 Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 8-HSOP Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 250kHz ~ 1MHz for optimal performance. The Positive. Minimum fixed output voltage is 0.6V . The value of No is included as a product attribute. The minimum input voltage is 4.5V. The 38V. Output voltage: Adj Maximum Input Voltage: 38 V Output current: 2 A The product's 4.5 V is 5.1 V.

L7985A Image

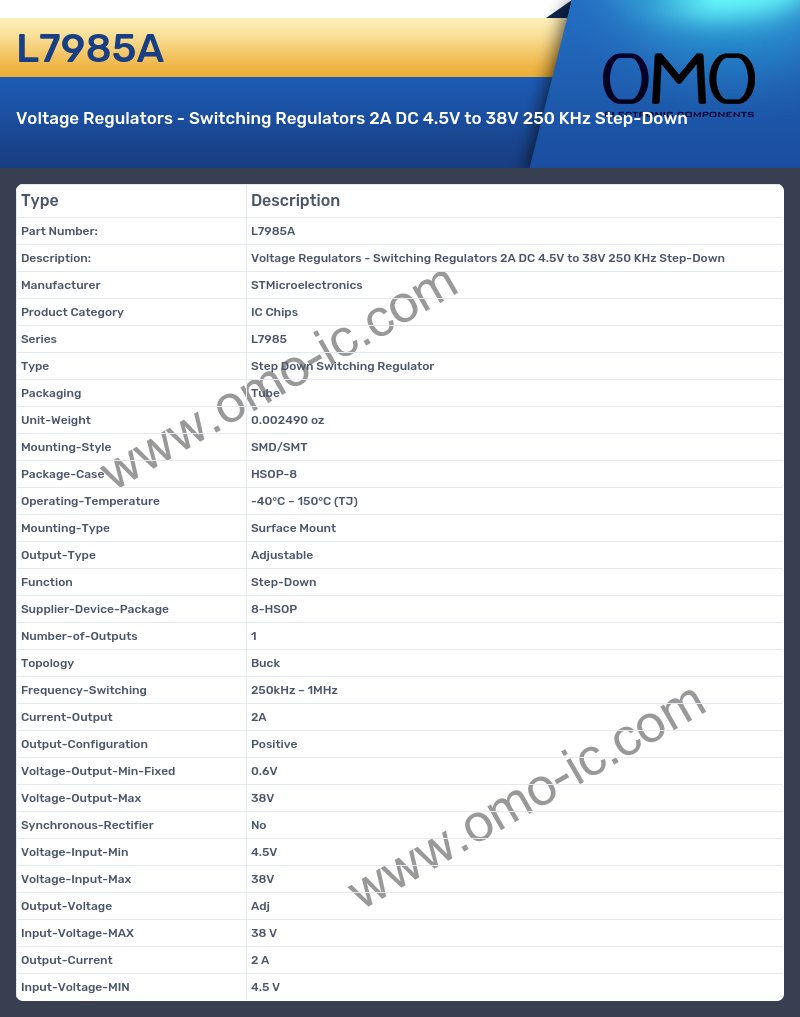

L7985A Specifications

• Manufacturer STMicroelectronics
• Product Category IC Chips
• Series L7985
• Type Step Down Switching Regulator
• Packaging Tube
• Unit-Weight 0.002490 oz
• Mounting-Style SMD/SMT
• Package-Case HSOP-8
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package 8-HSOP
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 250kHz ~ 1MHz
• Current-Output 2A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 0.6V
• Voltage-Output-Max 38V
• Synchronous-Rectifier No
• Voltage-Input-Min 4.5V
• Voltage-Input-Max 38V
• Output-Voltage Adj
• Input-Voltage-MAX 38 V
• Output-Current 2 A
• Input-Voltage-MIN 4.5 V
