L78M09ABDT-TR

L78M09ABDT-TR Overview

Product belongs to the L78M09AB series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.063493 oz SMD/SMT Mounting-Style TO-252 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: D-Pak Up to 35V voltage input Number-of-Outputs: 1 Output voltage: 9V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Polarity: Positive Output voltage: 9 V Maximum Input Voltage: 35 V Output current: 500 mA The product's 35 V is 5.1 V. Load regulation is 180 mV. This product's 100 mV is 0.01 %/V.

L78M09ABDT-TR Image

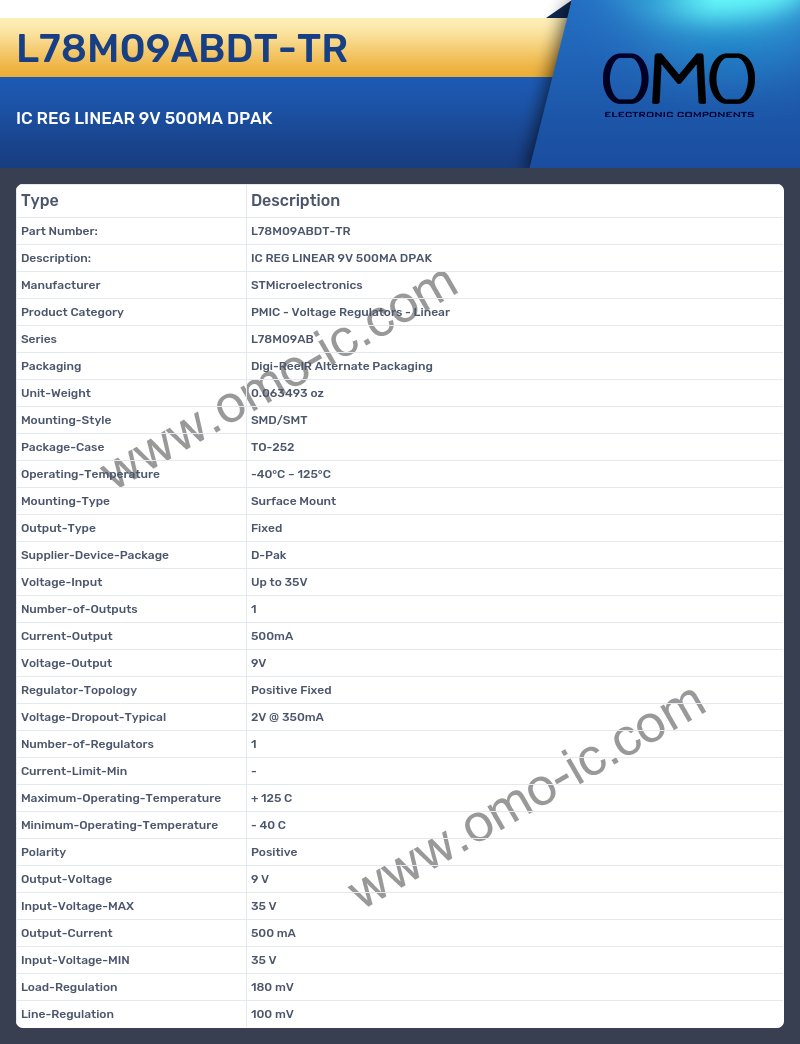

L78M09ABDT-TR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series L78M09AB
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.063493 oz
• Mounting-Style SMD/SMT
• Package-Case TO-252
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package D-Pak
• Voltage-Input Up to 35V
• Number-of-Outputs 1
• Current-Output 500mA
• Voltage-Output 9V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 2V @ 350mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Polarity Positive
• Output-Voltage 9 V
• Input-Voltage-MAX 35 V
• Output-Current 500 mA
• Input-Voltage-MIN 35 V
• Load-Regulation 180 mV
• Line-Regulation 100 mV
