L78L09ACZ-AP

L78L09ACZ-AP Overview

Product belongs to the L78L09AC series. Cut Tape (CT) Alternate Packaging is the packaging method for this product Weight of 0.016000 oz Through Hole Mounting-Style TO-92 Operational temperature range: 0°C ~ 125°C Through Hole mounting type Output-Type: Fixed Supplier device package: TO-92-3 Up to 30V voltage input Number-of-Outputs: 1 Output voltage: 9V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 150 C Minimum operating temperature: 0 C Polarity: Positive Output voltage: 9 V Maximum Input Voltage: 30 V Output current: 100 mA The product's 30 V is 5.1 V. Load regulation is 80 mV. This product's 225 mV is 0.01 %/V.

L78L09ACZ-AP Image

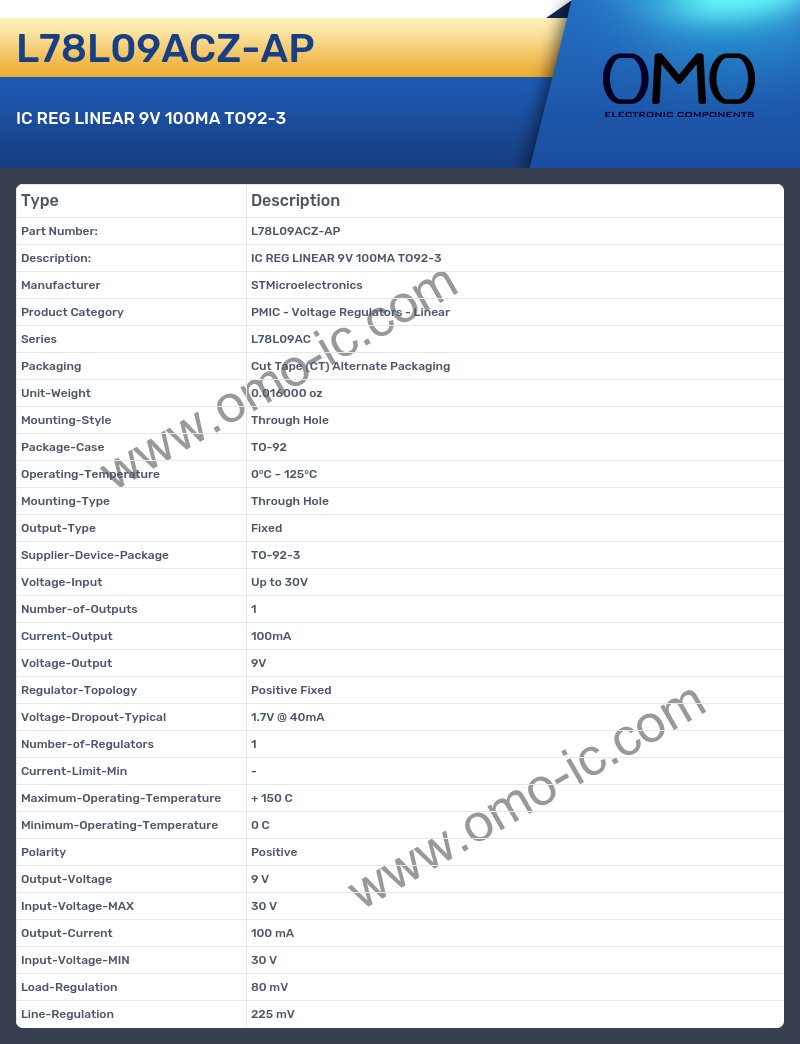

L78L09ACZ-AP Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series L78L09AC
• Packaging Cut Tape (CT) Alternate Packaging
• Unit-Weight 0.016000 oz
• Mounting-Style Through Hole
• Package-Case TO-92
• Operating-Temperature 0°C ~ 125°C
• Mounting-Type Through Hole
• Output-Type Fixed
• Supplier-Device-Package TO-92-3
• Voltage-Input Up to 30V
• Number-of-Outputs 1
• Current-Output 100mA
• Voltage-Output 9V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 1.7V @ 40mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature 0 C
• Polarity Positive
• Output-Voltage 9 V
• Input-Voltage-MAX 30 V
• Output-Current 100 mA
• Input-Voltage-MIN 30 V
• Load-Regulation 80 mV
• Line-Regulation 225 mV
