L6725 Overview

Product belongs to the L6725 series. This product is categorized as Voltage Controllers Tube is the packaging method for this product Weight of 0.007079 oz SMD/SMT Mounting-Style SO-16 Operational temperature range: -40°C ~ 85°C (TA) Output-Type: Transistor Driver Product function is Step-Down. Supplier device package: 16-SO Number-of-Outputs: 1 Topology: Buck feedback Supply Voltage: 4.5 V ~ 18 V This product features 'Frequency-Switching' at 250kHz, 500kHz for optimal performance. The Control-Features include Current Limit, Phase Control, Power Good, Soft Start function. The Positive. Output-Phases: 1 Maximum duty cycle of 100 % The value of Yes is included as a product attribute. Yes enabled Serial Interfaces: - Power-off control: Yes The product's Non-Isolated is non-isolated. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 4.5 V to 18 V supply voltage for reliable performance. Output voltage: 600 mV This product is an Features bootstrap anti-discharging system. 9 mA is 92 nA. Input Voltage Range: 18 V Output current: 20 mA Switching frequency is 550 kHz

L6725 Image

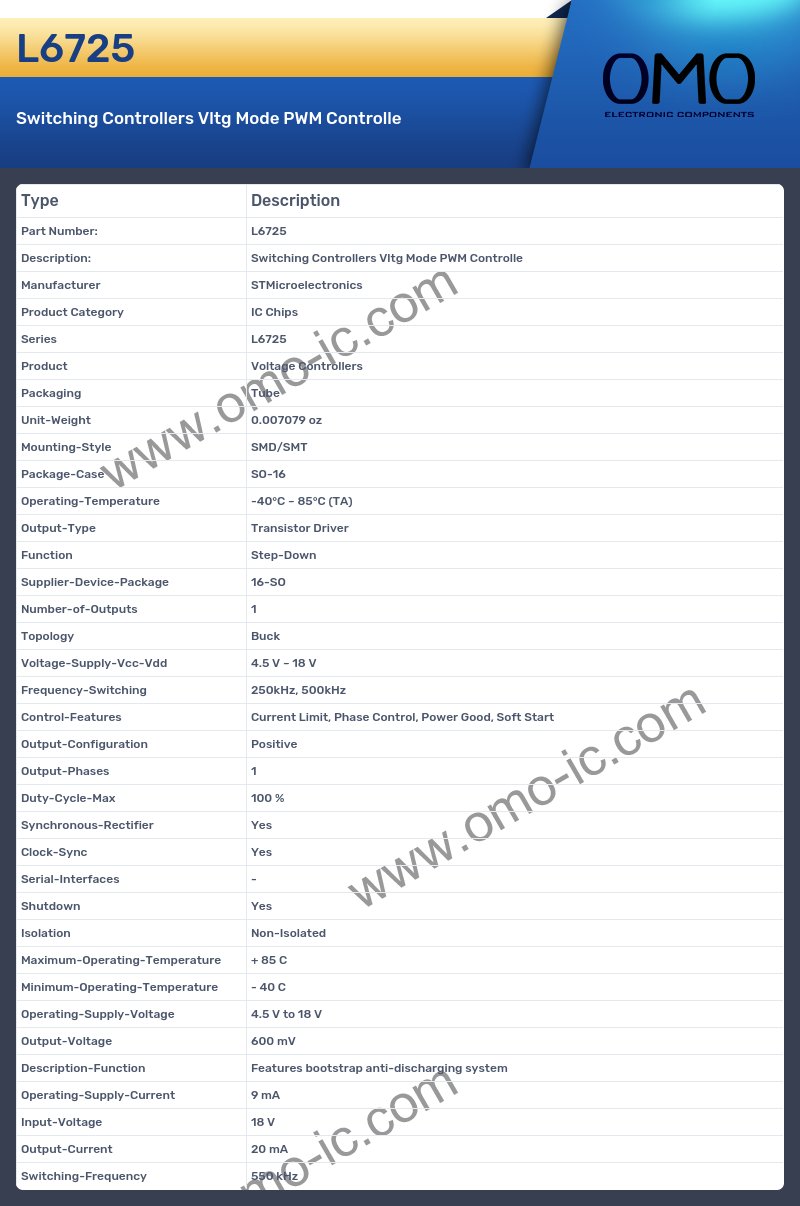

L6725 Specifications

• Manufacturer STMicroelectronics
• Product Category IC Chips
• Series L6725
• Product Voltage Controllers
• Packaging Tube
• Unit-Weight 0.007079 oz
• Mounting-Style SMD/SMT
• Package-Case SO-16
• Operating-Temperature -40°C ~ 85°C (TA)
• Output-Type Transistor Driver
• Function Step-Down
• Supplier-Device-Package 16-SO
• Number-of-Outputs 1
• Topology Buck
• Voltage-Supply-Vcc-Vdd 4.5 V ~ 18 V
• Frequency-Switching 250kHz, 500kHz
• Control-Features Current Limit, Phase Control, Power Good, Soft Start
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 100 %
• Synchronous-Rectifier Yes
• Clock-Sync Yes
• Serial-Interfaces -
• Shutdown Yes
• Isolation Non-Isolated
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 4.5 V to 18 V
• Output-Voltage 600 mV
• Description-Function Features bootstrap anti-discharging system
• Operating-Supply-Current 9 mA
• Input-Voltage 18 V
• Output-Current 20 mA
• Switching-Frequency 550 kHz
