| Mfr. #: | L6566BH |
|---|---|
| Өндіруші: | STMicroelectronics |
| Сипаттама: | Switching Controllers Multimode Controller SMPS 800V |
| Өміршеңдік кезең: | Осы өндірушіден жаңа. |
| Деректер тізімі: | L6566BH Деректер тізімі |
Product belongs to the L6566 series. Tube is the packaging method for this product Weight of 0.019312 oz SMD/SMT Mounting-Style SOIC-16 Narrow Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Supplier device package: 16-SO Output-Isolation: Isolated This product has No. Topology: Flyback feedback Supply Voltage: 8 V ~ 23 V This product features 'Frequency-Switching' at 10kHz ~ 300kHz for optimal performance. The Control-Features include Soft Start function. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 10.6 V to 23 V supply voltage for reliable performance. Output voltage: 5 V 4 mA is 92 nA. Switching frequency is 300 kHz This product has a 40 ns of 16 ns. This product has a 50 ns of 16 ns. Maximum duty cycle of 75 %
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

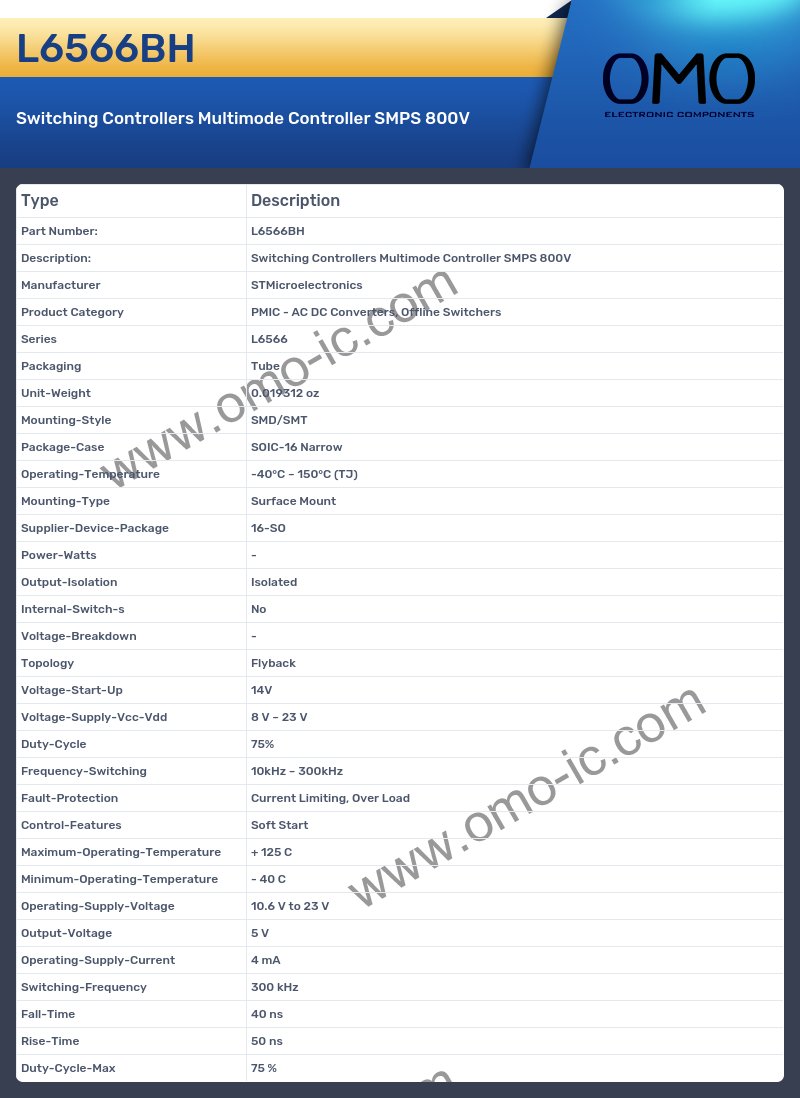

L6566BH Specifications
