L6258E

L6258E Overview

Product belongs to the - series. Tube is the packaging method for this product PowerSO-36 Exposed Bottom Pad DMOS is the technology used. Operational temperature range: 150°C (TJ) Surface Mount mounting type Product function is Driver - Fully Integrated, Control and Power Stage. Versatile General Purpose applications for maximum usability Interface: Parallel Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: PowerSO-36 The Half Bridge (4). Voltage-Load range is 12 V ~ 40 V. Brushed DC motor type is used for high-performance and efficient operation.

L6258E Image

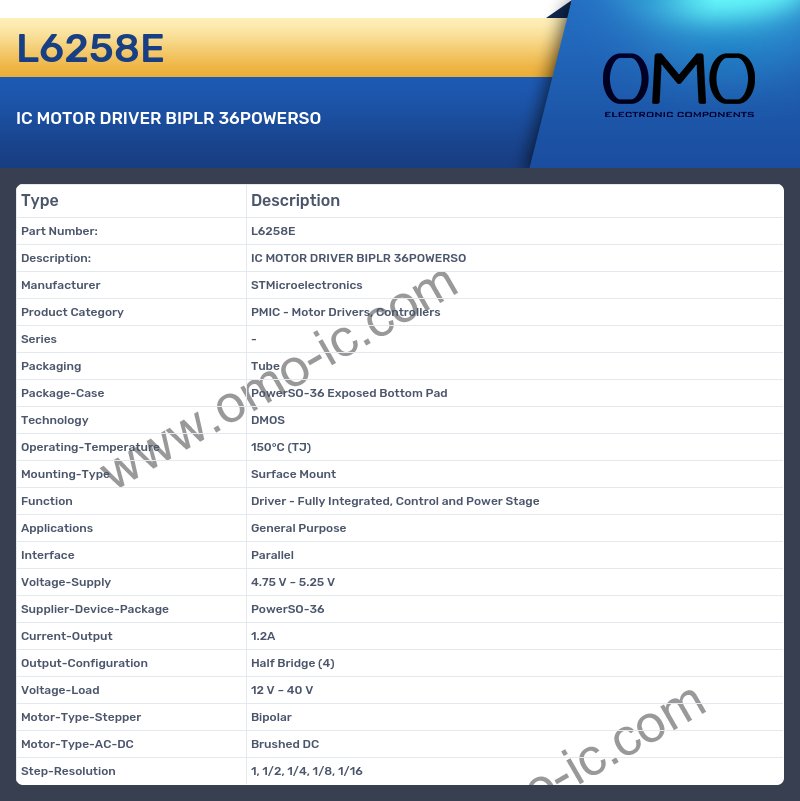

L6258E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Motor Drivers, Controllers
• Series -
• Packaging Tube
• Package-Case PowerSO-36 Exposed Bottom Pad
• Technology DMOS
• Operating-Temperature 150°C (TJ)
• Mounting-Type Surface Mount
• Function Driver - Fully Integrated, Control and Power Stage
• Applications General Purpose
• Interface Parallel
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package PowerSO-36
• Current-Output 1.2A
• Output-Configuration Half Bridge (4)
• Voltage-Load 12 V ~ 40 V
• Motor-Type-Stepper Bipolar
• Motor-Type-AC-DC Brushed DC
• Step-Resolution 1, 1/2, 1/4, 1/8, 1/16
