L6235D013TR

L6235D013TR Overview

Product belongs to the L6235 series. Type: Driver Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.010857 oz SMD/SMT Mounting-Style Wide - 40 C to + 150 C operating temperature range for diverse applications SO-24 DMOS is the technology used. Operational temperature range: -25°C ~ 125°C (TJ) Surface Mount mounting type Product function is Driver - Fully Integrated, Control and Power Stage. Versatile General Purpose applications for maximum usability Interface: Parallel Voltage Supply Range: 12 V ~ 52 V Supplier device package: 24-SO The Half Bridge (3). Voltage-Load range is 12 V ~ 52 V. Brushless DC (BLDC) motor type is used for high-performance and efficient operation. This product operates at a 7 V to 52 V supply voltage for reliable performance. 6 mA is 92 nA.

L6235D013TR Image

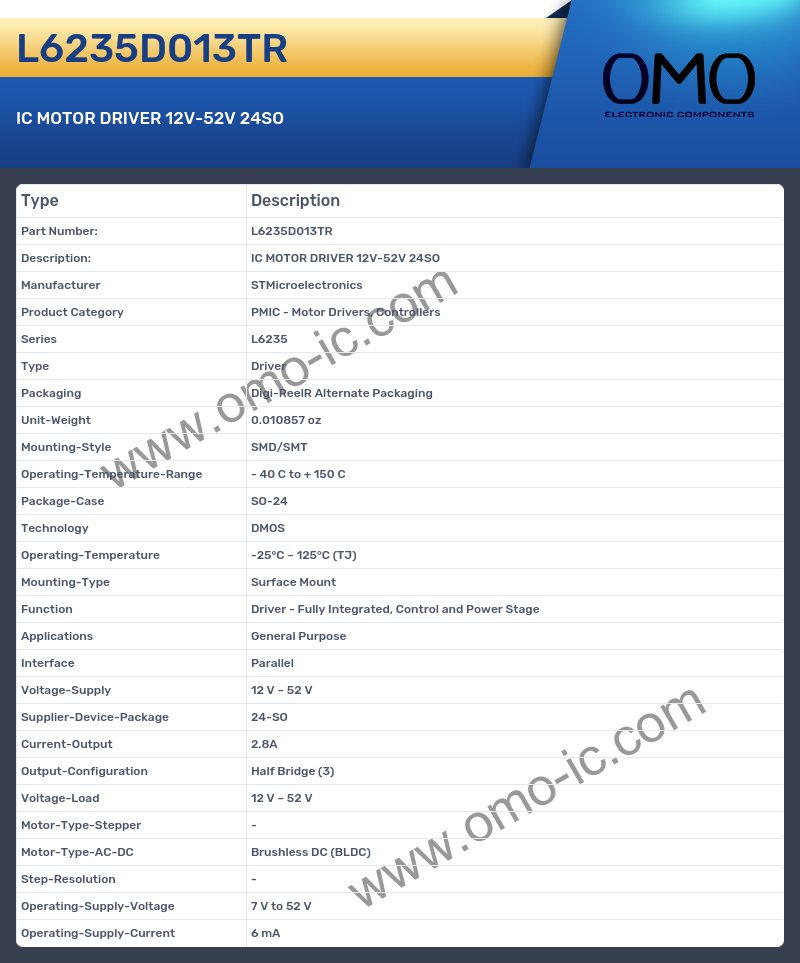

L6235D013TR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Motor Drivers, Controllers
• Series L6235
• Type Driver
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.010857 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 150 C
• Package-Case SO-24
• Technology DMOS
• Operating-Temperature -25°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Function Driver - Fully Integrated, Control and Power Stage
• Applications General Purpose
• Interface Parallel
• Voltage-Supply 12 V ~ 52 V
• Supplier-Device-Package 24-SO
• Current-Output 2.8A
• Output-Configuration Half Bridge (3)
• Voltage-Load 12 V ~ 52 V
• Motor-Type-Stepper -
• Motor-Type-AC-DC Brushless DC (BLDC)
• Step-Resolution -
• Operating-Supply-Voltage 7 V to 52 V
• Operating-Supply-Current 6 mA
