L5972D013TR

L5972D013TR Overview

Product belongs to the L5972 series. Type: Charge Pump Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.017870 oz SMD/SMT Mounting-Style SO-8 Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 8-SO Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 250kHz for optimal performance. The Positive. Minimum fixed output voltage is 1.235V . The value of No is included as a product attribute. The minimum input voltage is 4.4V. The 36V. Output voltage: 1.235 V to 35 V Maximum Input Voltage: 36 V Output current: 2 A Switching frequency is 250 kHz

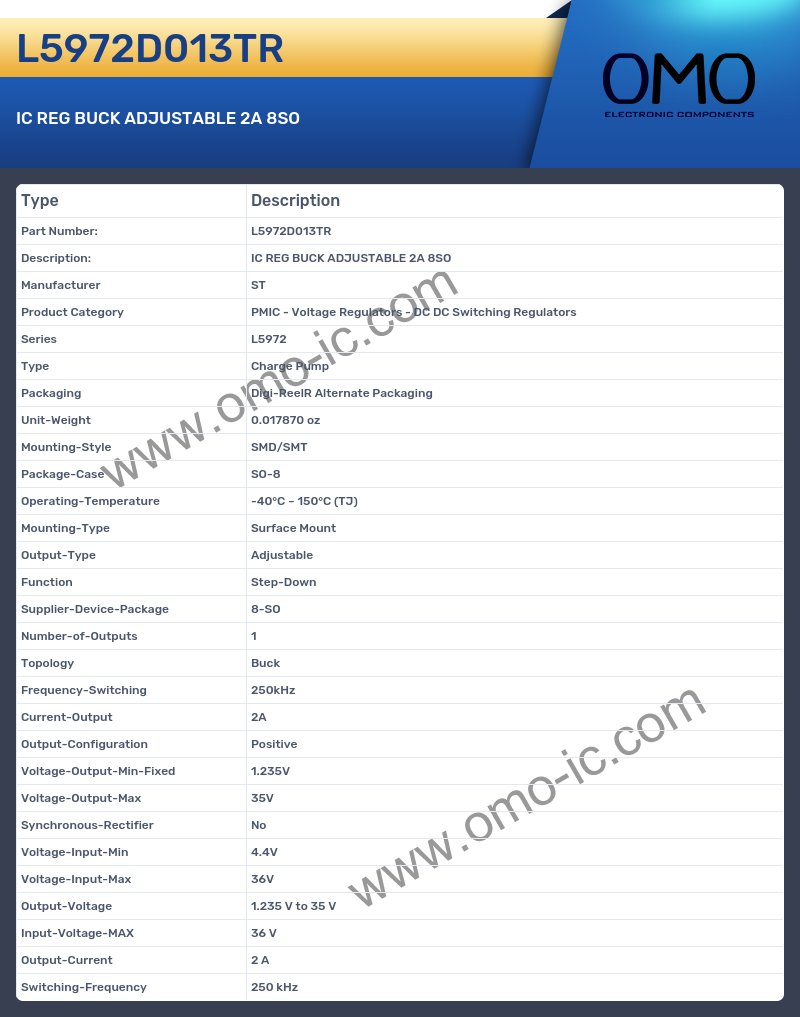

L5972D013TR Image

L5972D013TR Specifications

• Manufacturer ST
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series L5972
• Type Charge Pump
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.017870 oz
• Mounting-Style SMD/SMT
• Package-Case SO-8
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package 8-SO
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 250kHz
• Current-Output 2A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 1.235V
• Voltage-Output-Max 35V
• Synchronous-Rectifier No
• Voltage-Input-Min 4.4V
• Voltage-Input-Max 36V
• Output-Voltage 1.235 V to 35 V
• Input-Voltage-MAX 36 V
• Output-Current 2 A
• Switching-Frequency 250 kHz
