L4941BDT-TR

L4941BDT-TR Overview

Product belongs to the L4941 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.012346 oz SMD/SMT Mounting-Style DPAK-3 Operational temperature range: -40°C ~ 150°C Surface Mount mounting type Output-Type: Fixed Supplier device package: D-Pak Up to 16V voltage input Number-of-Outputs: 1 Output Output voltage: 5V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Output voltage: 5 V Maximum Input Voltage: 16 V Output current: 1 A Load regulation is 20 mV. The voltage regulation accuracy of this product is 4 %. Input bias current of 20 mA This product has a 40 mA of 7 mA, making it ideal for low-power applications. The 0.25 V at 500 mA. The maximum 700 mV is 360 mV. This product's 20 mV is 0.01 %/V.

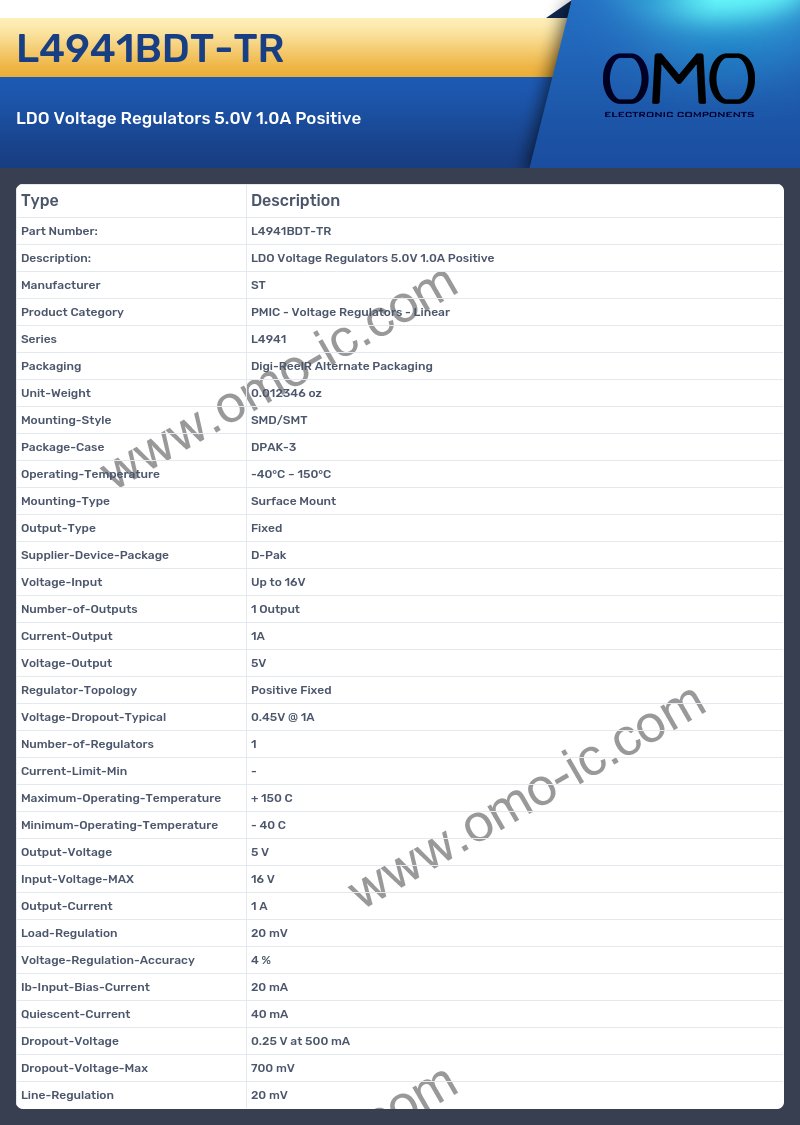

L4941BDT-TR Image

L4941BDT-TR Specifications

• Manufacturer ST
• Product Category PMIC - Voltage Regulators - Linear
• Series L4941
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.012346 oz
• Mounting-Style SMD/SMT
• Package-Case DPAK-3
• Operating-Temperature -40°C ~ 150°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package D-Pak
• Voltage-Input Up to 16V
• Number-of-Outputs 1 Output
• Current-Output 1A
• Voltage-Output 5V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.45V @ 1A
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 5 V
• Input-Voltage-MAX 16 V
• Output-Current 1 A
• Load-Regulation 20 mV
• Voltage-Regulation-Accuracy 4 %
• Ib-Input-Bias-Current 20 mA
• Quiescent-Current 40 mA
• Dropout-Voltage 0.25 V at 500 mA
• Dropout-Voltage-Max 700 mV
• Line-Regulation 20 mV
