ISO7420D

ISO7420D Overview

Product belongs to the - series. Type: General Purpose Tube Alternate Packaging is the packaging method for this product 8-SOIC (0.154", 3.90mm Width) Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 105°C Number of channels: 2 Voltage Supply Range: 3.15 V ~ 3.45 V, 4.75 V ~ 5.25 V Supplier device package: 8-SOIC This product's Unidirectional This product is designed with 2500Vrms voltage isolation for maximum safety and reliability. This product is designed with No isolated power for maximum safety and reliability. The product has 2000/2/1 0:00:00 inputs from Side 1 to Side 2. Minimum 25kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 14ns, 14ns The minimum pulse width distortion is 3.7ns.

ISO7420D Image

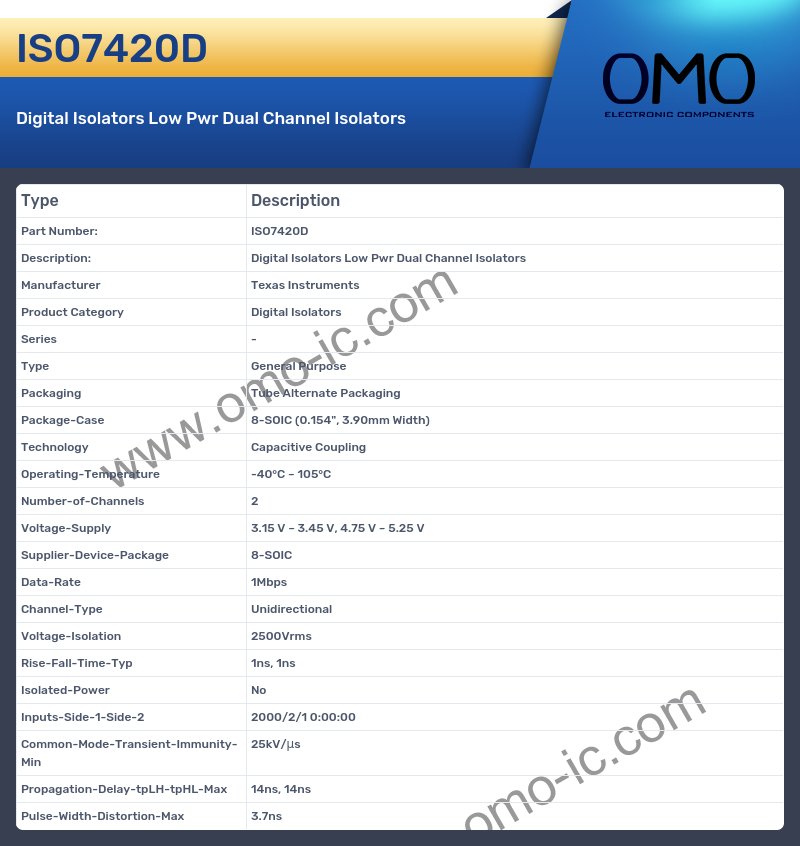

ISO7420D Specifications

• Manufacturer Texas Instruments
• Product Category Digital Isolators
• Series -
• Type General Purpose
• Packaging Tube Alternate Packaging
• Package-Case 8-SOIC (0.154", 3.90mm Width)
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 105°C
• Number-of-Channels 2
• Voltage-Supply 3.15 V ~ 3.45 V, 4.75 V ~ 5.25 V
• Supplier-Device-Package 8-SOIC
• Data-Rate 1Mbps
• Channel-Type Unidirectional
• Voltage-Isolation 2500Vrms
• Rise-Fall-Time-Typ 1ns, 1ns
• Isolated-Power No
• Inputs-Side-1-Side-2 2000/2/1 0:00:00
• Common-Mode-Transient-Immunity-Min 25kV/μs
• Propagation-Delay-tpLH-tpHL-Max 14ns, 14ns
• Pulse-Width-Distortion-Max 3.7ns
