IRF820

IRF820 Overview

Product belongs to the IRF/SIHF820 series. Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 50 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 16 ns of 16 ns. This product has a 8.6 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 2.5 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 500 V. The 3 Ohms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 33 ns This product has a 8 ns. This product operates in Enhancement channel mode for optimal performance.

IRF820 Image

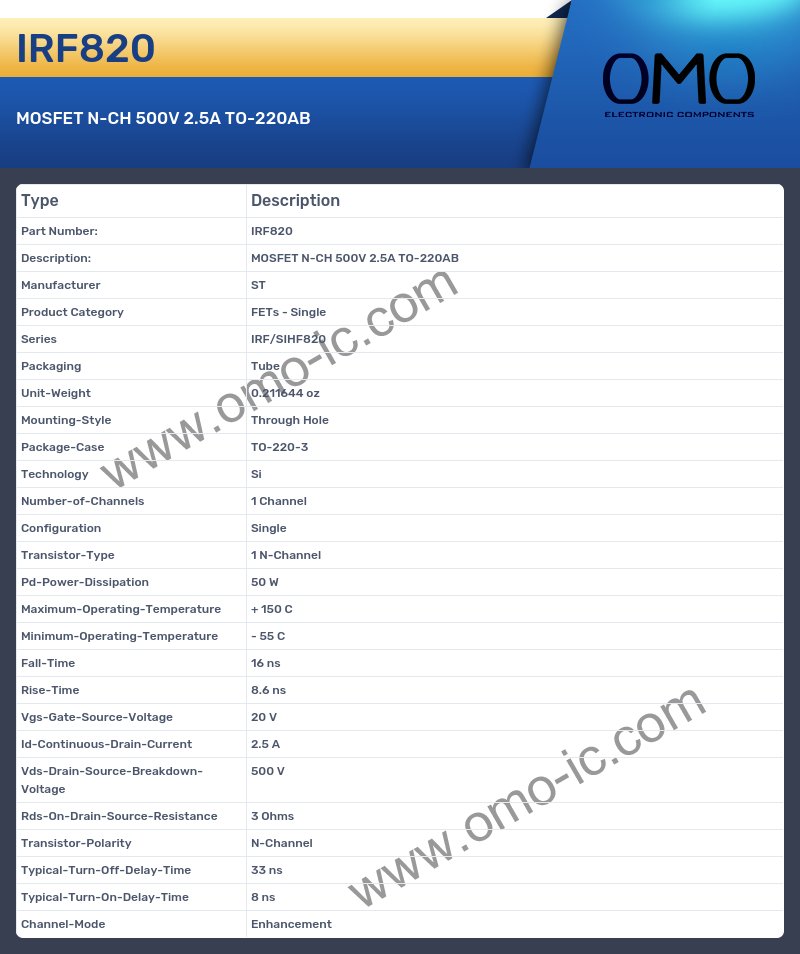

IRF820 Specifications

• Manufacturer ST
• Product Category FETs - Single
• Series IRF/SIHF820
• Packaging Tube
• Unit-Weight 0.211644 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 50 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 16 ns
• Rise-Time 8.6 ns
• Vgs-Gate-Source-Voltage 20 V
• Id-Continuous-Drain-Current 2.5 A
• Vds-Drain-Source-Breakdown-Voltage 500 V
• Rds-On-Drain-Source-Resistance 3 Ohms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 33 ns
• Typical-Turn-On-Delay-Time 8 ns
• Channel-Mode Enhancement
