HV9123P-G

HV9123P-G Overview

Product belongs to the - series. Tube is the packaging method for this product Weight of 0.057419 oz Through Hole Mounting-Style PDIP-16 Operational temperature range: -55°C ~ 125°C (TJ) Output-Type: Transistor Driver Product function is Step-Up/Step-Down. Supplier device package: 16-PDIP Number-of-Outputs: 1 Topology: Flyback feedback Supply Voltage: 10 V ~ 450 V This product features 'Frequency-Switching' at 3MHz for optimal performance. The Control-Features include Enable, Frequency Control, Reset function. The Positive. Output-Phases: 1 Maximum duty cycle of 99 % The value of No is included as a product attribute. No enabled Serial Interfaces: - Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C This product operates at a 9 V to 13.5 V supply voltage for reliable performance. Output voltage: 4 V to 13.5 V 0.75 mA is 92 nA. Switching frequency is 1 MHz This product has a 20 ns of 16 ns. This product has a 30 ns of 16 ns.

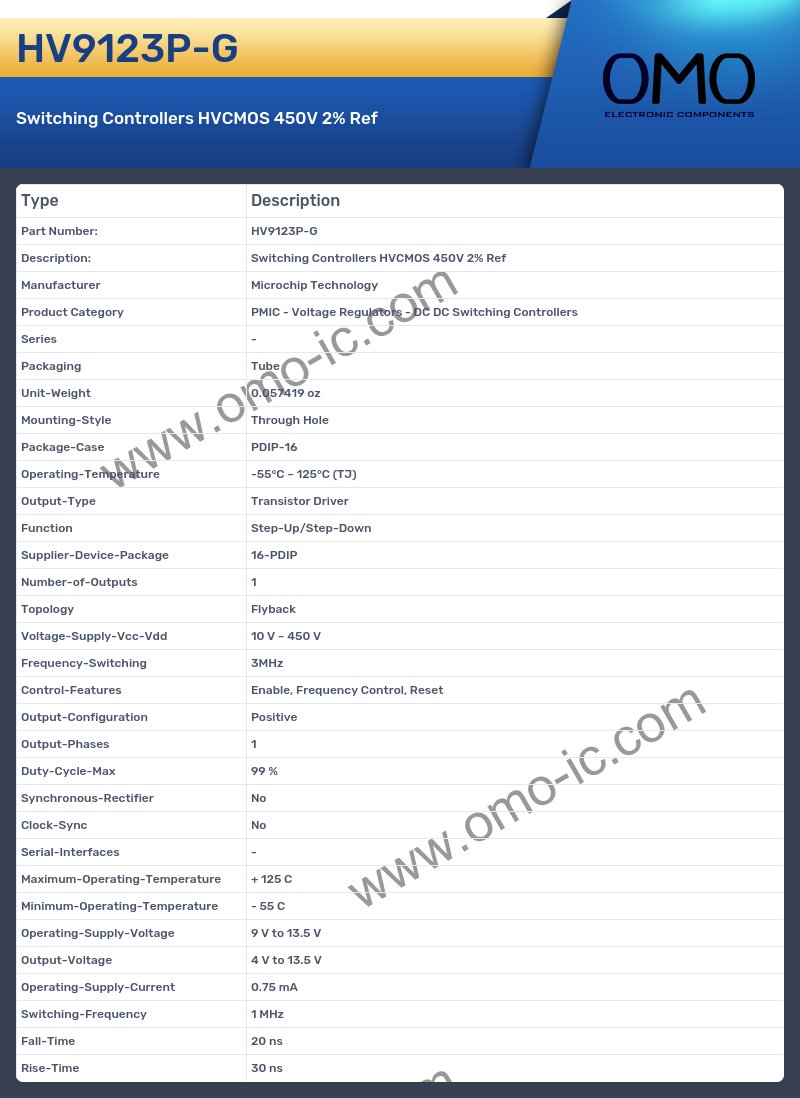

HV9123P-G Image

HV9123P-G Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series -
• Packaging Tube
• Unit-Weight 0.057419 oz
• Mounting-Style Through Hole
• Package-Case PDIP-16
• Operating-Temperature -55°C ~ 125°C (TJ)
• Output-Type Transistor Driver
• Function Step-Up/Step-Down
• Supplier-Device-Package 16-PDIP
• Number-of-Outputs 1
• Topology Flyback
• Voltage-Supply-Vcc-Vdd 10 V ~ 450 V
• Frequency-Switching 3MHz
• Control-Features Enable, Frequency Control, Reset
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 99 %
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Operating-Supply-Voltage 9 V to 13.5 V
• Output-Voltage 4 V to 13.5 V
• Operating-Supply-Current 0.75 mA
• Switching-Frequency 1 MHz
• Fall-Time 20 ns
• Rise-Time 30 ns
