HMC636ST89TR

HMC636ST89TR Overview

Product belongs to the HMC636 series. Type: High Linearity Low Noise Gain Block Amplifier Tape & Reel (TR) Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SOT-89-4 This product's 200MHz ~ 4GHz range is 0Hz to 2.2GHz. GaAs is the technology used. Frequency Bandwidth: 0.2 GHz to 4 GHz Number of channels: 1 Channel Voltage Supply Range: 5V Supplier device package: SOT-89 This product has a 175mA of 200μA. The device offers a 10dB of 26dB. Test-Frequency is -. P1dB is 23dBm RF-Type: General Purpose Power-off control: 0.86 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. 155 mA is 92 nA. The operating frequency is 0.2 GHz to 4 GHz. NF-Noise-Figure is 2.5 dB 39 dBm OIP3 third-order intercept The 10 dB is 12 dB.

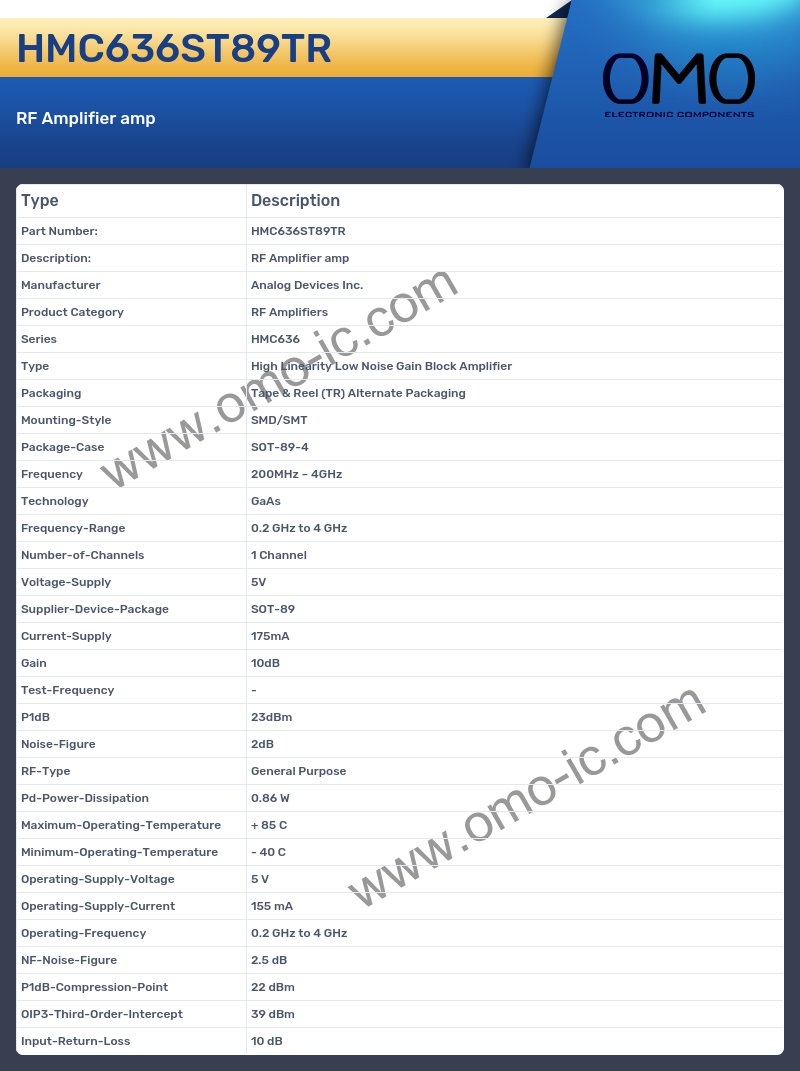

HMC636ST89TR Image

HMC636ST89TR Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Amplifiers
• Series HMC636
• Type High Linearity Low Noise Gain Block Amplifier
• Packaging Tape & Reel (TR) Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case SOT-89-4
• Frequency 200MHz ~ 4GHz
• Technology GaAs
• Frequency-Range 0.2 GHz to 4 GHz
• Number-of-Channels 1 Channel
• Voltage-Supply 5V
• Supplier-Device-Package SOT-89
• Current-Supply 175mA
• Gain 10dB
• Test-Frequency -
• P1dB 23dBm
• Noise-Figure 2dB
• RF-Type General Purpose
• Pd-Power-Dissipation 0.86 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Operating-Supply-Current 155 mA
• Operating-Frequency 0.2 GHz to 4 GHz
• NF-Noise-Figure 2.5 dB
• P1dB-Compression-Point 22 dBm
• OIP3-Third-Order-Intercept 39 dBm
• Input-Return-Loss 10 dB
