HMC564LC4TR

HMC564LC4TR Overview

Product belongs to the HMC564G series. Type: RF Amplifier Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.032741 oz SMD/SMT Mounting-Style QFN-24 This product's 7GHz ~ 14GHz range is 0Hz to 2.2GHz. GaAs is the technology used. Frequency Bandwidth: 7 GHz to 14 GHz Number of channels: 1 Channel Voltage Supply Range: 2.5 V ~ 3.5 V Supplier device package: 24-QFN (4x4) This product has a 75mA of 200μA. The device offers a 17dB of 26dB. The amplifier is of LNA type. Test-Frequency is -. P1dB is 13dBm RF-Type: General Purpose Power-off control: 1.16 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 3 V supply voltage for reliable performance. 82 mA is 92 nA. The operating frequency is 14 GHz. NF-Noise-Figure is 1.8 dB 25 dBm OIP3 third-order intercept The 15 dB is 12 dB.

HMC564LC4TR Image

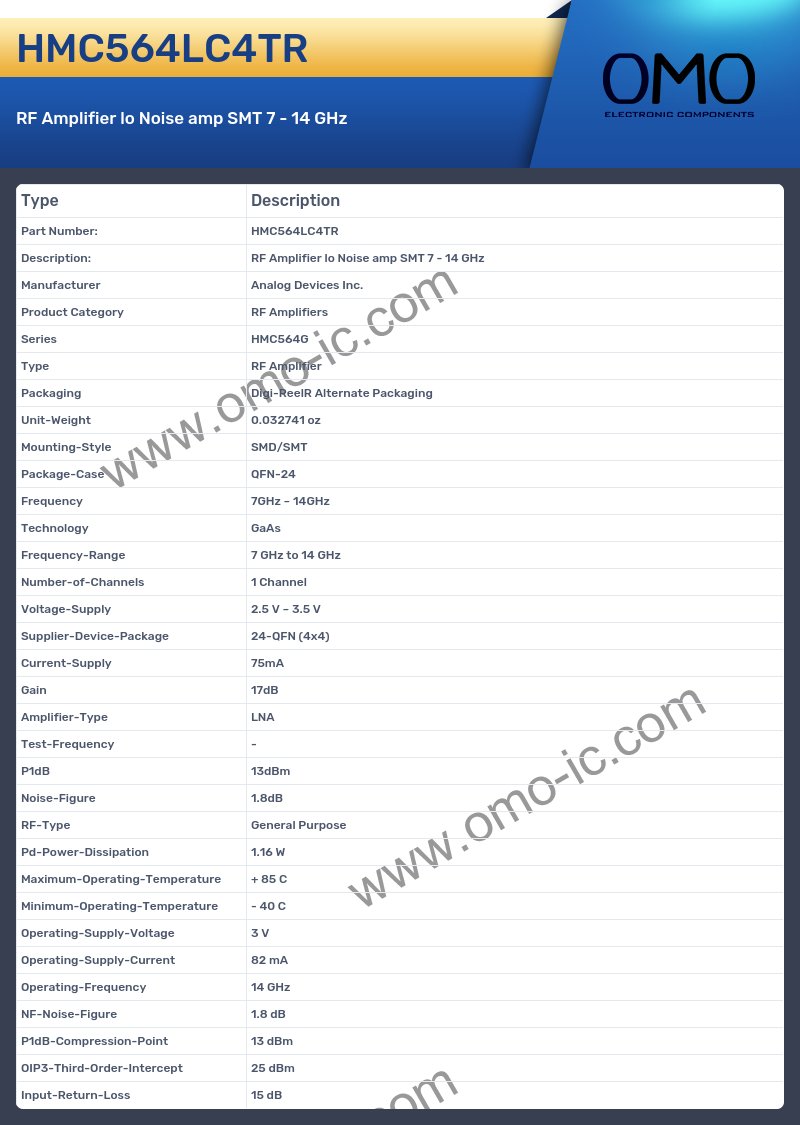

HMC564LC4TR Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Amplifiers
• Series HMC564G
• Type RF Amplifier
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.032741 oz
• Mounting-Style SMD/SMT
• Package-Case QFN-24
• Frequency 7GHz ~ 14GHz
• Technology GaAs
• Frequency-Range 7 GHz to 14 GHz
• Number-of-Channels 1 Channel
• Voltage-Supply 2.5 V ~ 3.5 V
• Supplier-Device-Package 24-QFN (4x4)
• Current-Supply 75mA
• Gain 17dB
• Amplifier-Type LNA
• Test-Frequency -
• P1dB 13dBm
• Noise-Figure 1.8dB
• RF-Type General Purpose
• Pd-Power-Dissipation 1.16 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 3 V
• Operating-Supply-Current 82 mA
• Operating-Frequency 14 GHz
• NF-Noise-Figure 1.8 dB
• P1dB-Compression-Point 13 dBm
• OIP3-Third-Order-Intercept 25 dBm
• Input-Return-Loss 15 dB
