HMC441LM1

HMC441LM1 Overview

Product belongs to the HMC441G series. Type: RF Amplifier Cut Strip is the packaging method for this product SMD/SMT Mounting-Style SMT-8 This product's 7GHz ~ 15.5GHz range is 0Hz to 2.2GHz. GaAs is the technology used. Frequency Bandwidth: 7 GHz to 15.5 GHz Number of channels: 1 Channel Voltage Supply Range: 5V Supplier device package: 8-SMT (5.08x5.08) This product has a 90mA of 200μA. The device offers a 15dB of 26dB. The amplifier is of Power type. Test-Frequency is 12.5GHz ~ 14GHz. P1dB is 20dBm RF-Type: General Purpose Power-off control: 0.67 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. 90 mA is 92 nA. The operating frequency is 15.5 GHz. NF-Noise-Figure is 4.5 dB 30 dBm OIP3 third-order intercept The 16 dB is 12 dB.

HMC441LM1 Image

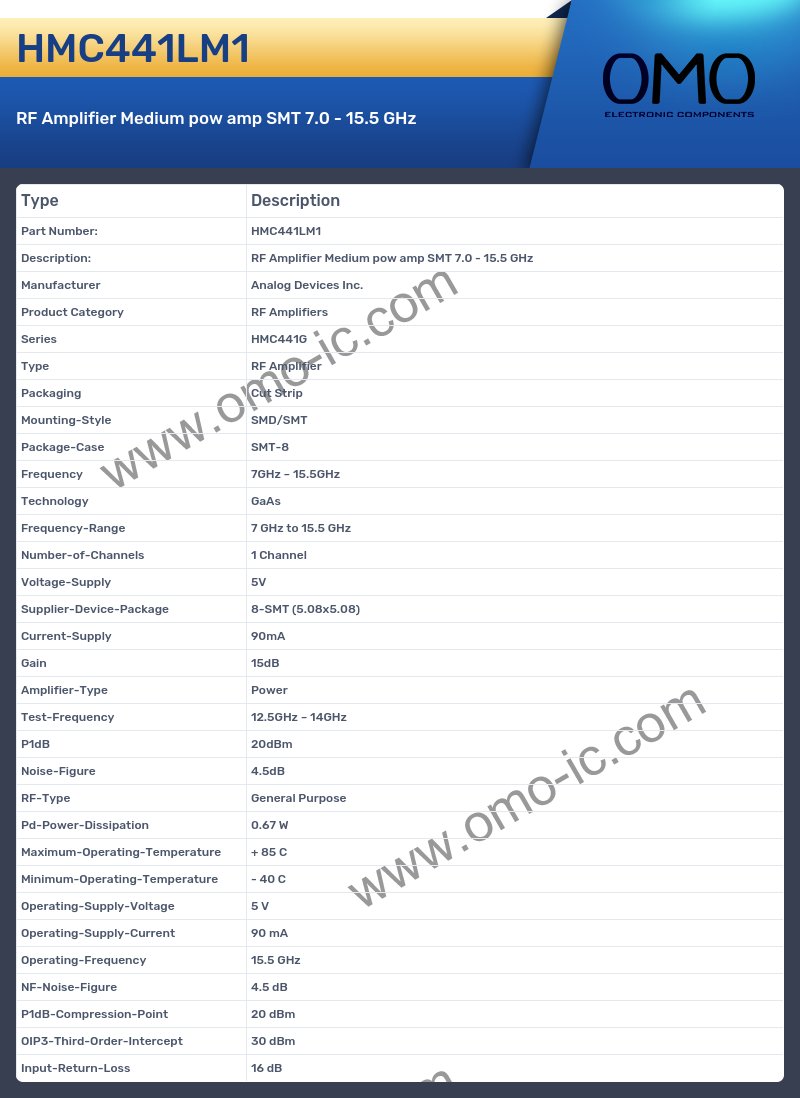

HMC441LM1 Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Amplifiers
• Series HMC441G
• Type RF Amplifier
• Packaging Cut Strip
• Mounting-Style SMD/SMT
• Package-Case SMT-8
• Frequency 7GHz ~ 15.5GHz
• Technology GaAs
• Frequency-Range 7 GHz to 15.5 GHz
• Number-of-Channels 1 Channel
• Voltage-Supply 5V
• Supplier-Device-Package 8-SMT (5.08x5.08)
• Current-Supply 90mA
• Gain 15dB
• Amplifier-Type Power
• Test-Frequency 12.5GHz ~ 14GHz
• P1dB 20dBm
• Noise-Figure 4.5dB
• RF-Type General Purpose
• Pd-Power-Dissipation 0.67 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Operating-Supply-Current 90 mA
• Operating-Frequency 15.5 GHz
• NF-Noise-Figure 4.5 dB
• P1dB-Compression-Point 20 dBm
• OIP3-Third-Order-Intercept 30 dBm
• Input-Return-Loss 16 dB
