HMC1197LP7FE

HMC1197LP7FE Overview

Product belongs to the HMC1197 series. Type: Modulator Cut Strip Alternate Packaging is the packaging method for this product Weight of 0.005309 oz SMD/SMT Mounting-Style QFN-48 Si is the technology used. Product function is Modulator. Voltage Supply Range: 3.3V, 5V This product has a 320mA of 200μA. Test-Frequency is 1.7GHz ~ 2.2GHz. P1dB is 10.5dBm Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. The 4000 MHz of this product is 25 GHz. 320 mA is 92 nA. The 100 MHz of this product is 0 Hz. GMSK QPSK QAM SSB are the supported modulation formats.

HMC1197LP7FE Image

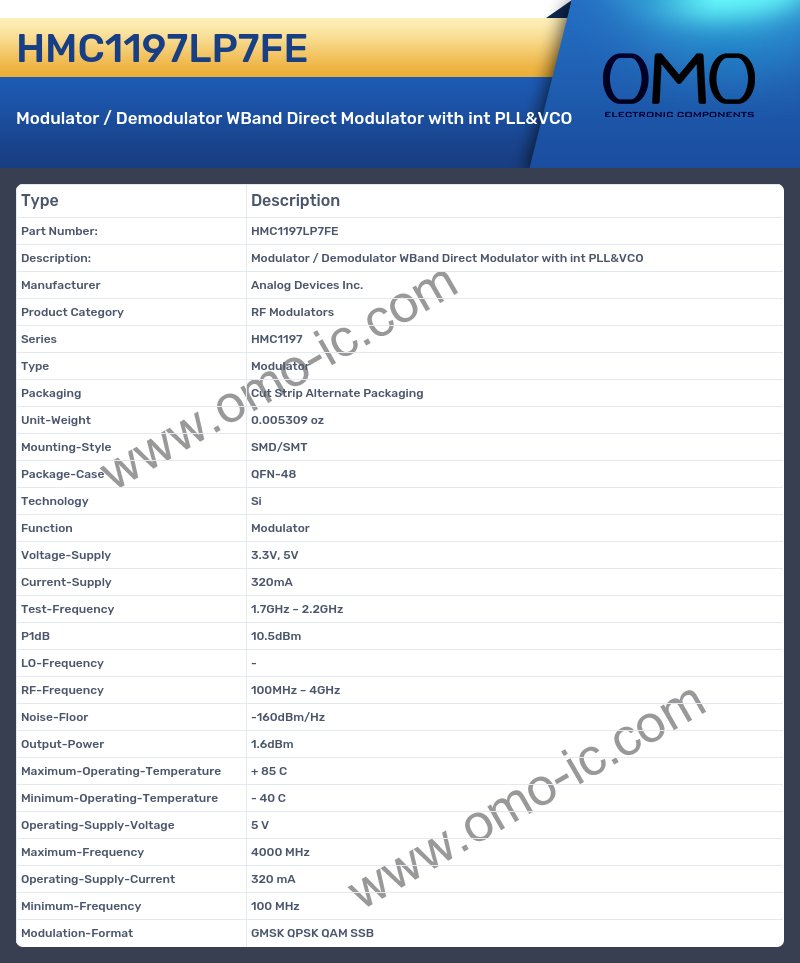

HMC1197LP7FE Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Modulators
• Series HMC1197
• Type Modulator
• Packaging Cut Strip Alternate Packaging
• Unit-Weight 0.005309 oz
• Mounting-Style SMD/SMT
• Package-Case QFN-48
• Technology Si
• Function Modulator
• Voltage-Supply 3.3V, 5V
• Current-Supply 320mA
• Test-Frequency 1.7GHz ~ 2.2GHz
• P1dB 10.5dBm
• LO-Frequency -
• RF-Frequency 100MHz ~ 4GHz
• Noise-Floor -160dBm/Hz
• Output-Power 1.6dBm
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Maximum-Frequency 4000 MHz
• Operating-Supply-Current 320 mA
• Minimum-Frequency 100 MHz
• Modulation-Format GMSK QPSK QAM SSB
