ESDALC6V1-1U2

ESDALC6V1-1U2 Overview

Product belongs to the ESDA, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Trade name: Transil. Wide - 40 C to + 125 C operating temperature range for diverse applications The Height of the product is 0.28 mm. 0.6 mm length of the product The 0.3 mm is at most 7.6 mm. 0201 (0603 Metric) Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Versatile General Purpose applications for maximum usability Supplier device package: ST0201 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 3V. The Voltage-Breakdown-Min is 6.1V. No Power-Line-Protection 12pF @ 1MHz Capacitance-Frequency Power-off control: 20 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Breakdown-Voltage: 6.1 V Clamping-Voltage: 12.2 V Polarity: Unidirectional

ESDALC6V1-1U2 Image

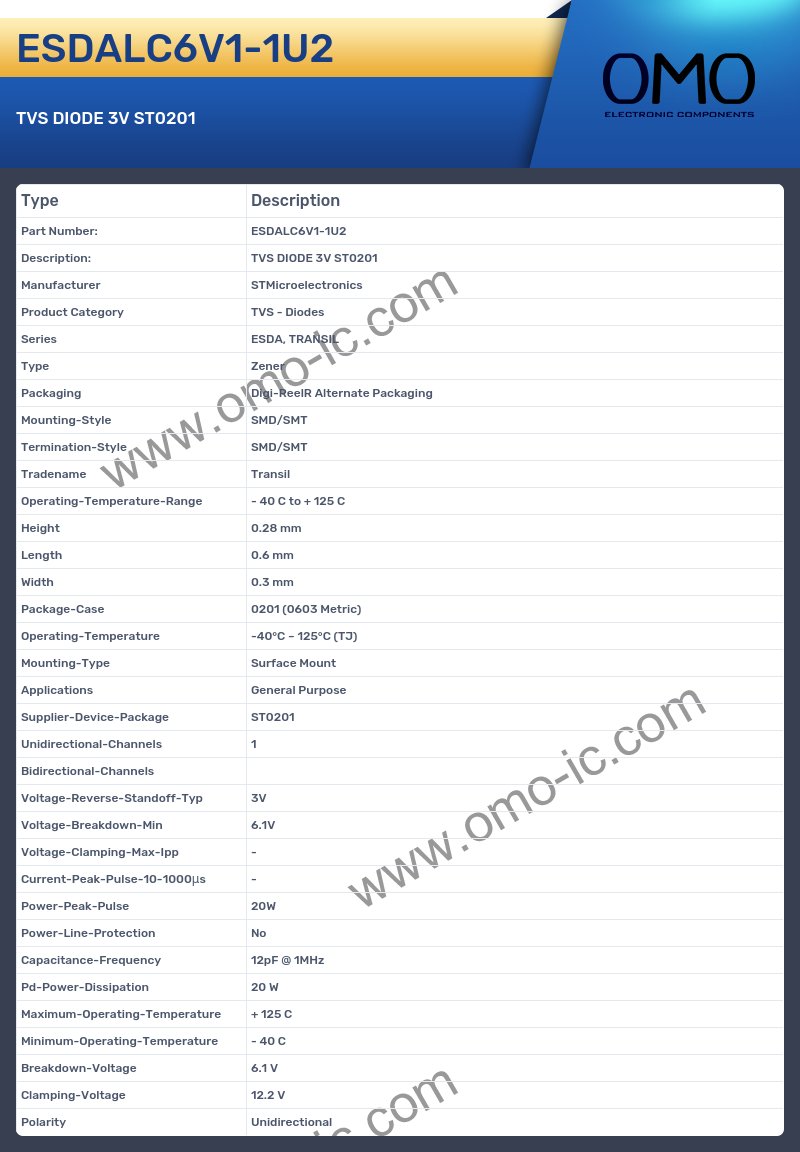

ESDALC6V1-1U2 Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series ESDA, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Termination-Style SMD/SMT
• Tradename Transil
• Operating-Temperature-Range - 40 C to + 125 C
• Height 0.28 mm
• Length 0.6 mm
• Width 0.3 mm
• Package-Case 0201 (0603 Metric)
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Applications General Purpose
• Supplier-Device-Package ST0201
• Unidirectional-Channels 1
• Bidirectional-Channels
• Voltage-Reverse-Standoff-Typ 3V
• Voltage-Breakdown-Min 6.1V
• Voltage-Clamping-Max-Ipp -
• Current-Peak-Pulse-10-1000μs -
• Power-Peak-Pulse 20W
• Power-Line-Protection No
• Capacitance-Frequency 12pF @ 1MHz
• Pd-Power-Dissipation 20 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Breakdown-Voltage 6.1 V
• Clamping-Voltage 12.2 V
• Polarity Unidirectional
