ESDALC6-4N4

ESDALC6-4N4 Overview

Product belongs to the ESDA series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. 4-XFDFN Exposed Pad Operational temperature range: - Surface Mount mounting type Versatile General Purpose applications for maximum usability Number of channels: 4 Channel Supplier device package: 4-uQFN (1x0.8) - Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 3V. The Voltage-Breakdown-Min is 6V. No Power-Line-Protection 9.5pF @ 1MHz Capacitance-Frequency Power-off control: 27 W Maximum operating temperature of + 125 C Breakdown-Voltage: 6 V Clamping-Voltage: 10 V The Cd-Diode-Capacitance is 9.5 pF 3 V working voltage Polarity: Unidirectional 1 A of IPP, Peak Pulse, and Current 8 kV of Vesd-Voltage-ESD-Contact 15 kV Vesd-Voltage-ESD-Air-Gap

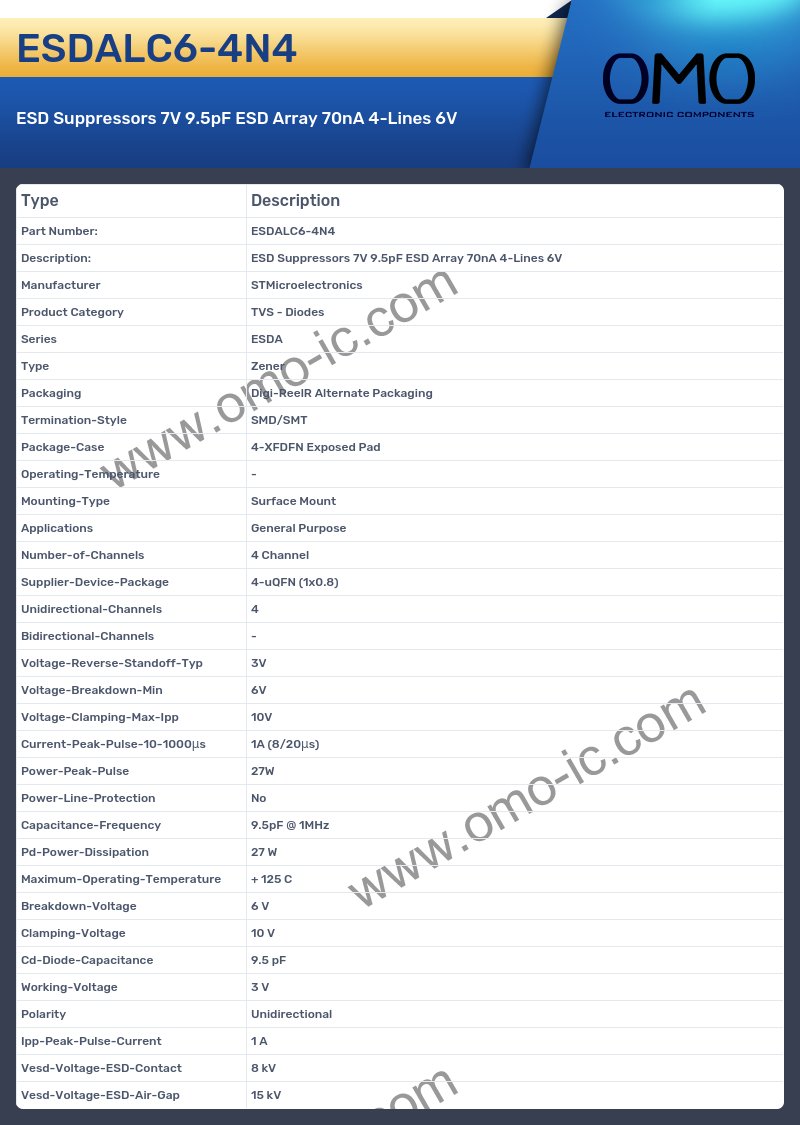

ESDALC6-4N4 Image

ESDALC6-4N4 Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series ESDA
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Package-Case 4-XFDFN Exposed Pad
• Operating-Temperature -
• Mounting-Type Surface Mount
• Applications General Purpose
• Number-of-Channels 4 Channel
• Supplier-Device-Package 4-uQFN (1x0.8)
• Unidirectional-Channels 4
• Bidirectional-Channels -
• Voltage-Reverse-Standoff-Typ 3V
• Voltage-Breakdown-Min 6V
• Voltage-Clamping-Max-Ipp 10V
• Current-Peak-Pulse-10-1000μs 1A (8/20μs)
• Power-Peak-Pulse 27W
• Power-Line-Protection No
• Capacitance-Frequency 9.5pF @ 1MHz
• Pd-Power-Dissipation 27 W
• Maximum-Operating-Temperature + 125 C
• Breakdown-Voltage 6 V
• Clamping-Voltage 10 V
• Cd-Diode-Capacitance 9.5 pF
• Working-Voltage 3 V
• Polarity Unidirectional
• Ipp-Peak-Pulse-Current 1 A
• Vesd-Voltage-ESD-Contact 8 kV
• Vesd-Voltage-ESD-Air-Gap 15 kV
