ESDA25W5

ESDA25W5 Overview

Product belongs to the ESDA, TRANSIL series. Type: Zener Cut Tape (CT) Alternate Packaging is the packaging method for this product Weight of 0.000190 oz This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Trade name: Transil. 5-TSSOP, SC-70-5, SOT-353 Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Versatile General Purpose applications for maximum usability Number of channels: 2 Channel Supplier device package: SOT-323-5 - Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 24V. The Voltage-Breakdown-Min is 25V. No Power-Line-Protection - Capacitance-Frequency Power-off control: 150 W Maximum operating temperature of + 125 C Breakdown-Voltage: 25 V The Cd-Diode-Capacitance is 30 pF 24 V working voltage Polarity: Unidirectional 8 kV of Vesd-Voltage-ESD-Contact 15 kV Vesd-Voltage-ESD-Air-Gap This product operates at a 24 V supply voltage for reliable performance.

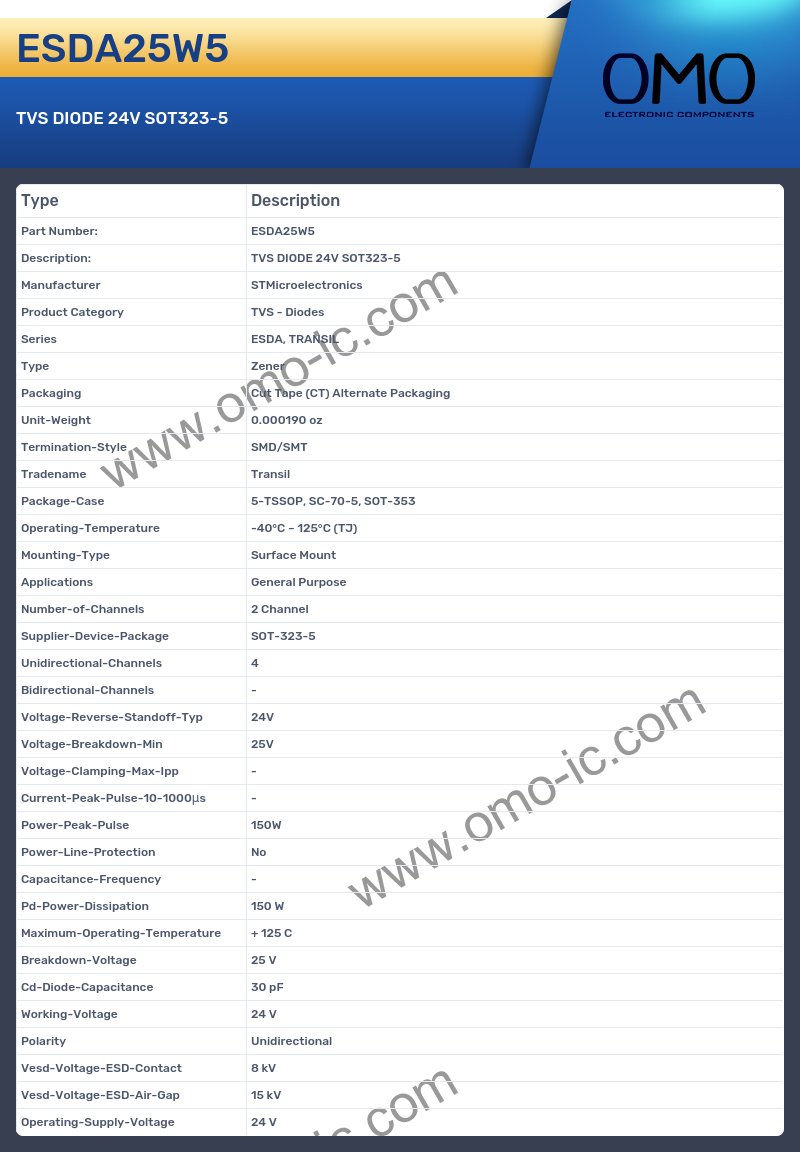

ESDA25W5 Image

ESDA25W5 Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series ESDA, TRANSIL
• Type Zener
• Packaging Cut Tape (CT) Alternate Packaging
• Unit-Weight 0.000190 oz
• Termination-Style SMD/SMT
• Tradename Transil
• Package-Case 5-TSSOP, SC-70-5, SOT-353
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Applications General Purpose
• Number-of-Channels 2 Channel
• Supplier-Device-Package SOT-323-5
• Unidirectional-Channels 4
• Bidirectional-Channels -
• Voltage-Reverse-Standoff-Typ 24V
• Voltage-Breakdown-Min 25V
• Voltage-Clamping-Max-Ipp -
• Current-Peak-Pulse-10-1000μs -
• Power-Peak-Pulse 150W
• Power-Line-Protection No
• Capacitance-Frequency -
• Pd-Power-Dissipation 150 W
• Maximum-Operating-Temperature + 125 C
• Breakdown-Voltage 25 V
• Cd-Diode-Capacitance 30 pF
• Working-Voltage 24 V
• Polarity Unidirectional
• Vesd-Voltage-ESD-Contact 8 kV
• Vesd-Voltage-ESD-Air-Gap 15 kV
• Operating-Supply-Voltage 24 V
