ESDA18-1F2

ESDA18-1F2 Overview

Product belongs to the ESDA, TRANSIL series. Type: Zener Tape & Reel (TR) is the packaging method for this product SMD/SMT Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Trade name: Transil. The Height of the product is 650 um. 0.92 mm length of the product The 0.92 mm is at most 7.6 mm. 4-WFBGA, FCBGA Operational temperature range: - Surface Mount mounting type Versatile General Purpose applications for maximum usability Supplier device package: 4-FlipChip - Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 10V. The Voltage-Breakdown-Min is 16V. No Power-Line-Protection - Capacitance-Frequency Power-off control: 700 W Maximum operating temperature of + 125 C Breakdown-Voltage: 18 V Clamping-Voltage: 20 V 8 A Peak Surge Current 10 V working voltage Polarity: Unidirectional

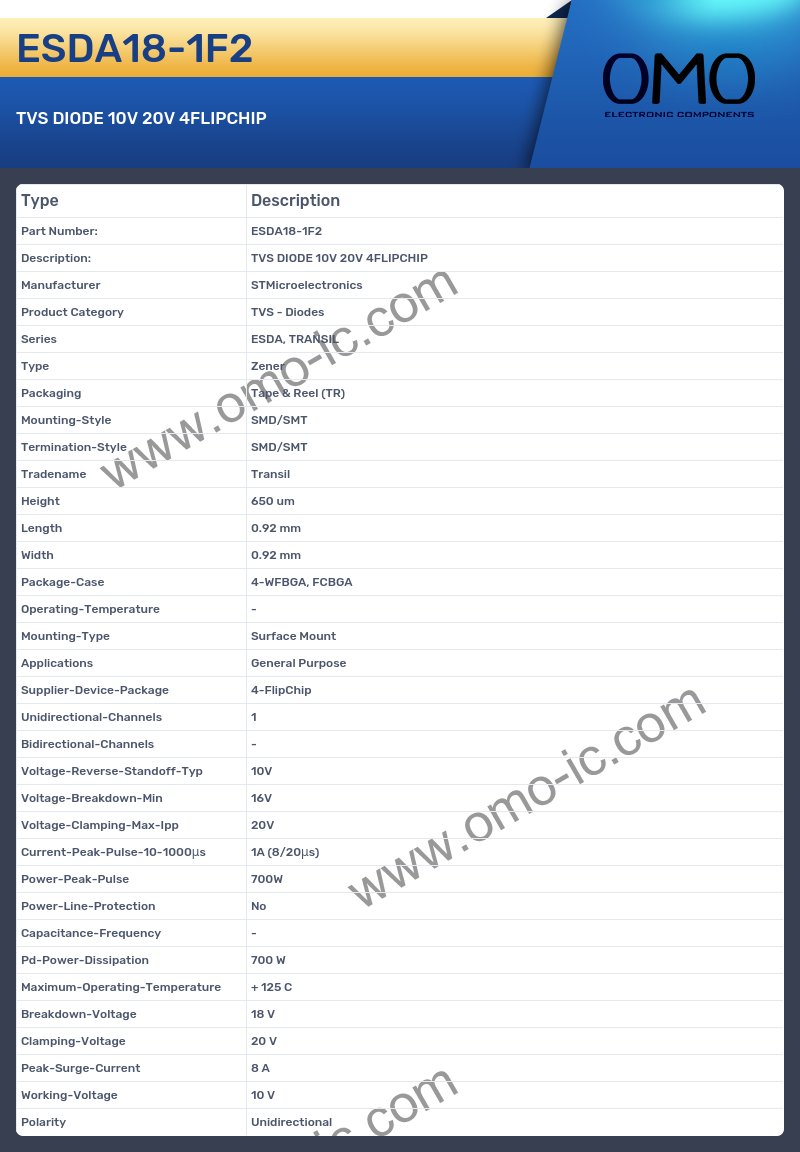

ESDA18-1F2 Image

ESDA18-1F2 Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series ESDA, TRANSIL
• Type Zener
• Packaging Tape & Reel (TR)
• Mounting-Style SMD/SMT
• Termination-Style SMD/SMT
• Tradename Transil
• Height 650 um
• Length 0.92 mm
• Width 0.92 mm
• Package-Case 4-WFBGA, FCBGA
• Operating-Temperature -
• Mounting-Type Surface Mount
• Applications General Purpose
• Supplier-Device-Package 4-FlipChip
• Unidirectional-Channels 1
• Bidirectional-Channels -
• Voltage-Reverse-Standoff-Typ 10V
• Voltage-Breakdown-Min 16V
• Voltage-Clamping-Max-Ipp 20V
• Current-Peak-Pulse-10-1000μs 1A (8/20μs)
• Power-Peak-Pulse 700W
• Power-Line-Protection No
• Capacitance-Frequency -
• Pd-Power-Dissipation 700 W
• Maximum-Operating-Temperature + 125 C
• Breakdown-Voltage 18 V
• Clamping-Voltage 20 V
• Peak-Surge-Current 8 A
• Working-Voltage 10 V
• Polarity Unidirectional
